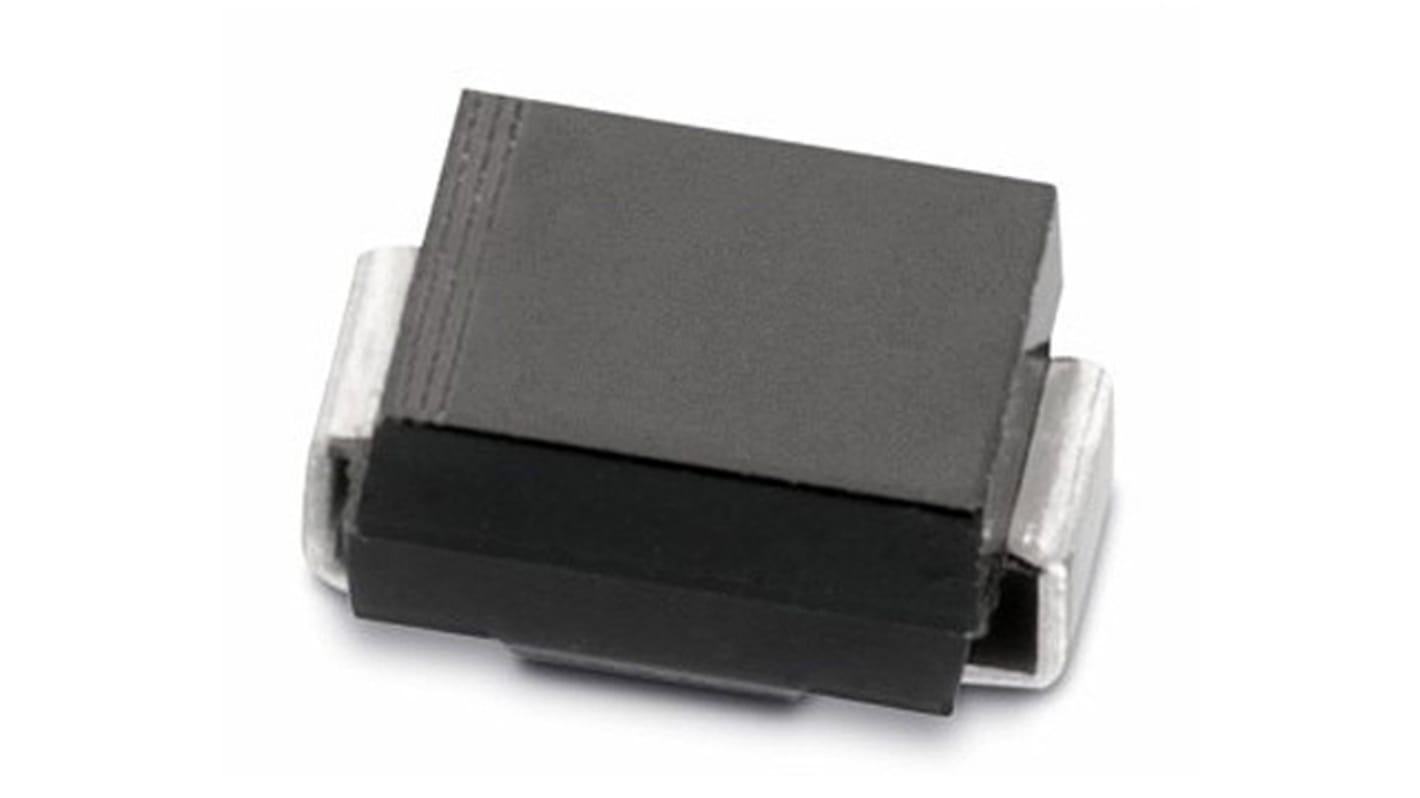

Wurth Elektronik 1-Element Bi-Directional TVS Diode, 600 W, 2-Pin DO-214

View all TVS Diodes

Subtotal (1 reel of 500 units)*

£106.00

(exc. VAT)

£127.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 10 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
500 +£0.212£106.00

*price indicative

Development Kit Box with a flash stating "Win"
Win A Würth Elektronik Lighting Development Kit
Spend as little as £1 and win a Würth Elektronik Lighting Kit, complete with exclusive follow-up technical support from the experts themselves. Promotion ends 30th November 2025.
Claim my Lighting Kit
RS Stock No.:
162-3958
Mfr. Part No.:
824521700
Brand:
Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all

Brand

Wurth Elektronik

Product Type

TVS Diode

Direction Type

Bi-Directional

Diode Configuration

Single

Minimum Breakdown Voltage Vbr

8.19V

Mount Type

Surface

Package Type

DO-214

Pin Count

2

Peak Pulse Power Dissipation Pppm

600W

Test Current It

10mA

Maximum Peak Pulse Current Ippm

50A

Minimum Operating Temperature

-65°C

Clamping Voltage VC

12V

Number of Elements per Chip

1

Maximum Operating Temperature

150°C

Standards/Approvals

No

Series

WE-TVSP

Length

4.32mm

Width

3.62 mm

Height

2.3mm

Maximum Reverse Leakage Current

400μA

Automotive Standard

No

COO (Country of Origin):
CN

Bidirectional TVS Diodes, 600W, Wurth Elektronik


The Wurth Elektronik 600 W Bidirectional Power TVS Diodes are available in a range of operating voltages from 5 V dc up to 100 V dc.

- Low profile package

- Glass passivated junction

- Fast response time

Transient Voltage Suppressors, Wurth Elektronik
