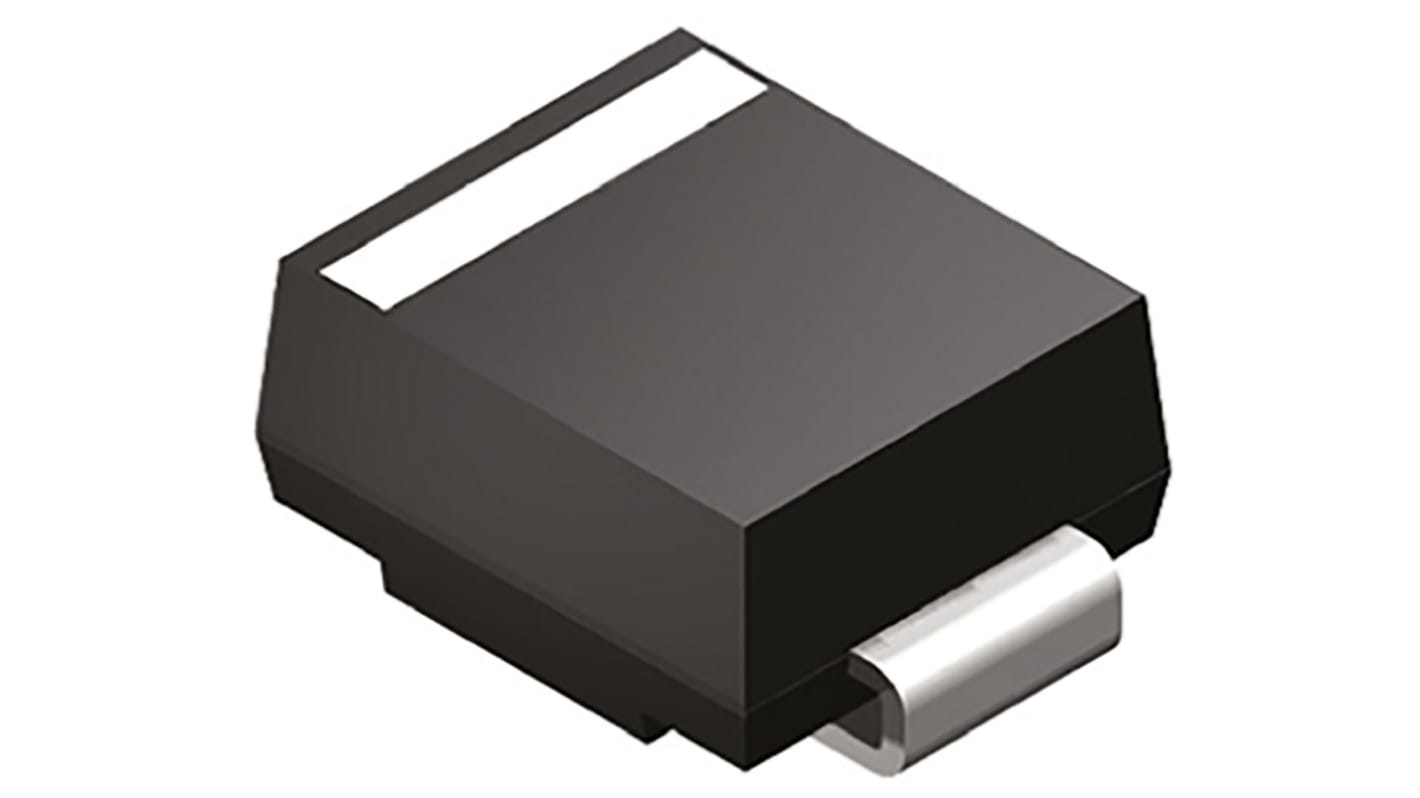

Bourns ACTP250J1BJR-S, Bi-Directional TVS Diode, 2-Pin DO214AA
- RS Stock No.:
- 126-1747
- Mfr. Part No.:
- ACTP250J1BJR-S
- Brand:
- Bourns
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 126-1747
- Mfr. Part No.:
- ACTP250J1BJR-S
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Direction Type | Bi-Directional | |
| Diode Configuration | Single | |
| Minimum Breakdown Voltage | ±250V | |
| Mounting Type | Surface Mount | |
| Package Type | DO214AA | |
| Maximum Reverse Stand-off Voltage | 190V | |
| Pin Count | 2 | |
| Maximum Peak Pulse Current | 1000A | |
| Number of Elements per Chip | 1 | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +150 °C | |
| Dimensions | 4.57 x 3.94 x 2.23mm | |
| Length | 4.57mm | |
| Capacitance | 125pF | |
| Test Current | ±5A | |
| Width | 3.94mm | |
| Height | 2.23mm | |
| Priced to Clear | Yes | |
Select all | ||
|---|---|---|
Brand Bourns | ||
Direction Type Bi-Directional | ||
Diode Configuration Single | ||
Minimum Breakdown Voltage ±250V | ||
Mounting Type Surface Mount | ||
Package Type DO214AA | ||
Maximum Reverse Stand-off Voltage 190V | ||
Pin Count 2 | ||
Maximum Peak Pulse Current 1000A | ||
Number of Elements per Chip 1 | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +150 °C | ||
Dimensions 4.57 x 3.94 x 2.23mm | ||
Length 4.57mm | ||
Capacitance 125pF | ||
Test Current ±5A | ||
Width 3.94mm | ||
Height 2.23mm | ||
Priced to Clear Yes | ||
Thyristor Overvoltage Protectors, Bourns Electronics
Bidirectional thyristor devices designed to be used in series with an overvoltage clamp device, such as an MOV, to protect power supplies from damage due to ac input line overvoltage conditions.
Transient Voltage Suppressors, Bourns Electronics
