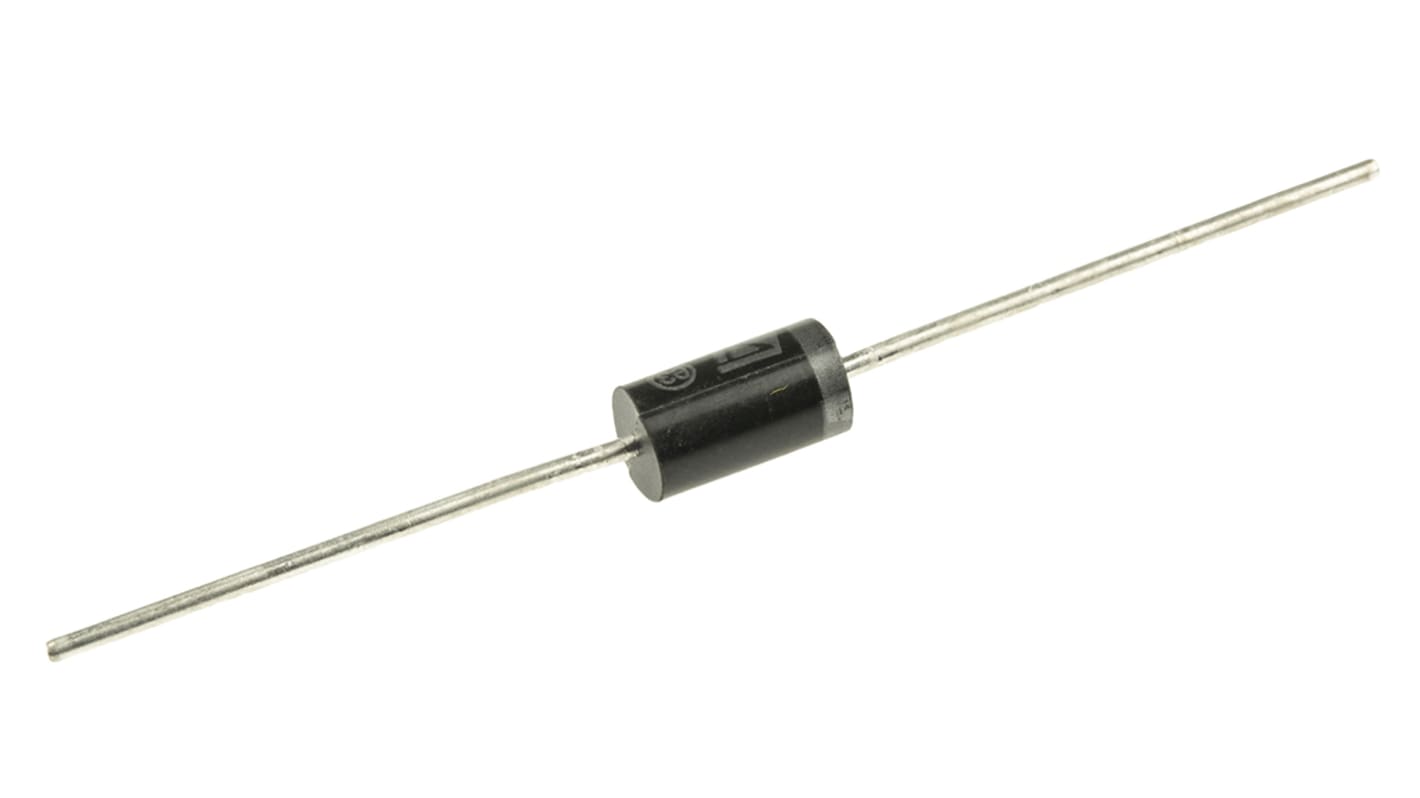

STMicroelectronics 1-Element Uni-Directional TVS Diode, 1.5 kW, 2-Pin DO-201

View all TVS Diodes

Subtotal (1 bag of 600 units)*

£183.00

(exc. VAT)

£219.60

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 600 unit(s) shipping from 25 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Bag*
600 +£0.305£183.00

*price indicative

RS Stock No.:
102-6708
Mfr. Part No.:
1.5KE400A
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Product Type

TVS Diode

Direction Type

Uni-Directional

Diode Configuration

Single

Minimum Breakdown Voltage Vbr

380V

Mount Type

Through Hole

Package Type

DO-201

Maximum Reverse Stand-off Voltage Vwm

342V

Pin Count

2

Peak Pulse Power Dissipation Pppm

1.5kW

ESD Protection

No

Maximum Peak Pulse Current Ippm

14A

Test Current It

1mA

Minimum Operating Temperature

-65°C

Clamping Voltage VC

706V

Maximum Operating Temperature

175°C

Number of Elements per Chip

1

Diameter

5.3 mm

Height

5.3mm

Standards/Approvals

No

Width

5.3 mm

Length

9.5mm

Series

1.5KE

Automotive Standard

No

Maximum Reverse Leakage Current

1μA

Transil™ TVS Axial Unidirectional 1500W, STMicroelectronics


Transient Voltage Suppressors, STMicroelectronics
