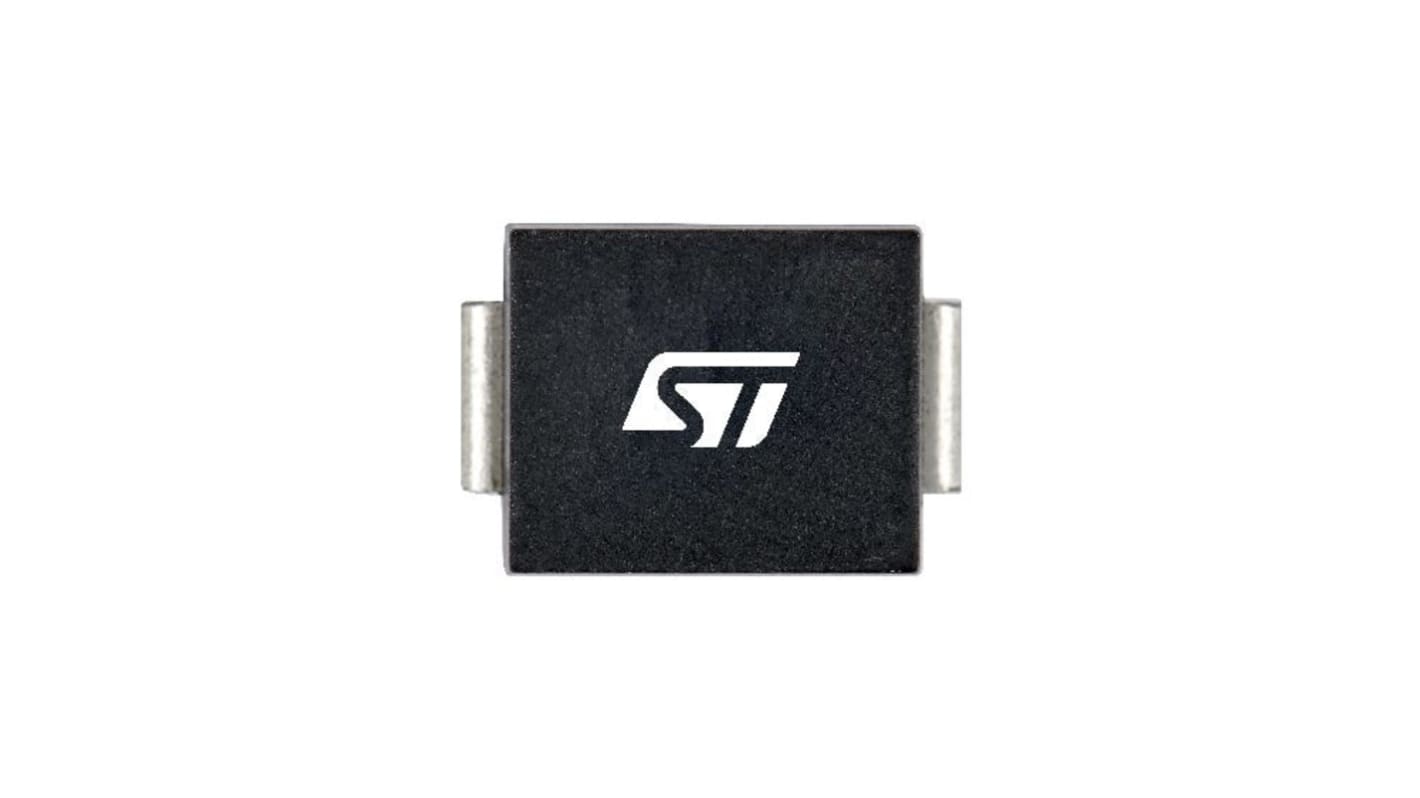

STMicroelectronics SMC50J24CA 1-Element Bi-Directional, Uni-Directional TVS Diode, 5000 W, 2-Pin DO-214AB
- RS Stock No.:
- 152-119
- Mfr. Part No.:
- SMC50J24CA
- Brand:
- STMicroelectronics
Subtotal (1 reel of 2500 units)*
£1,587.50
(exc. VAT)
£1,905.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 13 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £0.635 | £1,587.50 |
*price indicative
- RS Stock No.:
- 152-119
- Mfr. Part No.:
- SMC50J24CA
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | TVS Diode | |
| Direction Type | Bi-Directional, Uni-Directional | |
| Diode Configuration | Single Bi-Directional | |
| Minimum Breakdown Voltage Vbr | 26.7V | |
| Mount Type | Surface | |
| Package Type | DO-214AB (SMC) | |
| Pin Count | 2 | |
| Peak Pulse Power Dissipation Pppm | 5000W | |
| ESD Protection | Yes | |
| Minimum Operating Temperature | -55°C | |
| Clamping Voltage VC | 72.9V | |
| Number of Elements per Chip | 1 | |
| Maximum Operating Temperature | 175°C | |
| Series | SMC50J | |
| Length | 6.25mm | |
| Height | 2.45mm | |
| Standards/Approvals | IEC 61000-4-4, J-STD-002, UL94 V0, MIL-STD-750 Method 2026, IEC 61000-4-2, JESD-201 Class 2, J-STD-020, JESD 22-B102 E3 | |
| Automotive Standard | No | |
| Maximum Reverse Leakage Current | 0.2μA | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type TVS Diode | ||
Direction Type Bi-Directional, Uni-Directional | ||
Diode Configuration Single Bi-Directional | ||
Minimum Breakdown Voltage Vbr 26.7V | ||
Mount Type Surface | ||
Package Type DO-214AB (SMC) | ||
Pin Count 2 | ||
Peak Pulse Power Dissipation Pppm 5000W | ||
ESD Protection Yes | ||
Minimum Operating Temperature -55°C | ||
Clamping Voltage VC 72.9V | ||
Number of Elements per Chip 1 | ||
Maximum Operating Temperature 175°C | ||
Series SMC50J | ||
Length 6.25mm | ||
Height 2.45mm | ||
Standards/Approvals IEC 61000-4-4, J-STD-002, UL94 V0, MIL-STD-750 Method 2026, IEC 61000-4-2, JESD-201 Class 2, J-STD-020, JESD 22-B102 E3 | ||
Automotive Standard No | ||
Maximum Reverse Leakage Current 0.2μA | ||
The STMicroelectronics TVS diodes are designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2, MIL STD 883 Method 3015, and electrical overstress such as IEC 61000-4-4 and 5. This Planar technology makes it compatible with high end equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time.
Unidirectional and bidirectional types
JEDEC registered package outline
Matte tin plating lead finishing
Complies with UL94 V0 and J-STD-020 MSL level 1
