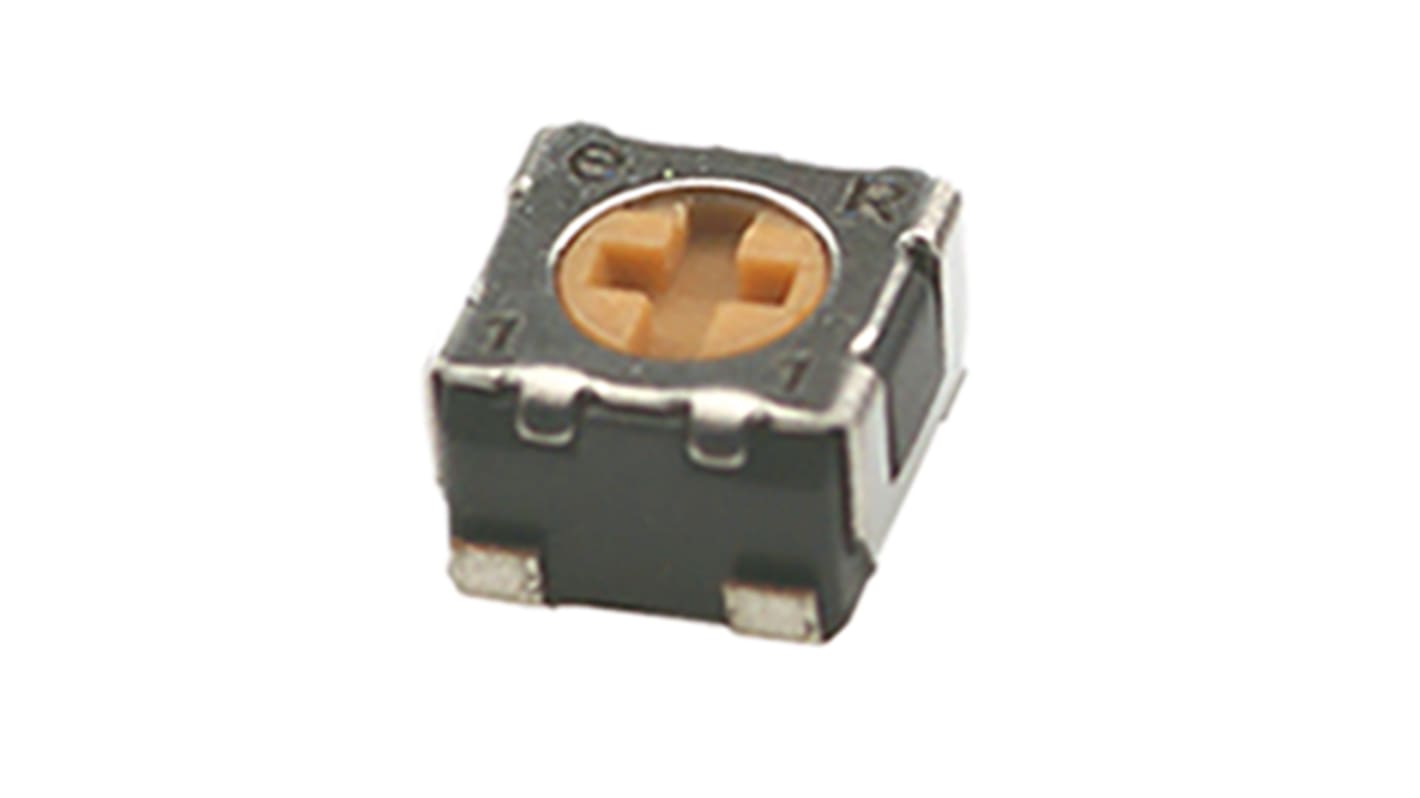

50 kΩ, Surface Trimmer Potentiometer, Solder Pin 0.13 W Top Adjust Nidec Components, ST-32
- RS Stock No.:
- 896-7131
- Mfr. Part No.:
- ST-32EA 50kR
- Brand:
- Nidec Components
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 896-7131
- Mfr. Part No.:
- ST-32EA 50kR
- Brand:
- Nidec Components
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nidec Components | |
| Maximum Resistance | 50kΩ | |
| Product Type | Trimmer Potentiometer | |
| Mount Type | Surface | |
| Number of Turns | 1 | |
| Orientation | Top Adjust | |
| Packaging | Tape & Reel | |
| Power Rating | 0.13W | |
| Series | ST-32 | |
| Automotive Standard | No | |
| Termination Style | Solder Pin | |
| Tolerance ± | 20% | |
| Temperature Coefficient | ±100 ppm/°C | |
| Minimum Operating Temperature | -55°C | |
| Length | 3.4mm | |
| Maximum Voltage | 79.1V | |
| Maximum Operating Temperature | 125°C | |
| Depth | 2mm | |
| Height | 3.4mm | |
| Standards/Approvals | UL, RoHS | |
| Element Material | Cermet | |
| Mechanical Rotation | 250° | |
| Select all | ||
|---|---|---|
Brand Nidec Components | ||
Maximum Resistance 50kΩ | ||
Product Type Trimmer Potentiometer | ||
Mount Type Surface | ||
Number of Turns 1 | ||
Orientation Top Adjust | ||
Packaging Tape & Reel | ||
Power Rating 0.13W | ||
Series ST-32 | ||
Automotive Standard No | ||
Termination Style Solder Pin | ||
Tolerance ± 20% | ||
Temperature Coefficient ±100 ppm/°C | ||
Minimum Operating Temperature -55°C | ||
Length 3.4mm | ||
Maximum Voltage 79.1V | ||
Maximum Operating Temperature 125°C | ||
Depth 2mm | ||
Height 3.4mm | ||
Standards/Approvals UL, RoHS | ||
Element Material Cermet | ||
Mechanical Rotation 250° | ||
- COO (Country of Origin):
- CN
Copal ST-32 Series
Professional range of Copal cermet trimmers from the ST-32 series. A key feature of the trimmers is the sealed construction. The trimmers incorporate J-Hook terminals.
Rotor with cross slot
Leaded terminals
J-Hook terminals
Sealed
