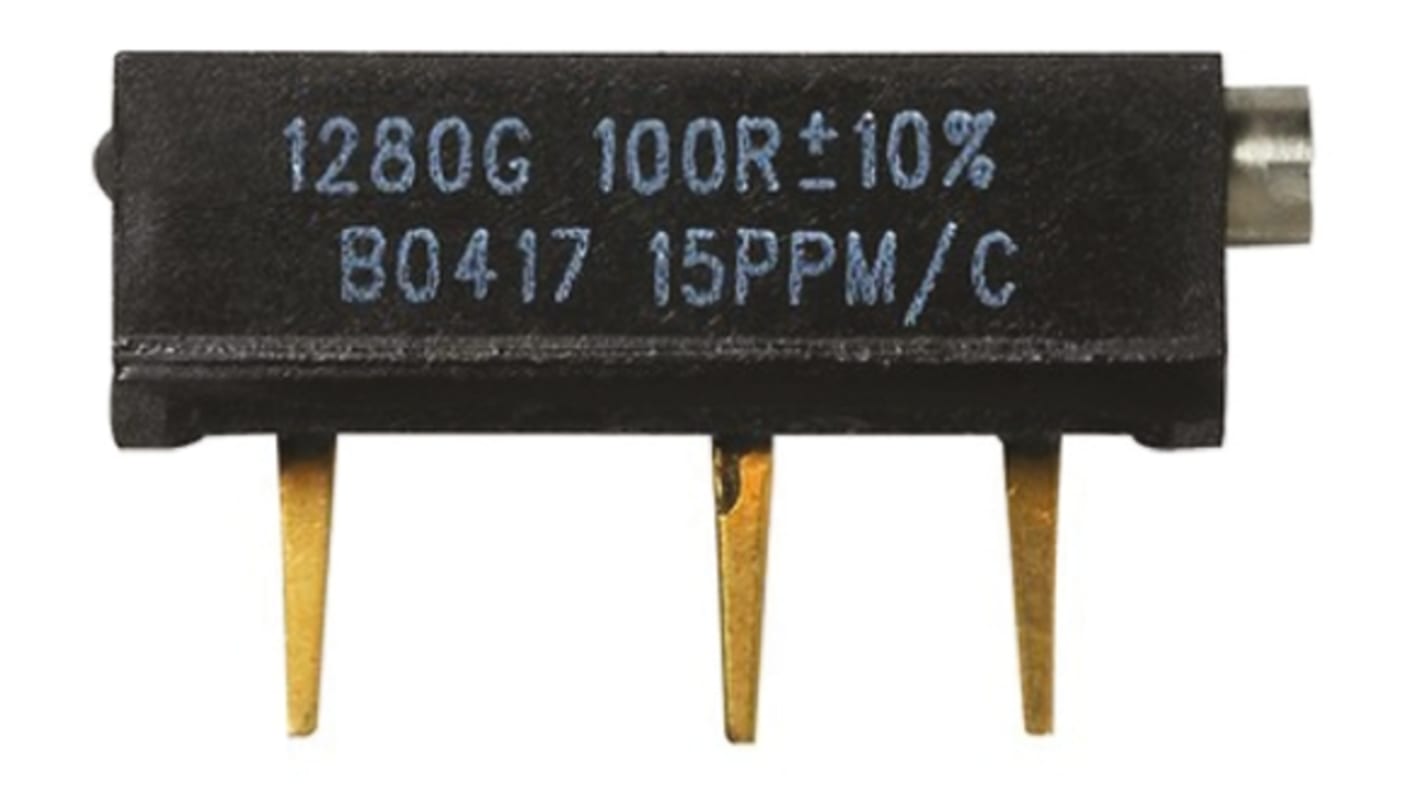

500 Ω, Through Hole Trimmer Potentiometer, Solder Pin 0.75 W Side Adjust VPG Foil Resistors, 1280 g
- RS Stock No.:
- 763-7182
- Mfr. Part No.:
- Y0056500R000K0L
- Brand:
- VPG Foil Resistors
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 763-7182
- Mfr. Part No.:
- Y0056500R000K0L
- Brand:
- VPG Foil Resistors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | VPG Foil Resistors | |
| Product Type | Trimmer Potentiometer | |
| Maximum Resistance | 500Ω | |
| Mount Type | Through Hole | |
| Number of Turns | 26 | |
| Packaging | Tube | |
| Orientation | Side Adjust | |
| Power Rating | 0.75W | |
| Series | 1280 g | |
| Automotive Standard | No | |
| Termination Style | Solder Pin | |
| Tolerance ± | 10% | |
| Temperature Coefficient | ±15 ppm/°C | |
| Minimum Operating Temperature | -55°C | |
| Pin Count | 3 | |
| Length | 19.05mm | |
| Shaft Diameter | 2.79mm | |
| Maximum Voltage | 600V | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | RoHS | |
| Element Material | Cermet | |
| Mechanical Rotation | 26Cycles | |
| Select all | ||
|---|---|---|
Brand VPG Foil Resistors | ||
Product Type Trimmer Potentiometer | ||
Maximum Resistance 500Ω | ||
Mount Type Through Hole | ||
Number of Turns 26 | ||
Packaging Tube | ||
Orientation Side Adjust | ||
Power Rating 0.75W | ||
Series 1280 g | ||
Automotive Standard No | ||
Termination Style Solder Pin | ||
Tolerance ± 10% | ||
Temperature Coefficient ±15 ppm/°C | ||
Minimum Operating Temperature -55°C | ||
Pin Count 3 | ||
Length 19.05mm | ||
Shaft Diameter 2.79mm | ||
Maximum Voltage 600V | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals RoHS | ||
Element Material Cermet | ||
Mechanical Rotation 26Cycles | ||
Accutrim 1280G Series
Accutrim 1280G Series ultra high precision Bulk Metal Foil resistors offer proven reliability and excellent stability under different environmental conditions. This range of 3/4” rectilinear trimming potentiometers has a smooth and unidirectional output together with lead screw adjustment. Additionally it has a virtually back lash-free adjustment mechanism, enabling them to be set both quickly and accurately whilst retaining the setting precisely on target.
Design incorporates an “O” ring to prevent fluid ingress from any board cleaning operation
Gold plated terminal finish
Multi Turn - Precision
