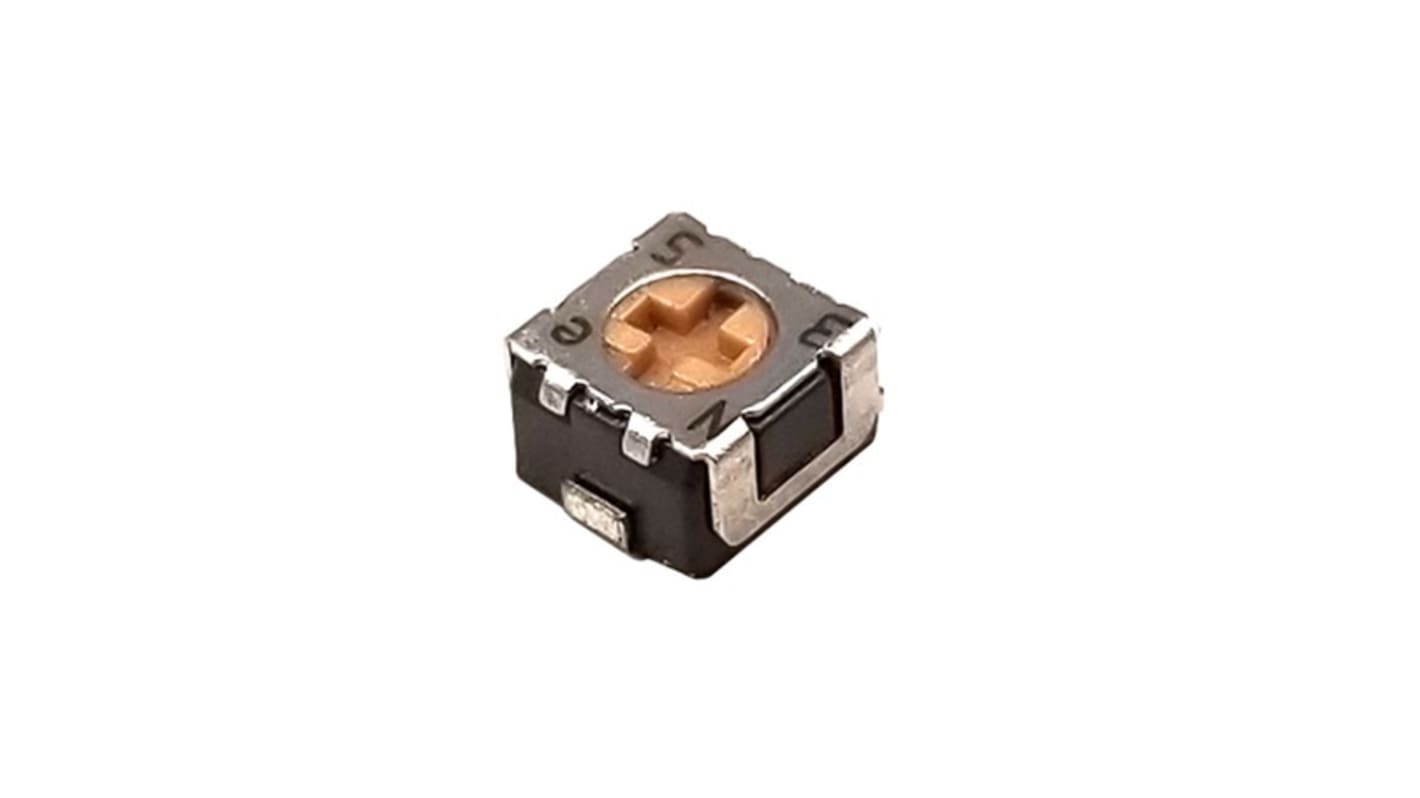

2 mΩ, Surface Mount Trimmer Potentiometer, J-Hook 0.125 W Top Adjust Nidec Components, ST-32
- RS Stock No.:
- 244-4374
- Mfr. Part No.:
- ST-32ETA503
- Brand:
- Nidec Components
Bulk discount available
Subtotal (1 tape of 5 units)*
£5.83
(exc. VAT)
£6.995
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 640 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 20 | £1.166 | £5.83 |
| 25 - 95 | £1.118 | £5.59 |
| 100 - 245 | £1.076 | £5.38 |
| 250 - 495 | £1.024 | £5.12 |
| 500 + | £0.988 | £4.94 |
*price indicative
- RS Stock No.:
- 244-4374
- Mfr. Part No.:
- ST-32ETA503
- Brand:
- Nidec Components
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nidec Components | |
| Product Type | Trimmer Potentiometer | |
| Maximum Resistance | 2mΩ | |
| Mount Type | Surface Mount | |
| Number of Turns | 1 | |
| Packaging | Tape & Reel | |
| Orientation | Top Adjust | |
| Power Rating | 0.125W | |
| Series | ST-32 | |
| Automotive Standard | No | |
| Termination Style | J-Hook | |
| Tolerance ± | 20% | |
| Temperature Coefficient | ±100 ppm/°C | |
| Minimum Operating Temperature | -55°C | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 125°C | |
| Length | 3.5mm | |
| Maximum Voltage | 200V | |
| Standards/Approvals | UL, RoHS | |
| Height | 2mm | |
| Element Material | RuO2 Cermet | |
| Mechanical Rotation | 100Cycles | |
| Select all | ||
|---|---|---|
Brand Nidec Components | ||
Product Type Trimmer Potentiometer | ||
Maximum Resistance 2mΩ | ||
Mount Type Surface Mount | ||
Number of Turns 1 | ||
Packaging Tape & Reel | ||
Orientation Top Adjust | ||
Power Rating 0.125W | ||
Series ST-32 | ||
Automotive Standard No | ||
Termination Style J-Hook | ||
Tolerance ± 20% | ||
Temperature Coefficient ±100 ppm/°C | ||
Minimum Operating Temperature -55°C | ||
Pin Count 2 | ||
Maximum Operating Temperature 125°C | ||
Length 3.5mm | ||
Maximum Voltage 200V | ||
Standards/Approvals UL, RoHS | ||
Height 2mm | ||
Element Material RuO2 Cermet | ||
Mechanical Rotation 100Cycles | ||
The NIDEC COPAL ELECTRONICS ST-32 series single turn surface mount cermet trimmer available in J hook, Gull wing and leaded terminal configurations, also has rotor with a cross slot for ease of adjustment.
RoHS compliant
Leaded terminals provide strong as adhesive strength against PCB bending
Sealed Construction
Resin materials are UL Recognized 94V-0 or 94V-1 equivalent
