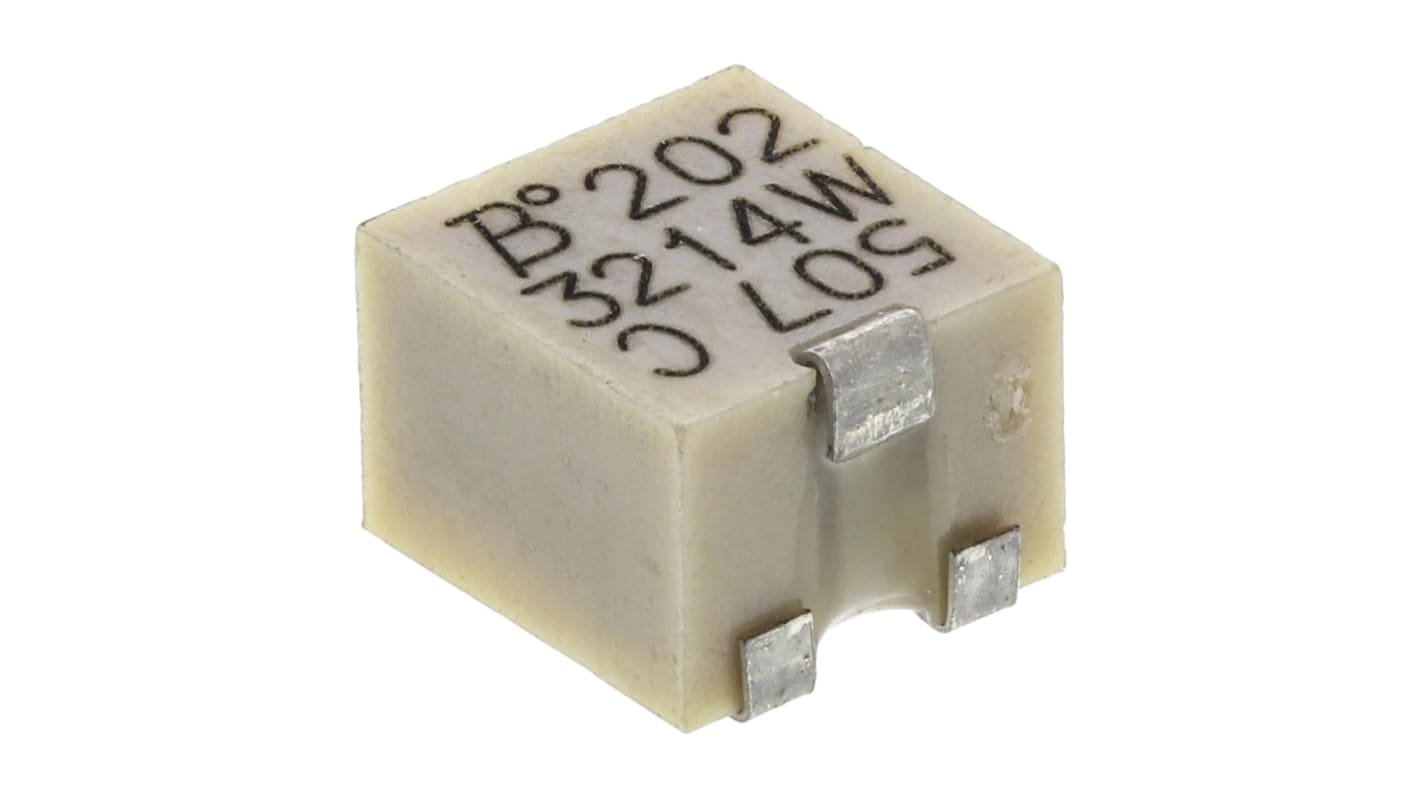

2 kΩ, Surface Mount Trimmer Potentiometer, J-Hook 0.25 W Top Adjust Bourns, 3214
- RS Stock No.:
- 240-1540
- Distrelec Article No.:
- 304-32-782
- Mfr. Part No.:
- 3214W-1-202E
- Brand:
- Bourns
Bulk discount available
Subtotal (1 pack of 5 units)*
£9.45
(exc. VAT)
£11.35
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 25 unit(s) shipping from 04 May 2026
- Plus 115 unit(s) shipping from 11 May 2026
- Plus 500 unit(s) shipping from 31 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £1.89 | £9.45 |
| 50 - 95 | £1.434 | £7.17 |
| 100 - 495 | £1.266 | £6.33 |
| 500 - 995 | £1.012 | £5.06 |
| 1000 + | £0.958 | £4.79 |
*price indicative
- RS Stock No.:
- 240-1540
- Distrelec Article No.:
- 304-32-782
- Mfr. Part No.:
- 3214W-1-202E
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Maximum Resistance | 2kΩ | |
| Product Type | Trimmer Potentiometer | |
| Mount Type | Surface Mount | |
| Number of Turns | 5 | |
| Orientation | Top Adjust | |
| Packaging | Tape & Reel | |
| Power Rating | 0.25W | |
| Series | 3214 | |
| Automotive Standard | No | |
| Termination Style | J-Hook | |
| Tolerance ± | 10% | |
| Temperature Coefficient | ±100 ppm/°C | |
| Minimum Operating Temperature | -65°C | |
| Shaft Length | 0.6mm | |
| Length | 4.8mm | |
| Maximum Operating Temperature | 150°C | |
| Shaft Diameter | 1.5mm | |
| Standards/Approvals | VECI SMD, RoHS, EIA, IPC, UL, EIAJ | |
| Depth | 3.9mm | |
| Height | 5.1mm | |
| Element Material | Cermet | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Maximum Resistance 2kΩ | ||
Product Type Trimmer Potentiometer | ||
Mount Type Surface Mount | ||
Number of Turns 5 | ||
Orientation Top Adjust | ||
Packaging Tape & Reel | ||
Power Rating 0.25W | ||
Series 3214 | ||
Automotive Standard No | ||
Termination Style J-Hook | ||
Tolerance ± 10% | ||
Temperature Coefficient ±100 ppm/°C | ||
Minimum Operating Temperature -65°C | ||
Shaft Length 0.6mm | ||
Length 4.8mm | ||
Maximum Operating Temperature 150°C | ||
Shaft Diameter 1.5mm | ||
Standards/Approvals VECI SMD, RoHS, EIA, IPC, UL, EIAJ | ||
Depth 3.9mm | ||
Height 5.1mm | ||
Element Material Cermet | ||
5-Turn 250mW 4mm Sealed 3214W Series
Bourns® 3214W Series 4mm Sealed 5-Turn Trimpot® Trimming Potentiometer
Miniature (nominal 4mm square case size)
Excellent mounting efficiency
Suitable for flow/reflow soldering/hand solder
Straight slot TOP adjuster
Meets standard EIA and EIAJ footprint
Multi-Turn Surface Mount Trimmers
