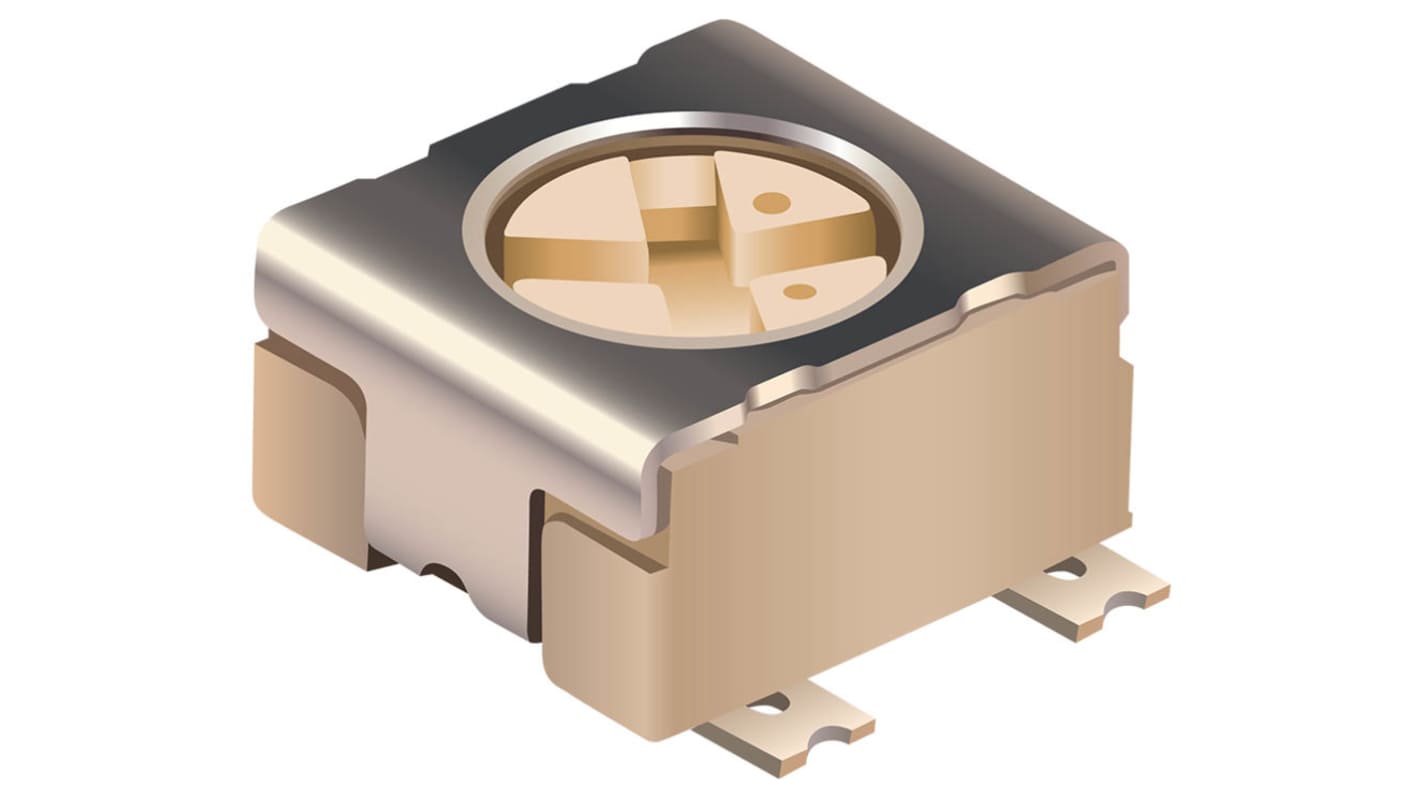

200 kΩ, Surface Mount Trimmer Potentiometer 0.25 W Top Adjust Bourns, PVG5
- RS Stock No.:
- 445-960
- Mfr. Part No.:
- PVG5A204C03R00
- Brand:
- Bourns
Bulk discount available
Subtotal (1 bag of 2 units)*
£3.64
(exc. VAT)
£4.36
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 494 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 2 - 18 | £1.82 | £3.64 |
| 20 - 98 | £1.765 | £3.53 |
| 100 - 198 | £1.71 | £3.42 |
| 200 + | £1.57 | £3.14 |
*price indicative
- RS Stock No.:
- 445-960
- Mfr. Part No.:
- PVG5A204C03R00
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Maximum Resistance | 200kΩ | |
| Product Type | Trimmer Potentiometer | |
| Mount Type | Surface Mount | |
| Number of Turns | 12 | |
| Orientation | Top Adjust | |
| Power Rating | 0.25W | |
| Series | PVG5 | |
| Automotive Standard | No | |
| Tolerance ± | 10% | |
| Temperature Coefficient | ±150 ppm/°C | |
| Pin Count | 3 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Length | 5mm | |
| Standards/Approvals | RoHS | |
| Mechanical Rotation | 12Cycles | |
| Element Material | Cermet | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Maximum Resistance 200kΩ | ||
Product Type Trimmer Potentiometer | ||
Mount Type Surface Mount | ||
Number of Turns 12 | ||
Orientation Top Adjust | ||
Power Rating 0.25W | ||
Series PVG5 | ||
Automotive Standard No | ||
Tolerance ± 10% | ||
Temperature Coefficient ±150 ppm/°C | ||
Pin Count 3 | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Length 5mm | ||
Standards/Approvals RoHS | ||
Mechanical Rotation 12Cycles | ||
Element Material Cermet | ||
The Bourns SMD Sealed Type Multiturn Trimming Potentiometer is a 5 mm square, cermet-based component designed for precise adjustments in electronic circuits. It features a sealed construction, ensuring durability and reliability in industrial applications. The potentiometer is compatible with surface-mount manufacturing processes, making it Ideal for automated assembly lines. Its rotor design allows for pre-adjustment at clockwise, counter-clockwise, or standard 50% positions, facilitating efficient calibration and tuning.
RoHS compliant
Available in both TOP and side adjustment
