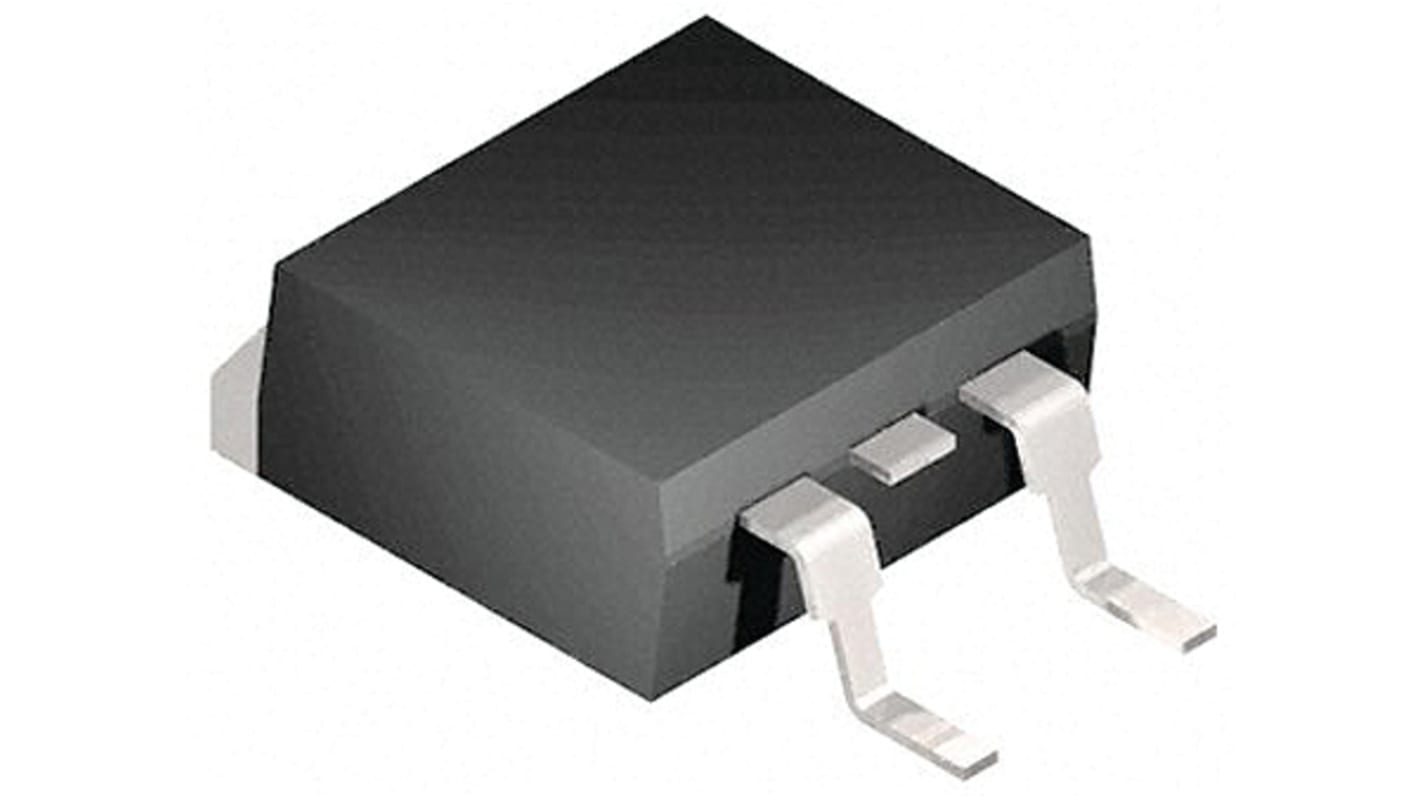

STMicroelectronics Surface Mount, 2 + Tab-pin, TRIAC, 600V, Gate Trigger 1V

View all TRIACs

Subtotal (1 reel of 1000 units)*

£895.00

(exc. VAT)

£1,074.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 23 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
1000 +£0.895£895.00

*price indicative

RS Stock No.:
163-7351
Mfr. Part No.:
T3050H-6G-TR
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Rated Average On-State Current

30A

Mounting Type

Surface Mount

Package Type

D2PAK

Maximum Gate Trigger Current

50mA

Repetitive Peak Reverse Voltage

600V

Surge Current Rating

284A

Pin Count

2 + Tab

Maximum Gate Trigger Voltage

1V

Maximum Holding Current

75mA

Dimensions

10.28 x 9.35 x 4.6mm

Length

10.28mm

Width

9.35mm

Height

4.6mm

Repetitive Peak Off-State Current

8.5mA

Minimum Operating Temperature

-40 °C

Peak On-State Voltage

1.55V

Maximum Operating Temperature

+150 °C

H-Series Triacs are 3-quadrant, AC switches with simple and low-current gate drive. They have the sparkless and non-ageing features of semiconductors ideally suited to various mains voltage appliances. The simple phase angle firing of the gate allows simple dimming for lighting and variable speeds for universal motors. Specified with a maximum junction temperature of 150C, they are particularly suited to hot environments and to PCB designs requiring high power density. The devices feature a 600 V blocking voltage and a maximum current of 30 A with standard or logic-level gate sensitivity. They are available in DPAK, IPAK, D²PAK, I²PAK or TO-220(I) packages

High current Triac
High immunity level
Low thermal resistance with clip bonding
Very high 3 quadrant commutation at 150 °C capability
