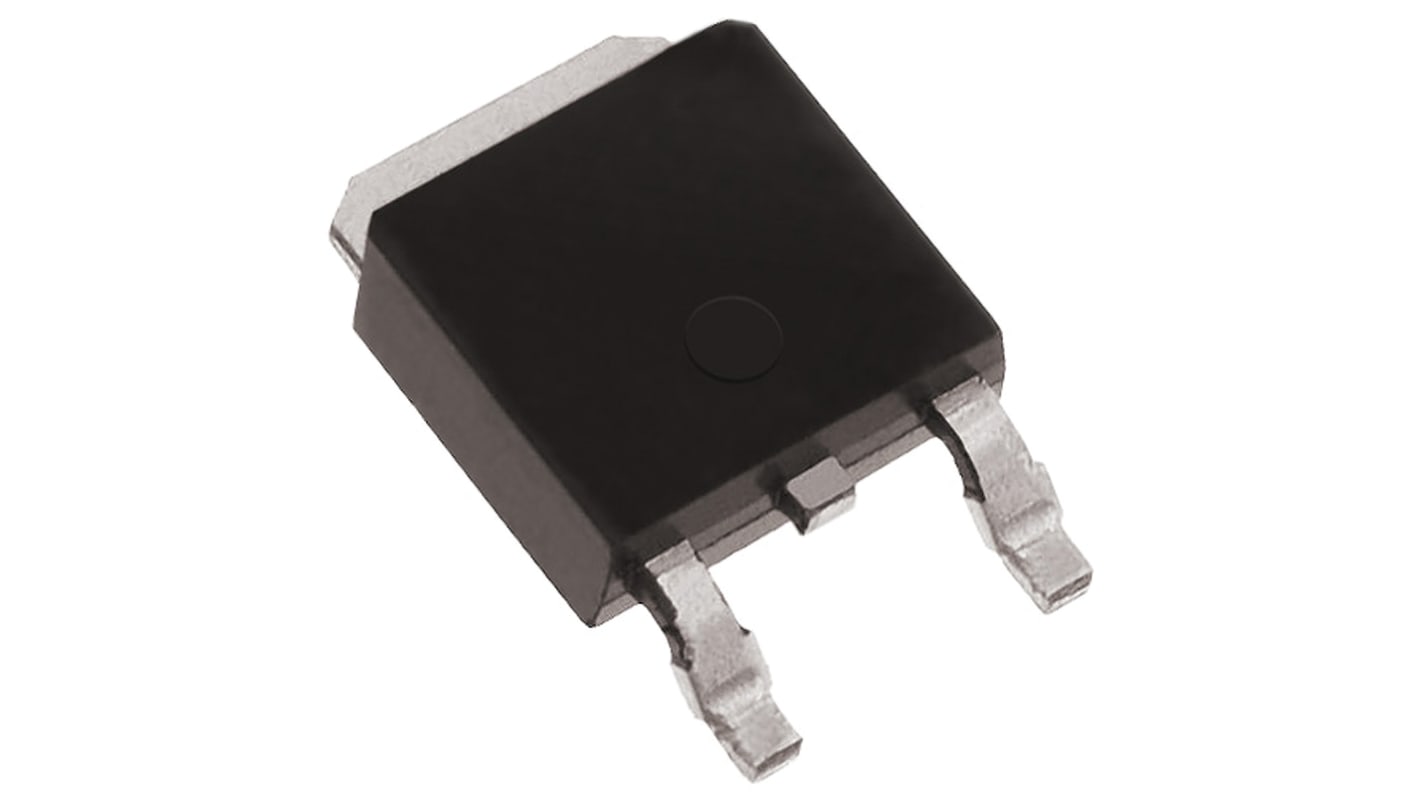

Renesas Electronics Surface Mount, 3+Tab-pin, TRIAC, 600V, Gate Trigger 1.5V 600V
- RS Stock No.:
- 121-6888
- Mfr. Part No.:
- BCR5AS-12A-T13#B00
- Brand:
- Renesas Electronics
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 121-6888
- Mfr. Part No.:
- BCR5AS-12A-T13#B00
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Rated Average On-State Current | 5A | |
| Mounting Type | Surface Mount | |
| Package Type | MP 3A | |
| Maximum Gate Trigger Current | 30mA | |
| Repetitive Peak Reverse Voltage | 600V | |
| Surge Current Rating | 50A | |
| Pin Count | 3+Tab | |
| Maximum Gate Trigger Voltage | 1.5V | |
| Repetitive Peak Forward Blocking Voltage | 600V | |
| Dimensions | 6.6 x 6.1 x 2.3mm | |
| Length | 6.6mm | |
| Width | 6.1mm | |
| Height | 2.3mm | |
| Minimum Operating Temperature | -40 °C | |
| Repetitive Peak Off-State Current | 2mA | |
| Maximum Operating Temperature | +125 °C | |
| Peak On-State Voltage | 1.8V | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Rated Average On-State Current 5A | ||
Mounting Type Surface Mount | ||
Package Type MP 3A | ||
Maximum Gate Trigger Current 30mA | ||
Repetitive Peak Reverse Voltage 600V | ||
Surge Current Rating 50A | ||
Pin Count 3+Tab | ||
Maximum Gate Trigger Voltage 1.5V | ||
Repetitive Peak Forward Blocking Voltage 600V | ||
Dimensions 6.6 x 6.1 x 2.3mm | ||
Length 6.6mm | ||
Width 6.1mm | ||
Height 2.3mm | ||
Minimum Operating Temperature -40 °C | ||
Repetitive Peak Off-State Current 2mA | ||
Maximum Operating Temperature +125 °C | ||
Peak On-State Voltage 1.8V | ||
- COO (Country of Origin):
- JP
TRIAC, Renesas Electronics
TRIACs
A range of TRIACs (Triodes for Alternating Current is also known as Bidirectional Thyristors). They are used in AC switching and control applications with current ratings from under 1A to 40A rms. A TRIAC makes a convenient switch for alternating current circuit.
