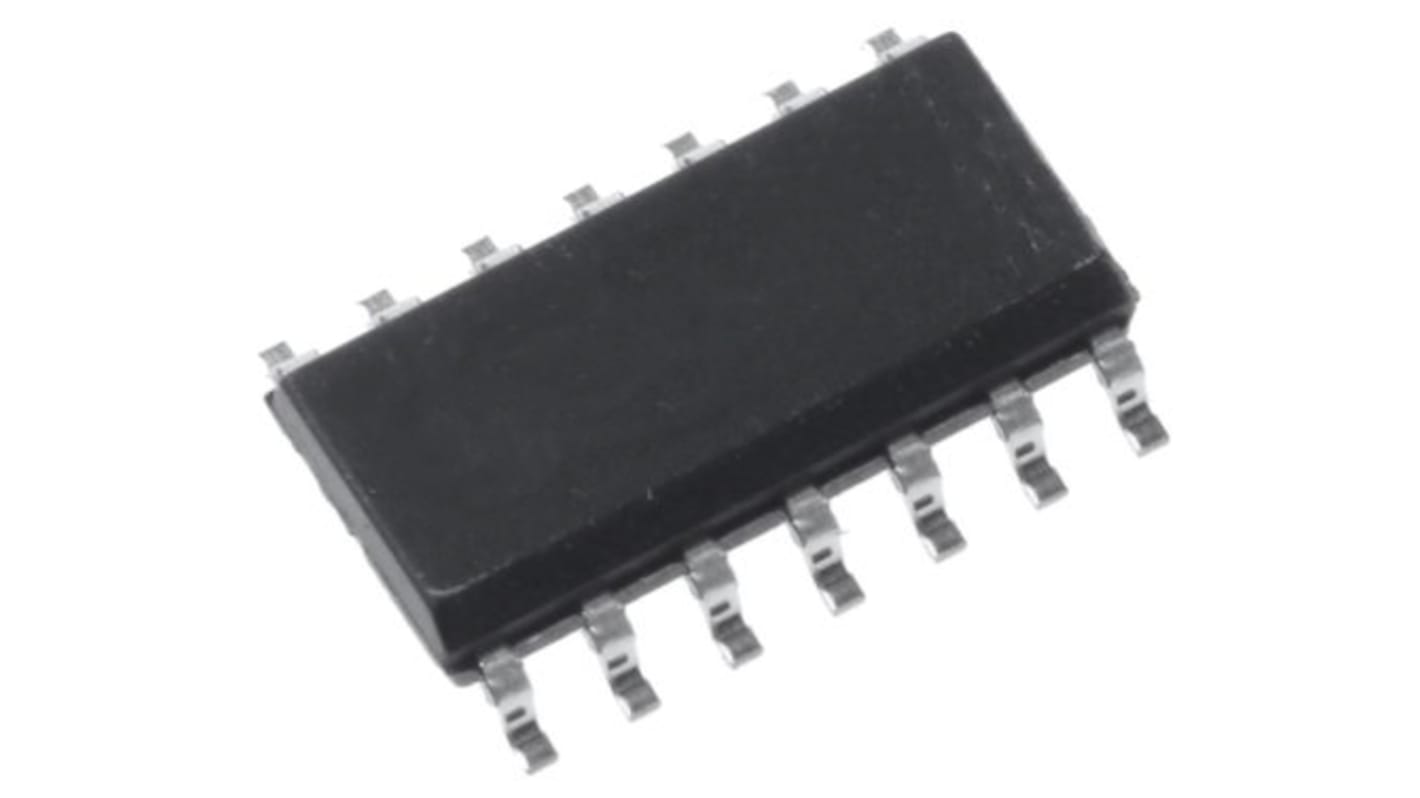

onsemi 74VHC125M, Voltage Level Shifter Buffer 1, 14-Pin SOIC
- RS Stock No.:
- 186-7251
- Mfr. Part No.:
- 74VHC125M
- Brand:
- onsemi
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 186-7251
- Mfr. Part No.:
- 74VHC125M
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Logic Family | VHC | |
| Mounting Type | Surface Mount | |
| Number of Elements per Chip | 1 | |
| Package Type | SOIC | |
| Pin Count | 14 | |
| Output Type | 3 State | |
| Logic Function | Buffer | |
| Dimensions | 8.75 x 4 x 1.5mm | |
| Maximum Low Level Output Current | 8mA | |
| Maximum High Level Output Current | -8mA | |
| Propagation Delay Test Condition | 50pF | |
| Maximum Propagation Delay Time @ Maximum CL | 13 ns @ 50 pF | |
| Maximum Operating Supply Voltage | 2 to 5.5 V | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Supply Voltage | 2 V | |
| Minimum Operating Temperature | -40 °C | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Logic Family VHC | ||
Mounting Type Surface Mount | ||
Number of Elements per Chip 1 | ||
Package Type SOIC | ||
Pin Count 14 | ||
Output Type 3 State | ||
Logic Function Buffer | ||
Dimensions 8.75 x 4 x 1.5mm | ||
Maximum Low Level Output Current 8mA | ||
Maximum High Level Output Current -8mA | ||
Propagation Delay Test Condition 50pF | ||
Maximum Propagation Delay Time @ Maximum CL 13 ns @ 50 pF | ||
Maximum Operating Supply Voltage 2 to 5.5 V | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Supply Voltage 2 V | ||
Minimum Operating Temperature -40 °C | ||
The VHC125 contains four independent non-inverting buffers with 3-STATE outputs. It is an advanced high-speed CMOS device fabricated with silicon gate CMOS technology and achieves the high-speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. An input protection circuit insures that 0V to 7V can be applied to the input pins without regard to the supply voltage. This device can be used to interface 5V to 3V systems and two supply systems such as battery backup. This circuit prevents device destruction due to mismatched supply and input voltages.
High Speed: tPD = 3.8 ns (typ) at VCC = 5V
Lower power dissipation: ICC = 4 μA (max) at TA = 25°C
High noise immunity: VNIH = VNIL = 28% VCC (min)
Power down protection is provided on all inputs
Low noise: VOLP = 0.8V (max)
Pin and function compatible with 74HC125
Applications
This product is general usage and suitable for many different applications.
Lower power dissipation: ICC = 4 μA (max) at TA = 25°C
High noise immunity: VNIH = VNIL = 28% VCC (min)
Power down protection is provided on all inputs
Low noise: VOLP = 0.8V (max)
Pin and function compatible with 74HC125
Applications
This product is general usage and suitable for many different applications.
