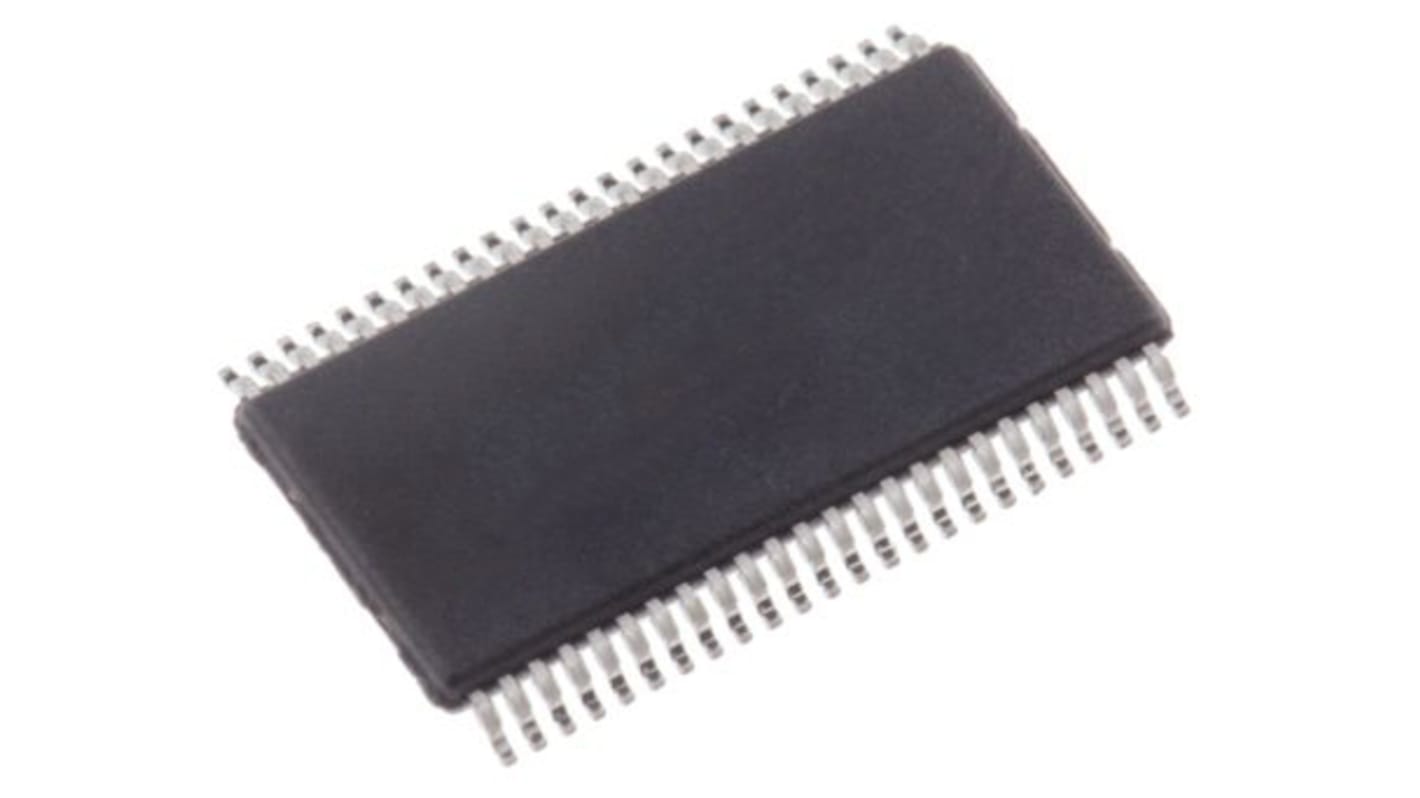

onsemi 74LCX16245MTDX, Voltage Level Shifter 1 Bi-Directional, 48-Pin TSSOP
- RS Stock No.:
- 186-7242
- Mfr. Part No.:
- 74LCX16245MTDX
- Brand:
- onsemi
Subtotal (1 reel of 1000 units)*
£674.00
(exc. VAT)
£809.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
1000 + | £0.674 | £674.00 |
*price indicative
- RS Stock No.:
- 186-7242
- Mfr. Part No.:
- 74LCX16245MTDX
- Brand:
- onsemi
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | onsemi | |
Logic Family | LCX | |
Mounting Type | Surface Mount | |
Package Type | TSSOP | |
Number of Elements per Chip | 1 | |
Pin Count | 48 | |
Output Type | 3 State | |
Dimensions | 12.5 x 6.1 x 0.9mm | |
Maximum Low Level Output Current | 24mA | |
Maximum High Level Output Current | -24mA | |
Translation | Bi-Directional | |
Propagation Delay Test Condition | 50pF | |
Maximum Propagation Delay Time @ Maximum CL | 5.2 ns @ 50 pF | |
Maximum Operating Supply Voltage | 2 to 3.6 V | |
Maximum Operating Temperature | +85 °C | |
Minimum Operating Supply Voltage | 2 V | |
Minimum Operating Temperature | -40 °C | |
Select all | ||
---|---|---|
Brand onsemi | ||
Logic Family LCX | ||
Mounting Type Surface Mount | ||
Package Type TSSOP | ||
Number of Elements per Chip 1 | ||
Pin Count 48 | ||
Output Type 3 State | ||
Dimensions 12.5 x 6.1 x 0.9mm | ||
Maximum Low Level Output Current 24mA | ||
Maximum High Level Output Current -24mA | ||
Translation Bi-Directional | ||
Propagation Delay Test Condition 50pF | ||
Maximum Propagation Delay Time @ Maximum CL 5.2 ns @ 50 pF | ||
Maximum Operating Supply Voltage 2 to 3.6 V | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Supply Voltage 2 V | ||
Minimum Operating Temperature -40 °C | ||
