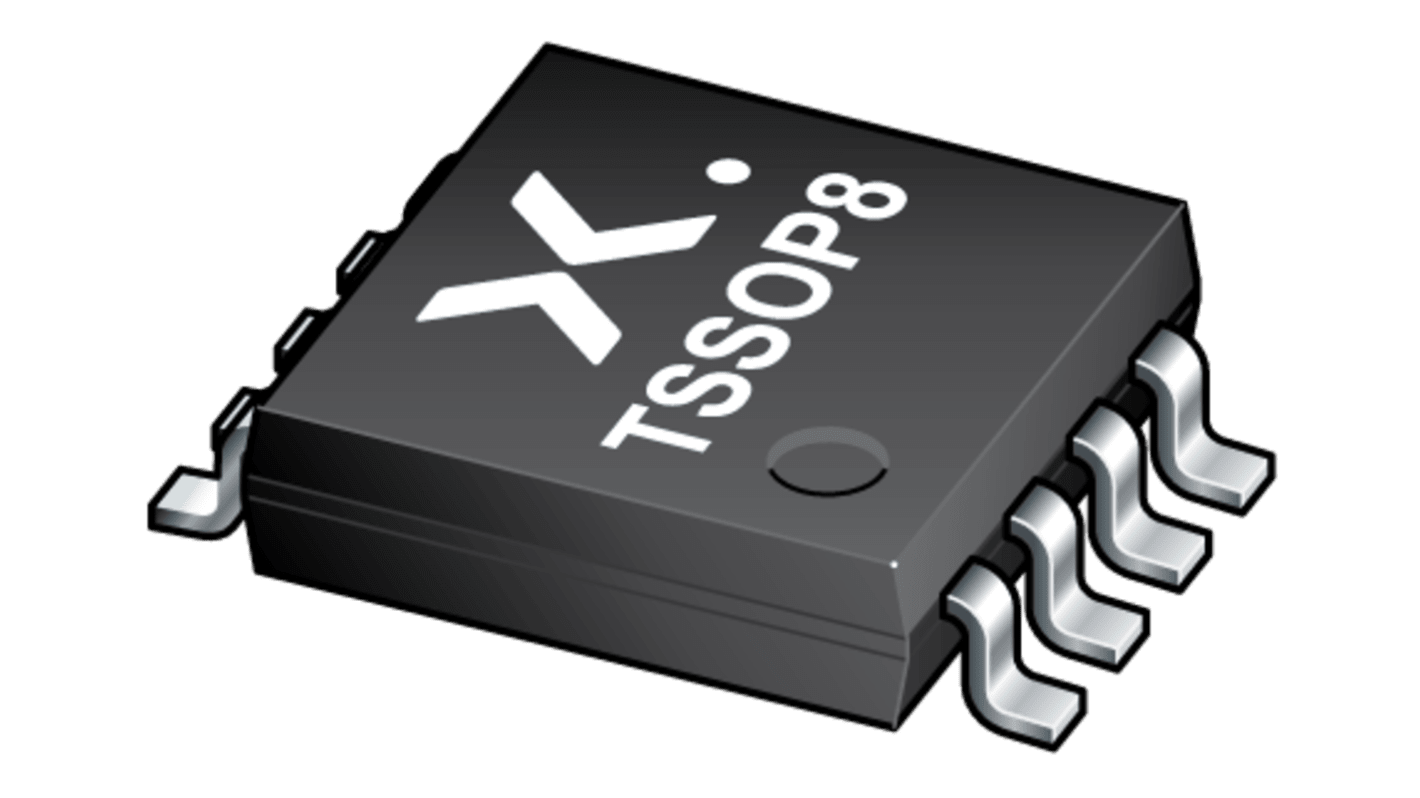

Nexperia NCA9306DPH, Voltage Level Translator Voltage Level Translator, 8-Pin TSSOP8
- RS Stock No.:
- 625-400
- Mfr. Part No.:
- NCA9306DPH
- Brand:
- Nexperia
Bulk discount available
Subtotal (1 unit)*
£0.26
(exc. VAT)
£0.31
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 24 | £0.26 |
25 + | £0.25 |
*price indicative
- RS Stock No.:
- 625-400
- Mfr. Part No.:
- NCA9306DPH
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Nexperia | |
Logic Family | NC | |
Absolute Propagation Delay Time | 0.24ns | |
Bus Compatibility | I2C, SMBus | |
Mounting Type | Surface Mount | |
Package Type | TSSOP8 | |
Pin Count | 8 | |
Logic Function | Voltage Level Translator | |
Select all | ||
---|---|---|
Brand Nexperia | ||
Logic Family NC | ||
Absolute Propagation Delay Time 0.24ns | ||
Bus Compatibility I2C, SMBus | ||
Mounting Type Surface Mount | ||
Package Type TSSOP8 | ||
Pin Count 8 | ||
Logic Function Voltage Level Translator | ||
- COO (Country of Origin):
- CN
The Nexperia 2-channel bidirectional I²C and SMBus multi-voltage level translator is designed to support voltage translation between 0.95 V and 5 V without requiring a direction pin. It includes an enable (EN) input and supports up to 100 MHz up translation and over 100 MHz down translation at less than or equal to 30 pF load, simplifying system design and reducing effort.
Provides bidirectional voltage translation with no direction pin
High impedance
Hot insertion
Low standby current
High impedance
Hot insertion
Low standby current
