TDK for use with Power Transformer Mounting Assembly
- RS Stock No.:
- 647-9070
- Mfr. Part No.:
- B65647A2000X000
- Brand:
- TDK
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£5.15
(exc. VAT)
£6.18
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 25 unit(s) shipping from 08 June 2026
- Plus 60 unit(s) shipping from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £5.15 |
| 10 - 49 | £4.40 |
| 50 - 99 | £3.25 |
| 100 - 249 | £2.87 |
| 250 + | £2.75 |
*price indicative
- RS Stock No.:
- 647-9070
- Mfr. Part No.:
- B65647A2000X000
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Product Type | Transformer Accessory | |
| For Use With | Power Transformer | |
| Overall Length | 49mm | |
| Material | Aluminium | |
| Kit Type | Mounting Assembly | |
| Standards/Approvals | RoHS | |
| Overall Width | 47mm | |
| Select all | ||
|---|---|---|
Brand TDK | ||
Product Type Transformer Accessory | ||
For Use With Power Transformer | ||
Overall Length 49mm | ||
Material Aluminium | ||
Kit Type Mounting Assembly | ||
Standards/Approvals RoHS | ||
Overall Width 47mm | ||
PM 50-114 Ferrite Cores
Applications for PM cores
For power repeaters
For storage coils in high-energy timed power supply devices
In communications technology and industrial electronics

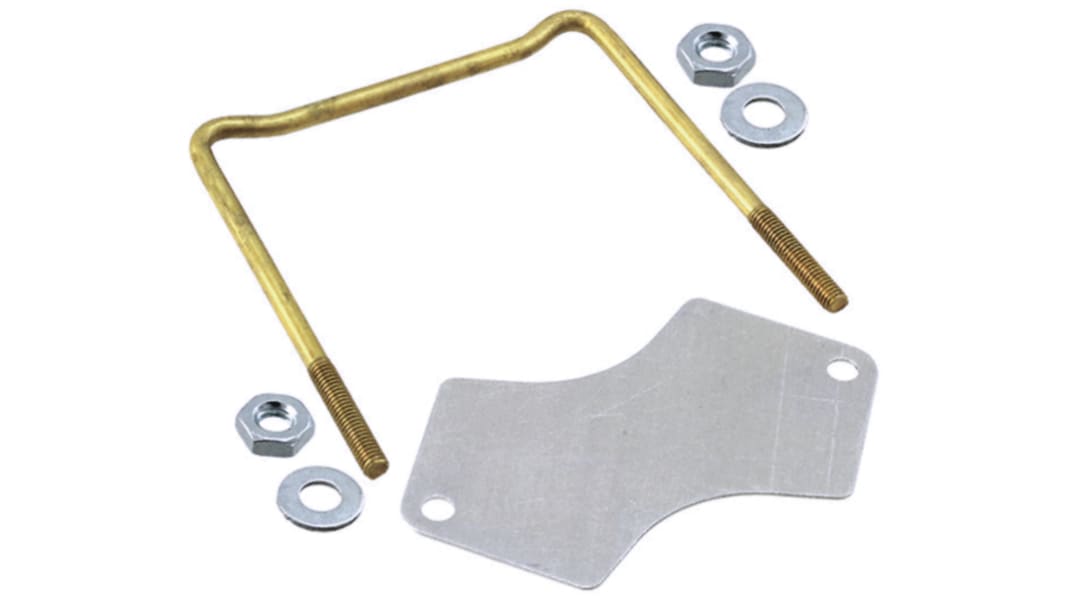

Holder (clip & baseplate)
Complete with nuts and washers
For chassis assembly or PCBs
For chassis assembly, the coil must be installed with the soldered connections uppermost
