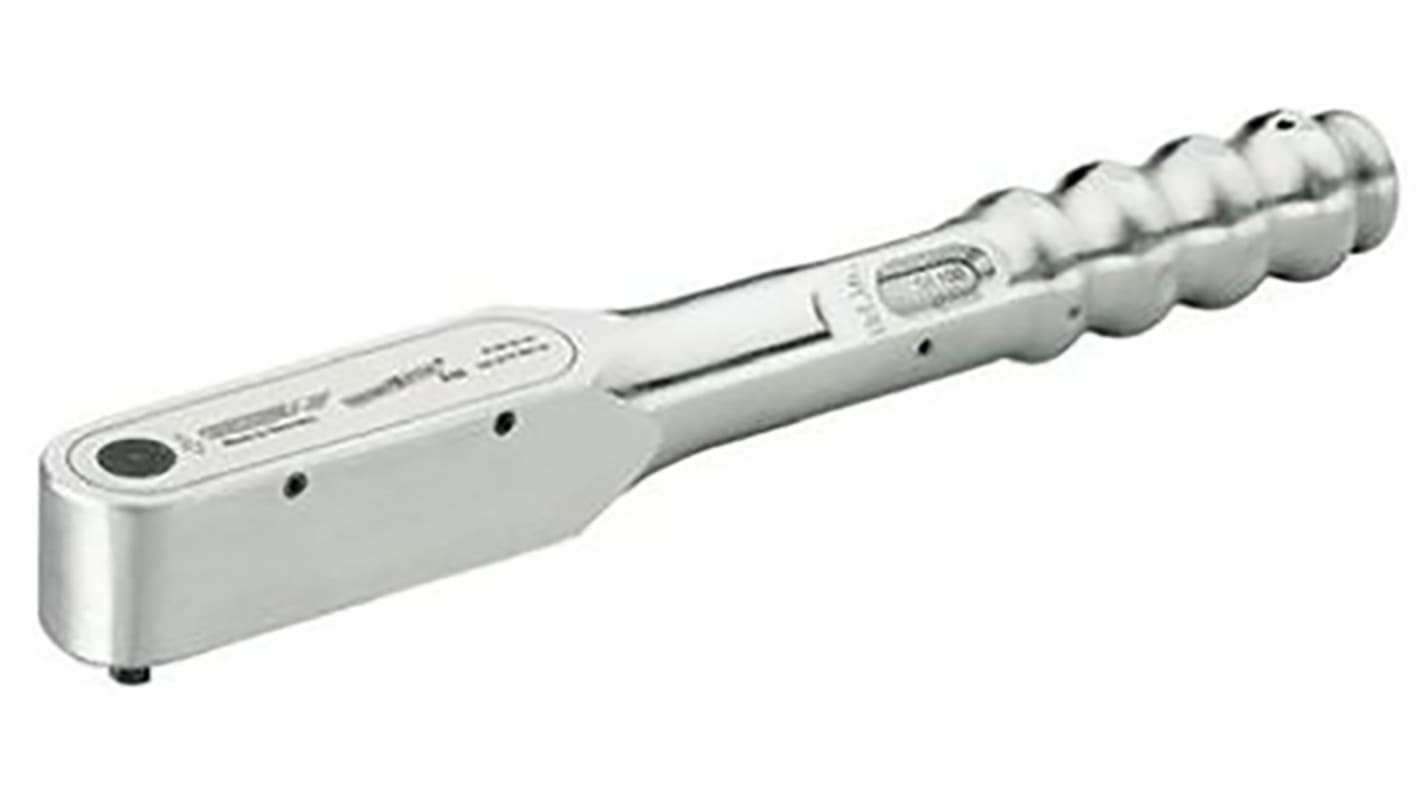

Gedore RSCAL 1/4 in Square Drive Mechanical Torque Wrench Aluminium Alloy, 6 → 30Nm

  • RS Stock No. 125-2799
  • Mfr. Part No. 8554-01
  • Brand Gedore
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

DREMOMETER Adjustable Torque Wrench

Easy adjustable torque wrench featuring automatic short path actuation with tactile impulse and audible signal.

Easy adjustment with button at the end of the handle
Scale in Nm, lbf.in & lbf.ft
Lightweight Aluminium alloy construction
Lever mechanism for low wear & long life
±3% accuracy
Square drive and fulcrum are on the same axis maintaining accuracy even when used with extension tube
Square drive has ball locking device

Standards

DIN EN ISO 6789:2003 Type 11, Class A.

Supplied with

Factory checked calibration certificate.

Specifications
Attribute Value
Torque Range 6 → 30Nm
Drive Shape Square
Drive Size 1/4 in
Type Mechanical
Calibrated RSCAL
Overall Length 268 mm
Accuracy ±3 %
Scale Graduations 1Nm
Material Aluminium Alloy
1 In stock for delivery within 2 working days
Price Each
£ 360.23
(exc. VAT)
£ 432.28
(inc. VAT)
Units
Per unit
1 +
£360.23
Not available for guaranteed pre 9am/10am delivery
