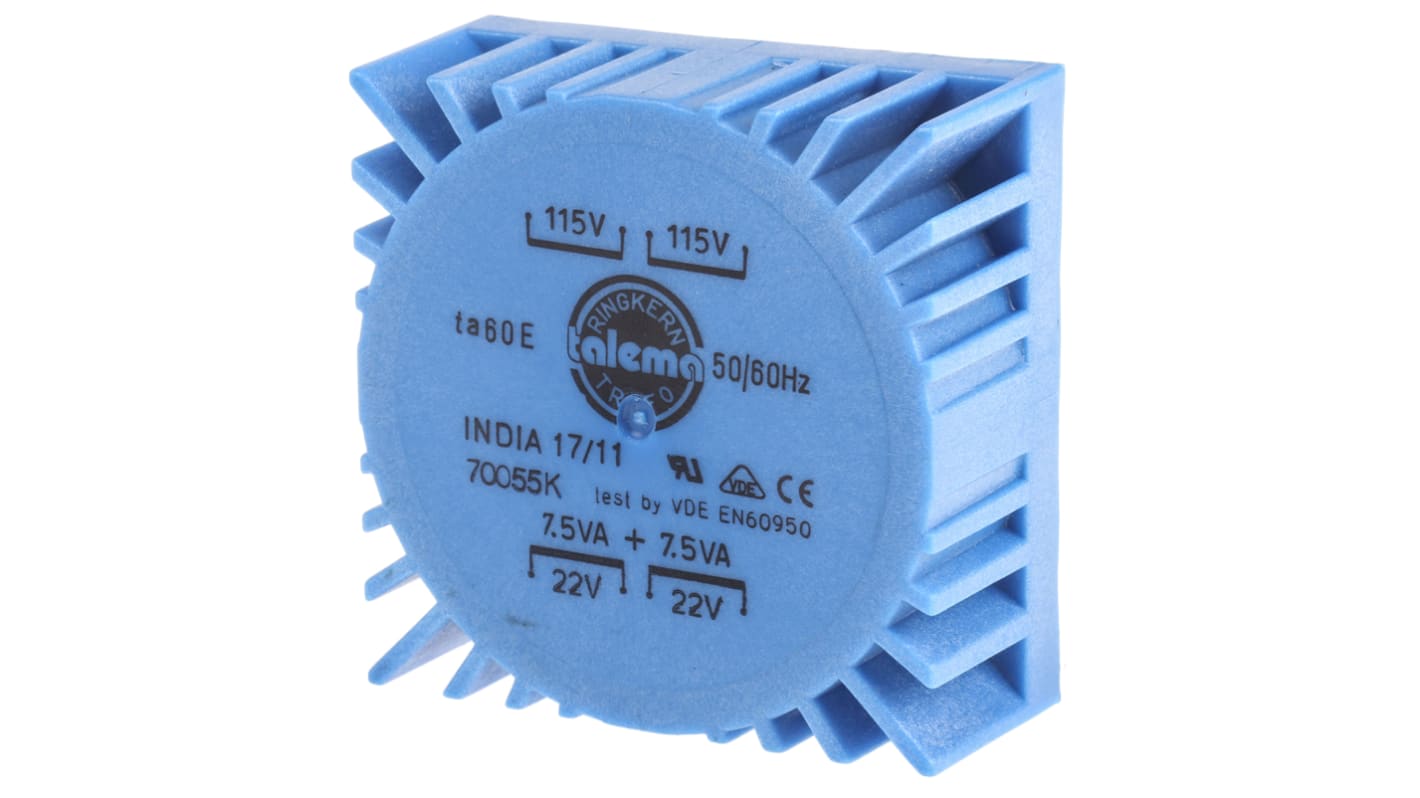

Nuvotem Talema 115 V ac, 230 V ac, 2 x 22V ac Toroidal Transformer, 15VA 2 Output
- RS Stock No.:
- 223-9367
- Mfr. Part No.:
- 70055K
- Brand:
- Nuvotem Talema
Bulk discount available
Subtotal (1 unit)*
£21.17
(exc. VAT)
£25.40
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 159 unit(s) shipping from 08 May 2026
- Plus 144 unit(s) shipping from 05 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £21.17 |
| 10 - 24 | £20.01 |
| 25 - 49 | £17.89 |
| 50 - 74 | £15.77 |
| 75 + | £13.65 |
*price indicative
- RS Stock No.:
- 223-9367
- Mfr. Part No.:
- 70055K
- Brand:
- Nuvotem Talema
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nuvotem Talema | |
| Primary Voltage Rating | 115 V ac, 230 V ac | |
| Secondary Voltage Rating | 2 x 22V ac | |
| Power Rating | 15VA | |
| Number of Outputs | 2 | |
| Secondary Current | 341mA | |
| Weight | 304g | |
| Dimensions | 60 x 60 x 26.3mm | |
| Minimum Operating Frequency | 50Hz | |
| Maximum Operating Frequency | 60Hz | |
| Mounting Type | PCB | |
| Termination Type | Pin | |
| Fixing Hole Diameter | M4 | |
| Maximum Temperature | +60°C | |
| Select all | ||
|---|---|---|
Brand Nuvotem Talema | ||
Primary Voltage Rating 115 V ac, 230 V ac | ||
Secondary Voltage Rating 2 x 22V ac | ||
Power Rating 15VA | ||
Number of Outputs 2 | ||
Secondary Current 341mA | ||
Weight 304g | ||
Dimensions 60 x 60 x 26.3mm | ||
Minimum Operating Frequency 50Hz | ||
Maximum Operating Frequency 60Hz | ||
Mounting Type PCB | ||
Termination Type Pin | ||
Fixing Hole Diameter M4 | ||
Maximum Temperature +60°C | ||
Miniature Encapsulated PCB Mount 115/230Vac Primary Transformers
This series of fully encapsulated PCB mounting toroidal transformers feature twin 115 V ac 50/60Hz primary windings that can be connected in series to a 230 V supply or in parallel for 115 V supplies. With a low weight and compact size, these toroidal transformers are ideal where space is at a premium, offering low magnetic interference, low noise and high efficiency. An M4 central bush allows for easy mounting
Low profile compact design
Fully encapsulated to UL94-V0
Extremely low level of radiated magnetic field
Extremely low level of hum and noise
High efficiency and low temperature rise
Ease of mounting
100% electrical and flash tested
Fully encapsulated to UL94-V0
Extremely low level of radiated magnetic field
Extremely low level of hum and noise
High efficiency and low temperature rise
Ease of mounting
100% electrical and flash tested
Standards
EN60950, VDE0805, UL506, UL1950, UL6500
Approvals
UL recognised, VDE
Approvals
EN60950; VDE 0805 (VDE 5803UG); UL 506 (E215495); UL 1950 (E218027; UL 6500 (E218027)
Encapsulated – Toroidal
Note
Fixing screws not provided
