- RS Stock No.:
- 124-3876
- Brand:
- RS PRO
1 In stock - FREE next working day delivery available
Added
Price Each
£20.04
(exc. VAT)
£24.05
(inc. VAT)
Units | Per unit |
1 - 4 | £20.04 |
5 - 9 | £18.02 |
10 - 24 | £17.23 |
25 + | £16.63 |
- RS Stock No.:
- 124-3876
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details

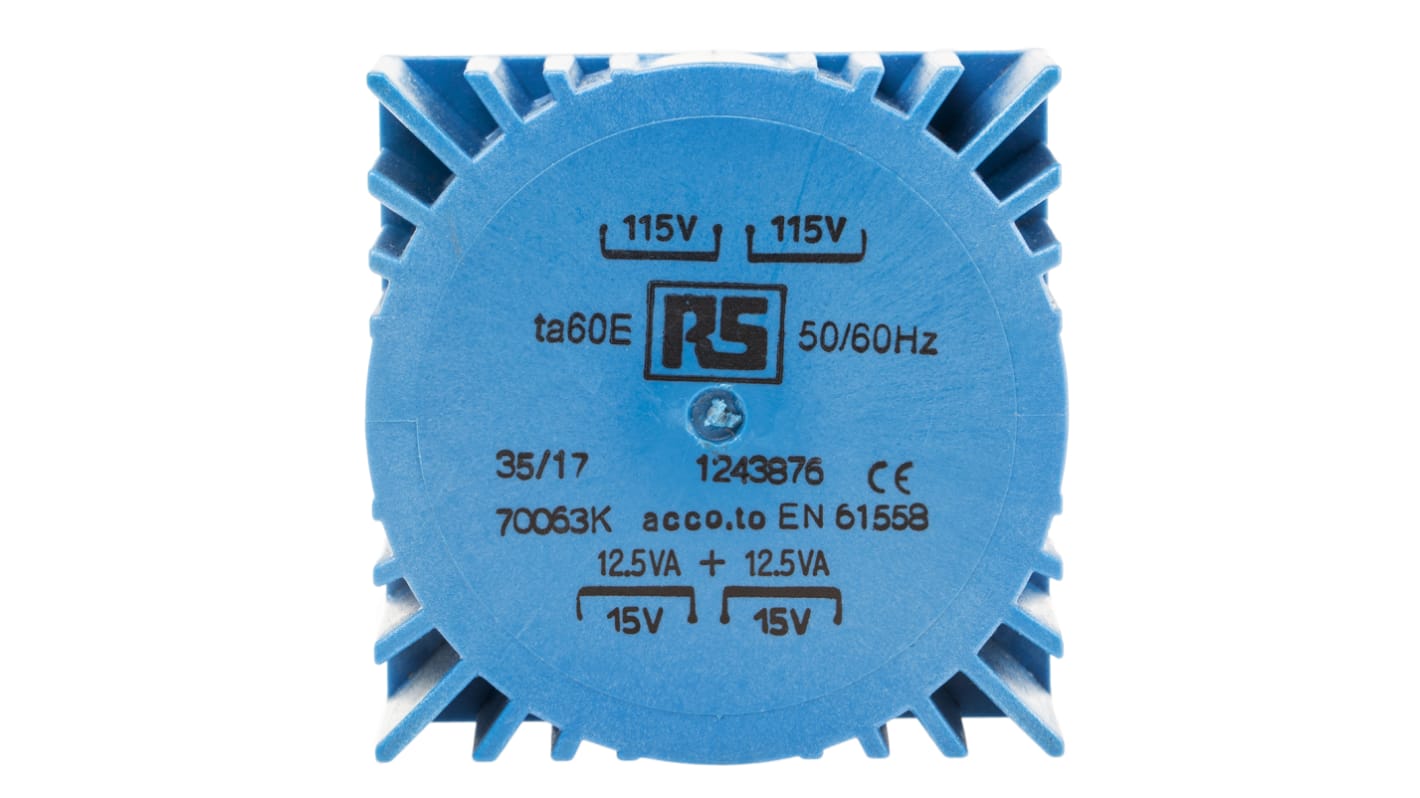

RS Pro Toroidal PC Transformer 1.6VA- 25VA
RS Pro toroidal PC transformers are high efficiency and low profile being a small size and low weight. These Toroidal transformers have low iron loss and low induced noise. Dual 115 V primaries for parallel or series connections.
Features
Lower stray field
Reduced standby current
Test voltage primary- secondary 4.0 KV
Ease of mounting- M4 Centre bush
Ambient operating temperature: +60°C Max
Fully RoHS & REACH compliant
Reduced standby current
Test voltage primary- secondary 4.0 KV
Ease of mounting- M4 Centre bush
Ambient operating temperature: +60°C Max
Fully RoHS & REACH compliant
Encapsulated – Toroidal
Note
Fixing screws not provided
Specifications
Attribute | Value |
---|---|
Primary Voltage Rating | 2 x 115V ac |
Secondary Voltage Rating | 2 x 15V |
Power Rating | 25VA |
Secondary Current | 832mA |
Height | 37.5mm |
Weight | 435g |
Dimensions | 60 x 60 x 37.5mm |
Maximum Operating Frequency | 50Hz |
Mounting Type | Through Hole |
Isolation Voltage | 4kV |
Maximum Temperature | +60°C |
