Bulk discount available
Subtotal (1 unit)*
£14.70
(exc. VAT)
£17.64
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 17 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £14.70 |
| 10 - 24 | £13.90 |
| 25 - 49 | £12.86 |
| 50 - 99 | £11.90 |
| 100 + | £10.45 |
*price indicative
- RS Stock No.:
- 124-3845
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Primary Voltage Rating | 2 x 115V ac | |
| Secondary Voltage Rating | 2 x 9V | |
| Power Rating | 3.2VA | |
| Height | 19.5mm | |
| Weight | 110g | |
| Dimensions | 44.7 x 44.7 x 19.5mm | |
| Maximum Operating Frequency | 50Hz | |
| Mounting Type | Through Hole | |
| Isolation Voltage | 4kV | |
| Maximum Temperature | +60°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Primary Voltage Rating 2 x 115V ac | ||
Secondary Voltage Rating 2 x 9V | ||
Power Rating 3.2VA | ||
Height 19.5mm | ||
Weight 110g | ||
Dimensions 44.7 x 44.7 x 19.5mm | ||
Maximum Operating Frequency 50Hz | ||
Mounting Type Through Hole | ||
Isolation Voltage 4kV | ||
Maximum Temperature +60°C | ||

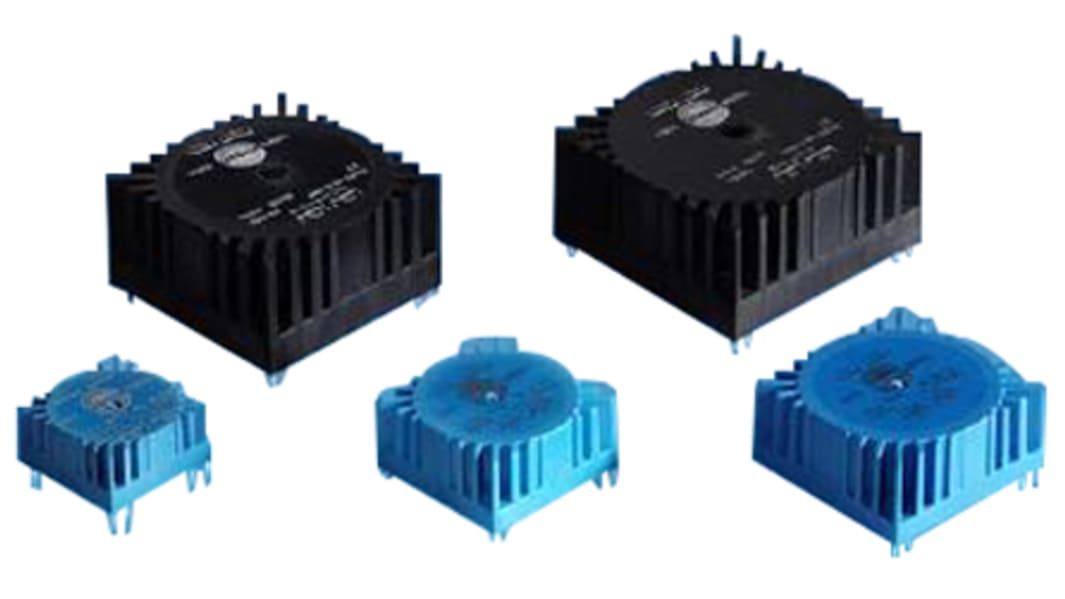

RS Pro Toroidal PC Transformer 1.6VA- 25VA
RS Pro toroidal PC transformers are high efficiency and low profile being a small size and low weight. These Toroidal transformers have low iron loss and low induced noise. Dual 115 V primaries for parallel or series connections.
Features
Lower stray field
Reduced standby current
Test voltage primary- secondary 4.0 KV
Ease of mounting- M4 Centre bush
Ambient operating temperature: +60°C Max
Fully RoHS & REACH compliant
Reduced standby current
Test voltage primary- secondary 4.0 KV
Ease of mounting- M4 Centre bush
Ambient operating temperature: +60°C Max
Fully RoHS & REACH compliant
Encapsulated – Toroidal
Note
Fixing screws not provided
