RS PRO 2 x 115V ac, 2 x 22V Toroidal Transformer, 10VA
- RS Stock No.:
- 124-3866
- Brand:
- RS PRO
10 In stock - FREE next working day delivery available
Added
Price Each
£16.96
(exc. VAT)
£20.35
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £16.96 |
| 10 - 49 | £13.89 |
| 50 - 99 | £12.74 |
| 100 - 199 | £12.38 |
| 200 + | £12.06 |
- RS Stock No.:
- 124-3866
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details

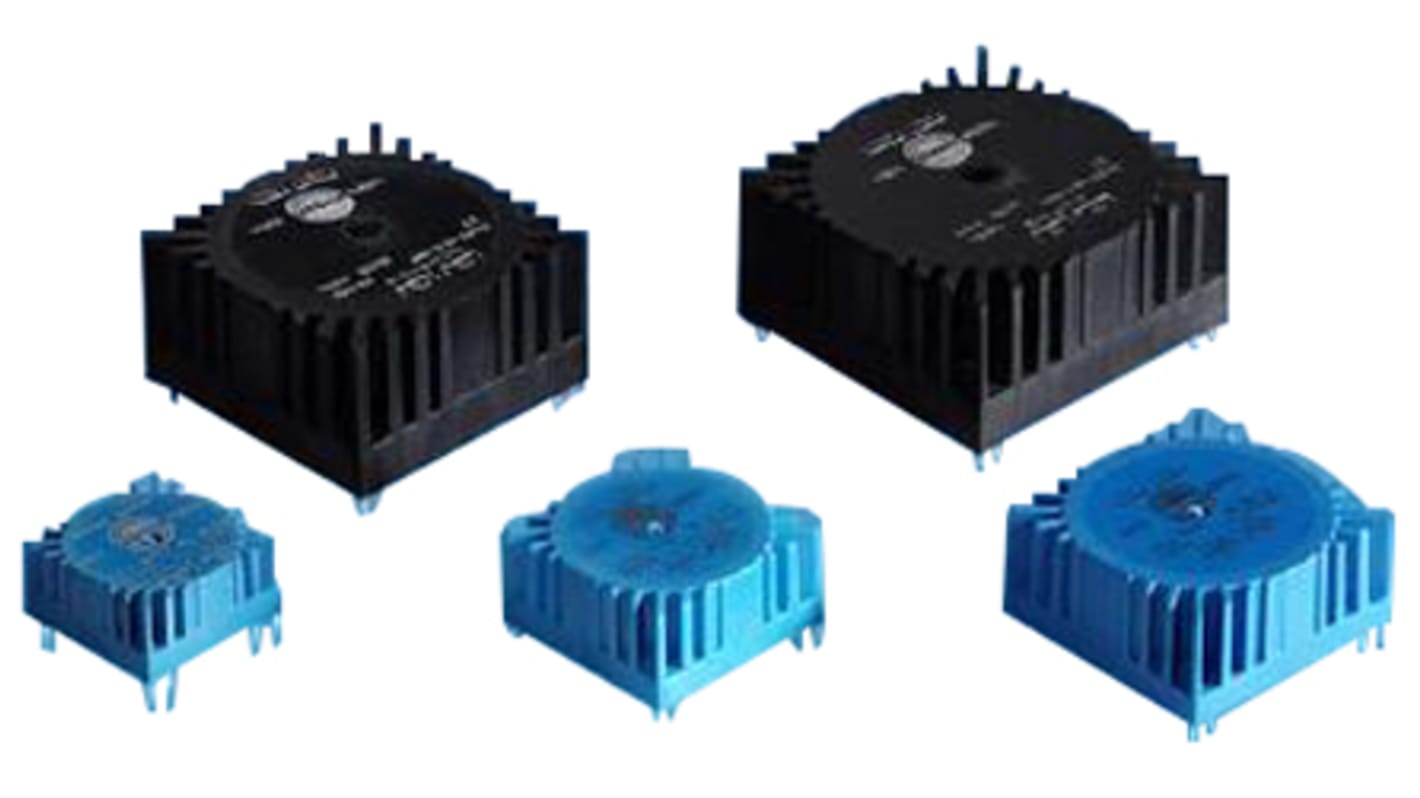

RS Pro Toroidal PC Transformer 1.6VA- 25VA
RS Pro toroidal PC transformers are high efficiency and low profile being a small size and low weight. These Toroidal transformers have low iron loss and low induced noise. Dual 115 V primaries for parallel or series connections.
Features
Lower stray field
Reduced standby current
Test voltage primary- secondary 4.0 KV
Ease of mounting- M4 Centre bush
Ambient operating temperature: +60°C Max
Fully RoHS & REACH compliant
Reduced standby current
Test voltage primary- secondary 4.0 KV
Ease of mounting- M4 Centre bush
Ambient operating temperature: +60°C Max
Fully RoHS & REACH compliant
Encapsulated – Toroidal
Note
Fixing screws not provided
Specifications
Attribute | Value |
|---|---|
| Primary Voltage Rating | 2 x 115V ac |
| Secondary Voltage Rating | 2 x 22V |
| Power Rating | 10VA |
| Secondary Current | 227mA |
| Height | 26mm |
| Weight | 252g |
| Dimensions | 55 x 55 x 26mm |
| Maximum Operating Frequency | 50Hz |
| Mounting Type | Through Hole |
| Maximum Temperature | +60°C |
| Isolation Voltage | 4kV |
