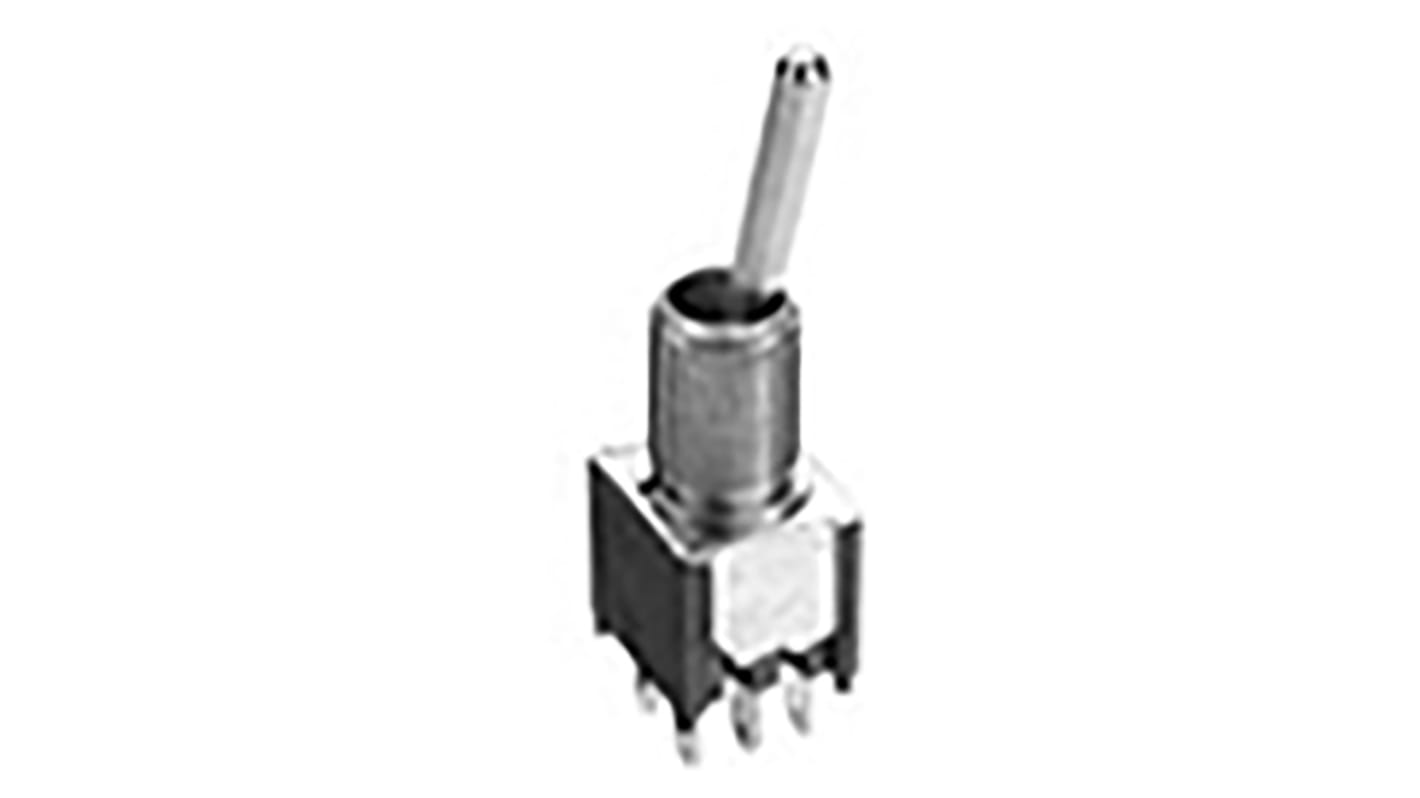

TE Connectivity Toggle Switch, Panel Mount, Latching, DPST, Solder Terminal, 28 V dc, 125 V ac
- RS Stock No.:
- 875-0668
- Mfr. Part No.:
- TT23K9T1/4
- Brand:
- TE Connectivity
Discontinued
- RS Stock No.:
- 875-0668
- Mfr. Part No.:
- TT23K9T1/4
- Brand:
- TE Connectivity
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Contact Configuration | DPST | |
| Switch Operation | Latching | |
| Contact Current Rating | 3 A@ 125 V ac, 3 A@ 28 V dc | |
| Mounting Type | Panel Mount | |
| Terminal Type | Solder | |
| Panel Cut Out Diameter | 6.4mm | |
| Actuator Length | 10.69mm | |
| Actuator Material | Brass | |
| Voltage Rating | 28 V dc, 125 V ac | |
| Panel Cut Out Size | 6.4 (Dia.)mm | |
| Contact Material | Copper Alloy | |
| Contact Resistance | 20mΩ | |
| Minimum Operating Temperature | -30°C | |
| Operating Temperature Range | -30 → +85°C | |
| Maximum Operating Temperature | +85°C | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Contact Configuration DPST | ||
Switch Operation Latching | ||
Contact Current Rating 3 A@ 125 V ac, 3 A@ 28 V dc | ||
Mounting Type Panel Mount | ||
Terminal Type Solder | ||
Panel Cut Out Diameter 6.4mm | ||
Actuator Length 10.69mm | ||
Actuator Material Brass | ||
Voltage Rating 28 V dc, 125 V ac | ||
Panel Cut Out Size 6.4 (Dia.)mm | ||
Contact Material Copper Alloy | ||
Contact Resistance 20mΩ | ||
Minimum Operating Temperature -30°C | ||
Operating Temperature Range -30 → +85°C | ||
Maximum Operating Temperature +85°C | ||
Non Compliant
- COO (Country of Origin):
- MX
Toggle Switches, TT series (wire lug terminals)
The TT series (tiny toggle) from Tyco Electronics
Compact panel mount
3 A @ 125 Vac or 28 Vdc resistive
3 A @ 125 Vac or 28 Vdc resistive
