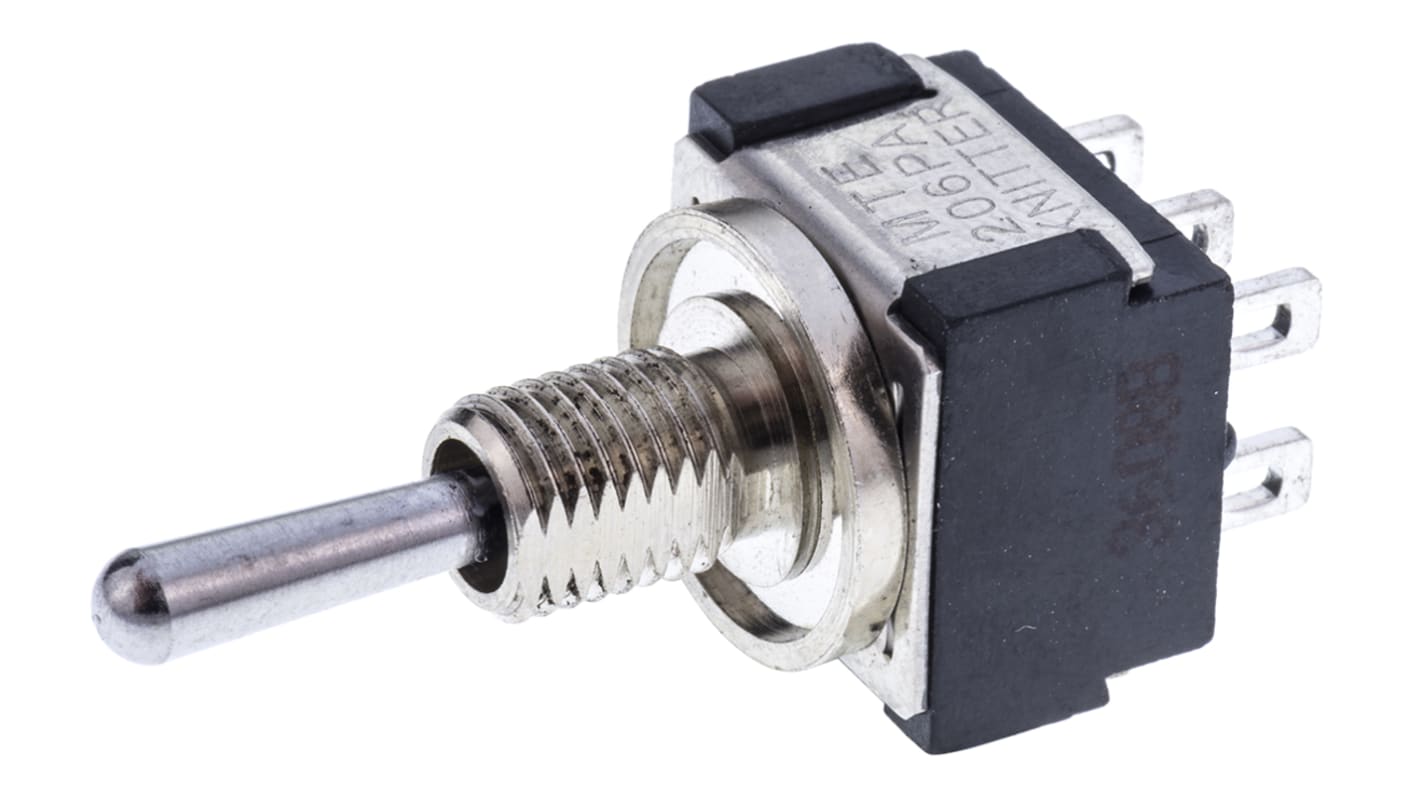

KNITTER-SWITCH Toggle Switch, Panel Mount, On-On-On, DPDT, Solder Terminal, 250 V ac
- RS Stock No.:
- 819-9293
- Mfr. Part No.:
- MTE 206 PA
- Brand:
- KNITTER-SWITCH
Bulk discount available
Subtotal (1 unit)*
£11.96
(exc. VAT)
£14.35
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 49 | £11.96 |
| 50 - 99 | £11.04 |
| 100 - 249 | £10.07 |
| 250 - 499 | £8.94 |
| 500 + | £7.55 |
*price indicative
- RS Stock No.:
- 819-9293
- Mfr. Part No.:
- MTE 206 PA
- Brand:
- KNITTER-SWITCH
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KNITTER-SWITCH | |
| Contact Configuration | DPDT | |
| Product Type | Toggle Switch | |
| Switch Operation | On-On-On | |
| Switch Contact Current | 4A | |
| Mount Type | Panel | |
| Terminal Type | Solder | |
| IP Rating | IP67 | |
| Panel Cutout Size | 5.5 mm | |
| Contact AC Voltage | 250V ac | |
| Actuator Length | 10.5mm | |
| Minimum Operating Temperature | -45°C | |
| Maximum Operating Temperature | 140°C | |
| Actuator Material | Chrome Plated | |
| Switch Configuration | On-On-On | |
| Series | MTL | |
| Length | 13mm | |
| Height | 32.5mm | |
| Standards/Approvals | RoHS | |
| Width | 13mm | |
| Mechanical Life | 100000Operations | |
| Select all | ||
|---|---|---|
Brand KNITTER-SWITCH | ||
Contact Configuration DPDT | ||
Product Type Toggle Switch | ||
Switch Operation On-On-On | ||
Switch Contact Current 4A | ||
Mount Type Panel | ||
Terminal Type Solder | ||
IP Rating IP67 | ||
Panel Cutout Size 5.5 mm | ||
Contact AC Voltage 250V ac | ||
Actuator Length 10.5mm | ||
Minimum Operating Temperature -45°C | ||
Maximum Operating Temperature 140°C | ||
Actuator Material Chrome Plated | ||
Switch Configuration On-On-On | ||
Series MTL | ||
Length 13mm | ||
Height 32.5mm | ||
Standards/Approvals RoHS | ||
Width 13mm | ||
Mechanical Life 100000Operations | ||
- COO (Country of Origin):
- CN
MTE Series - Waterproof IP67
2 and 3 position, single, double and triple pole panel mount toggle switches
Chromium-plated actuator
Solder tags; copper alloy silver plated
Silver plated contacts
Max. panel thickness; 1.5mm
Approvals
UL
