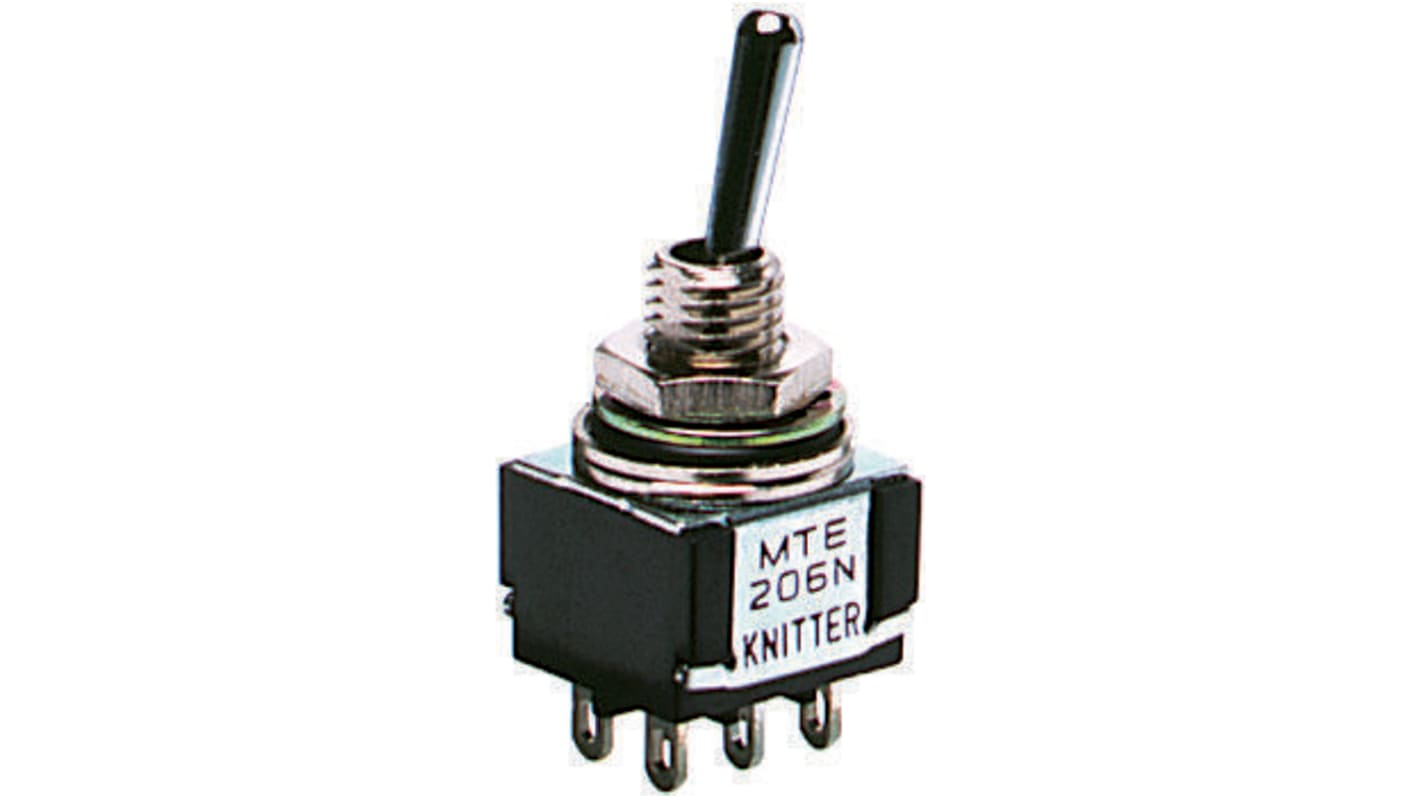

KNITTER-SWITCH Toggle Switch, Panel Mount, On-Off-On, DPDT, Solder Terminal, 30 V dc, 250 V ac
- RS Stock No.:
- 134-1122
- Mfr. Part No.:
- MTE 206 P
- Brand:
- KNITTER-SWITCH
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£9.49
(exc. VAT)
£11.39
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | £9.49 |
| 15 - 49 | £9.25 |
| 50 - 99 | £8.06 |
| 100 - 249 | £7.59 |
| 250 + | £6.91 |
*price indicative
- RS Stock No.:
- 134-1122
- Mfr. Part No.:
- MTE 206 P
- Brand:
- KNITTER-SWITCH
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KNITTER-SWITCH | |
| Contact Configuration | DPDT | |
| Product Type | Toggle Switch | |
| Switch Operation | On-Off-On | |
| Switch Contact Current | 4A | |
| Mount Type | Panel | |
| Terminal Type | Solder | |
| IP Rating | IP67 | |
| Illuminated | No | |
| Panel Cutout Size | 6.1 x 5.5 mm | |
| Actuator Length | 10.5mm | |
| Minimum Operating Temperature | -45°C | |
| Contact AC Voltage | 250V ac | |
| Contact DC Voltage | 30V dc | |
| Switch Configuration | On-Off-On | |
| Maximum Operating Temperature | 140°C | |
| Actuator Material | Chrome Plated | |
| Height | 32.5mm | |
| Width | 13mm | |
| Standards/Approvals | RoHS, UL | |
| Series | MTE | |
| Length | 13mm | |
| Mechanical Life | 100000Operations | |
| Select all | ||
|---|---|---|
Brand KNITTER-SWITCH | ||
Contact Configuration DPDT | ||
Product Type Toggle Switch | ||
Switch Operation On-Off-On | ||
Switch Contact Current 4A | ||
Mount Type Panel | ||
Terminal Type Solder | ||
IP Rating IP67 | ||
Illuminated No | ||
Panel Cutout Size 6.1 x 5.5 mm | ||
Actuator Length 10.5mm | ||
Minimum Operating Temperature -45°C | ||
Contact AC Voltage 250V ac | ||
Contact DC Voltage 30V dc | ||
Switch Configuration On-Off-On | ||
Maximum Operating Temperature 140°C | ||
Actuator Material Chrome Plated | ||
Height 32.5mm | ||
Width 13mm | ||
Standards/Approvals RoHS, UL | ||
Series MTE | ||
Length 13mm | ||
Mechanical Life 100000Operations | ||
- COO (Country of Origin):
- CN
MTE Series - Waterproof IP67
2 and 3 position, single, double and triple pole panel mount toggle switches
Chromium-plated actuator
Solder tags; copper alloy silver plated
Silver plated contacts
Max. panel thickness; 1.5mm
Approvals
UL
