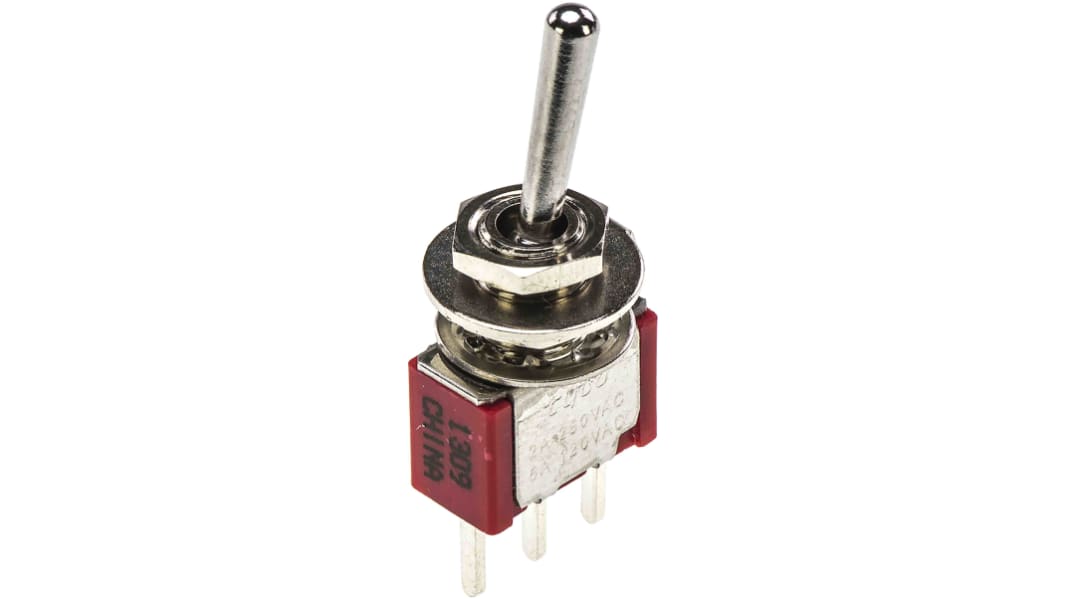

TE Connectivity Toggle Switch, PCB Mount, (On)-Off-(On), SPDT, Through Hole Terminal, 120 V ac, 28V dc
- RS Stock No.:
- 710-9463
- Mfr. Part No.:
- 3-1825137-7
- Brand:
- TE Connectivity
Subtotal (1 unit)*
£4.88
(exc. VAT)
£5.86
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- 11 left, ready to ship
- Plus 7 left, ready to ship from another location
Units | Per unit |
---|---|
1 + | £4.88 |
*price indicative
- RS Stock No.:
- 710-9463
- Mfr. Part No.:
- 3-1825137-7
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Contact Configuration | SPDT | |
Switch Operation | (On)-Off-(On) | |
Contact Current Rating | 5 A @ 28 V dc | |
Mounting Type | PCB | |
Terminal Type | Through Hole | |
Panel Cut Out Diameter | 6.35mm | |
Actuator Length | 10.41mm | |
Actuator Material | Nickel | |
Voltage Rating | 120 V ac, 28V dc | |
Contact Resistance | 10mΩ | |
Contact Material | Silver Plated Copper | |
Panel Cut Out Size | 6.35mm | |
Maximum Operating Temperature | +85°C | |
Operating Temperature Range | -30 → +85°C | |
Minimum Operating Temperature | -30°C | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Contact Configuration SPDT | ||
Switch Operation (On)-Off-(On) | ||
Contact Current Rating 5 A @ 28 V dc | ||
Mounting Type PCB | ||
Terminal Type Through Hole | ||
Panel Cut Out Diameter 6.35mm | ||
Actuator Length 10.41mm | ||
Actuator Material Nickel | ||
Voltage Rating 120 V ac, 28V dc | ||
Contact Resistance 10mΩ | ||
Contact Material Silver Plated Copper | ||
Panel Cut Out Size 6.35mm | ||
Maximum Operating Temperature +85°C | ||
Operating Temperature Range -30 → +85°C | ||
Minimum Operating Temperature -30°C | ||
Toggle Switches - Gemini A Series
Break before make contact timing
Epoxy sealed terminals
Stainless steel frame with brass tin plated solder support
Epoxy sealed terminals
Stainless steel frame with brass tin plated solder support
