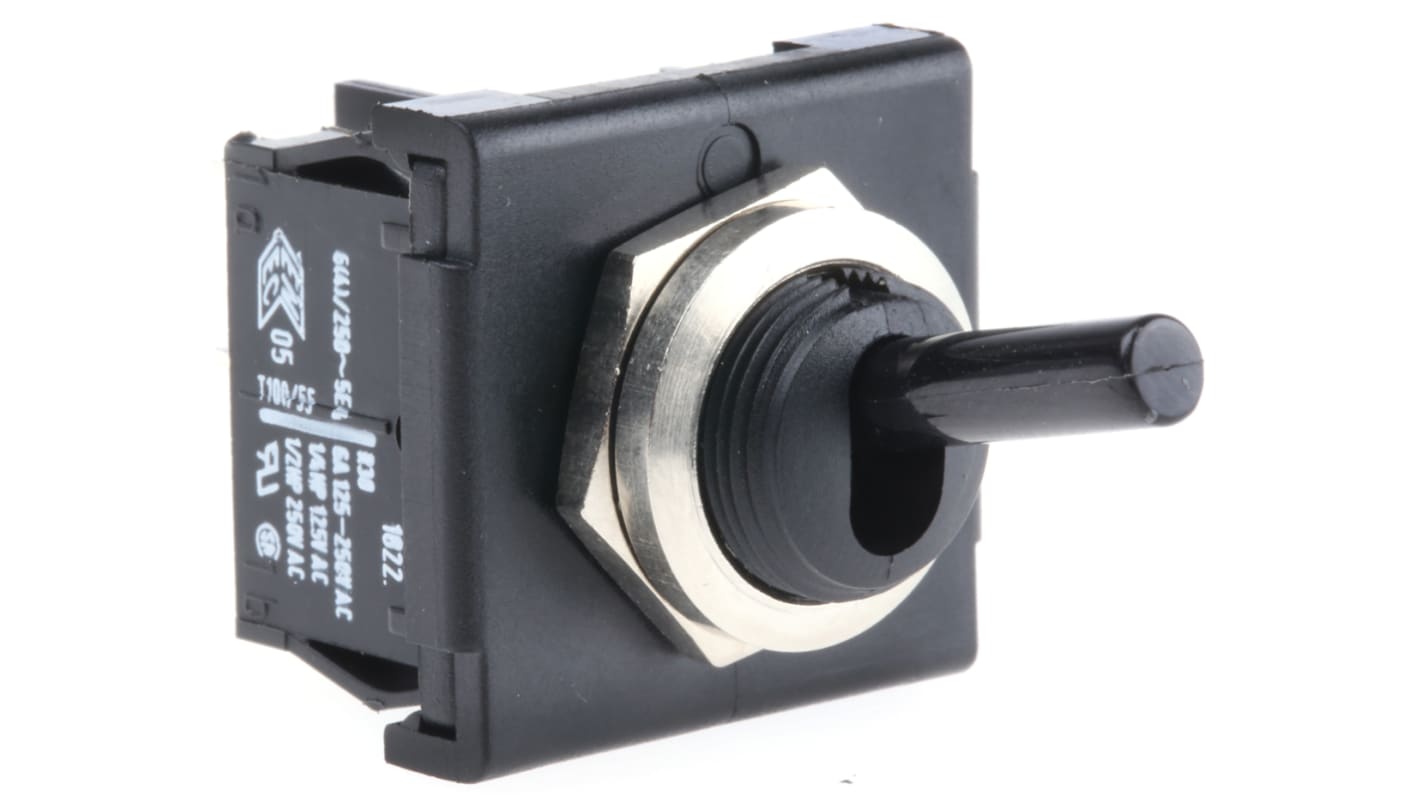

    Marquardt Toggle Switch, Panel Mount, On-Off, DPST, Tab Terminal

    RS Stock No.:
    604-8014
    Mfr. Part No.:
    1822.1101
    Brand:
    Marquardt
    Marquardt
    View all Toggle Switches
    92 In stock - FREE next working day delivery available
    503 available from Europe for delivery within 1 working day(s).
    Add to Basket
    Units

    Added

    Price Each

    £5.18

    (exc. VAT)

    £6.22

    (inc. VAT)

    UnitsPer unit
    1 - 9£5.18
    10 - 24£4.93
    25 - 49£4.62
    50 +£4.26
    RS Stock No.:
    604-8014
    Mfr. Part No.:
    1822.1101
    Brand:
    Marquardt
    COO (Country of Origin):
    DE

    Legislation and Compliance

    COO (Country of Origin):
    DE

    Product Details

    Marquardt 1820 Series Toggle Switches


    Marquardt 1820 series single and double pole toggle switches. The 1820 toggle switches are suitable for use in Class II appliances and are available in a choice of SPST, SPDT, DPST or DPDT switching formats including SPDT center off changeover with latching action contacts (see stock number 741-1003). A black Neoprene® lever cover which simply screws onto the toggle switch M12x0.75mm bush is available to protect the actuator from dust and water ingression.

    Long mechanical and electrical life
    Contact distance ≥3mm (apart from stock number 741-1003 which has a contact distance <3mm)
    Contact resistance <100mΩ
    Insulation resistance >100MΩ
    Electrical connection via Solder tag or 4.8mm Faston/Quick Connect style terminals
    UL 94 V-2 flammability rated

    Note

    See stock number 103-9475 for Neoprene® protective cover.
    Neoprene is a registered trademark of DuPont.

    Approvals

    UL; CSA; ENEC

    Specifications

    AttributeValue
    Contact ConfigurationDPST
    Switch OperationOn-Off
    Contact Current Rating6 A @ 250 V ac
    Mounting TypePanel Mount
    Terminal TypeTab
    IP RatingIP40
    Actuator Length14mm
    Contact MaterialAg
    Standards MetCSA, UL
