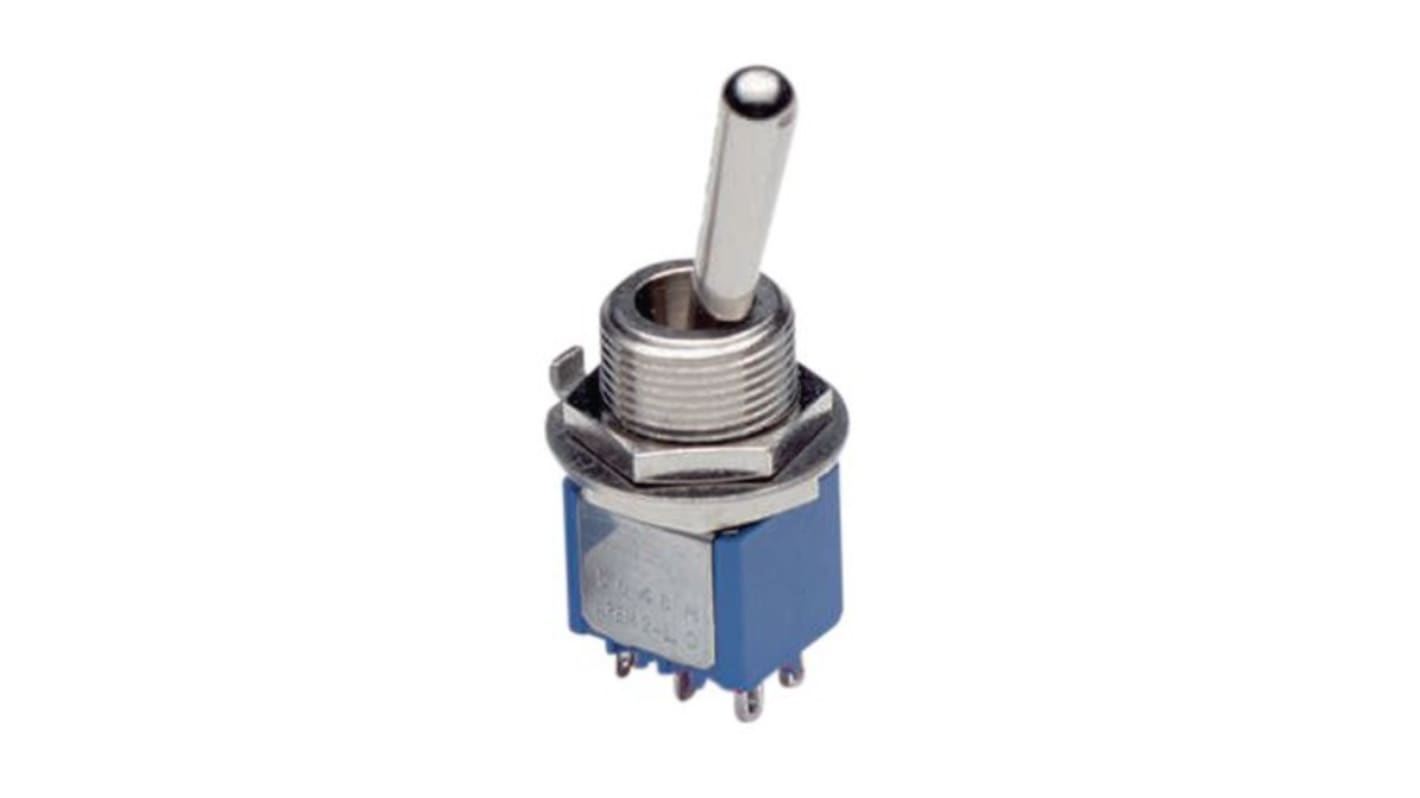

APEM Toggle Switch, Panel Mount, On-On, 1P, Solder Lug Terminal, 125 V ac
- RS Stock No.:
- 287-3635
- Mfr. Part No.:
- 5636MAB
- Brand:
- APEM
Bulk discount available
Subtotal (1 unit)*
£11.21
(exc. VAT)
£13.45
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 10 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £11.21 |
| 10 - 24 | £10.75 |
| 25 - 49 | £10.35 |
| 50 - 99 | £9.96 |
| 100 + | £9.60 |
*price indicative
- RS Stock No.:
- 287-3635
- Mfr. Part No.:
- 5636MAB
- Brand:
- APEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Contact Configuration | 1P | |
| Product Type | Toggle Switch | |
| Switch Operation | On-On | |
| Switch Contact Current | 6 A | |
| Mount Type | Panel | |
| Terminal Type | Solder Lug | |
| Contact AC Voltage | 125V ac | |
| Minimum Operating Temperature | -40°C | |
| Actuator Material | Brass | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand APEM | ||
Contact Configuration 1P | ||
Product Type Toggle Switch | ||
Switch Operation On-On | ||
Switch Contact Current 6 A | ||
Mount Type Panel | ||
Terminal Type Solder Lug | ||
Contact AC Voltage 125V ac | ||
Minimum Operating Temperature -40°C | ||
Actuator Material Brass | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- FR
The APEM miniature toggle switch is designed for panel mounting applications. With a bushing diameter of 11.9 mm, it offers a wide range of models and options, making it versatile and suitable for various industrial controls. The switch is epoxy sealed for protection and features single pole configurations with silver contact materials.
Bushing diameter of 11.9 mm for panel mounting applications
Epoxy sealed terminals for added protection
Single pole configuration with silver contact materials for reliability
UL and CSA approved for quality assurance
Suitable for inductive, lamp, or capacitive loads
