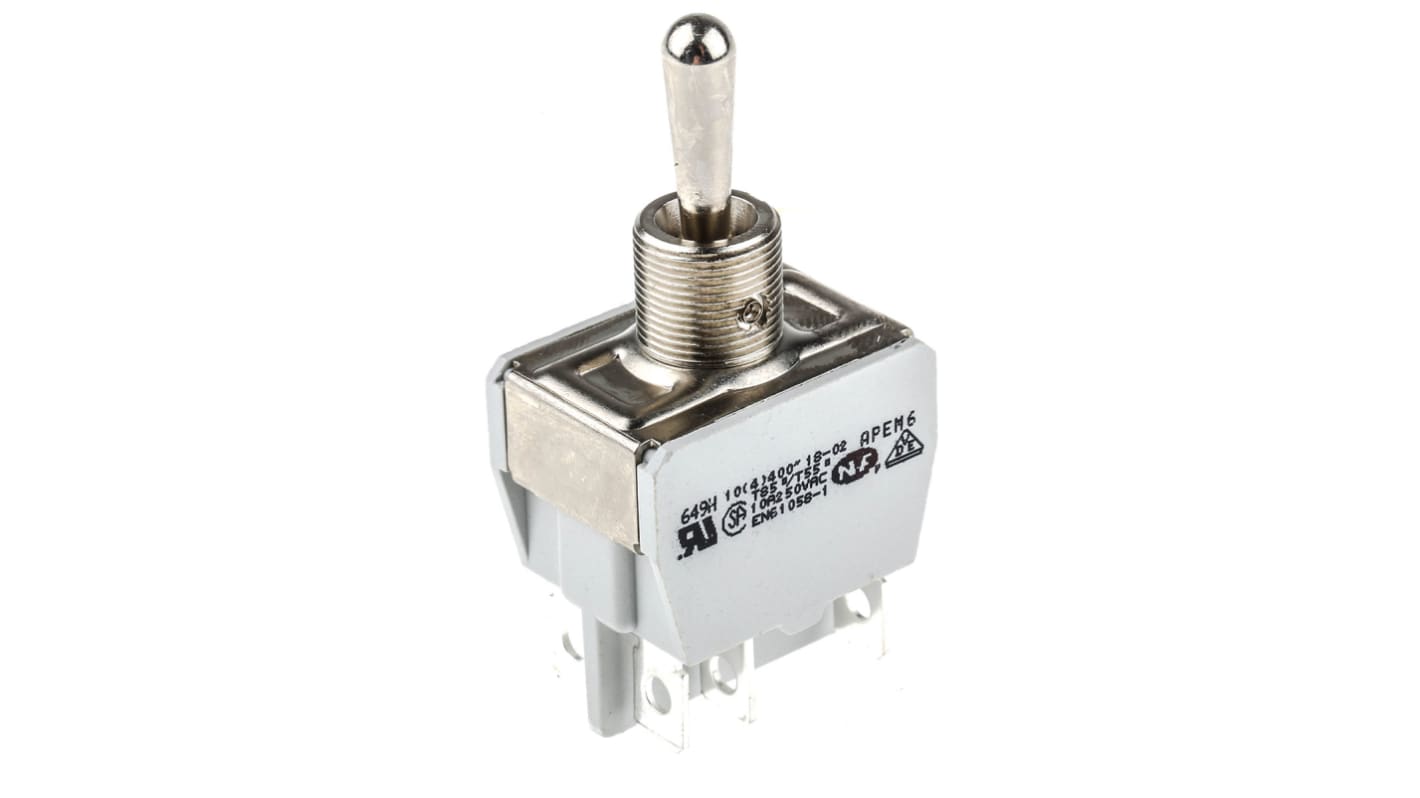

APEM Toggle Switch, Panel Mount, On-Off-On, DPST, Tab Terminal
- RS Stock No.:
- 251-9281
- Distrelec Article No.:
- 135-23-958
- Mfr. Part No.:
- 649H/2
- Brand:
- APEM
Bulk discount available
Subtotal (1 unit)*
£13.06
(exc. VAT)
£15.67
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 612 unit(s) ready to ship
- Plus 263 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 24 | £13.06 |
25 - 49 | £10.71 |
50 - 99 | £9.77 |
100 - 249 | £9.15 |
250 + | £8.36 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£13.11
(exc. VAT)
£15.73
(inc. VAT)
- RS Stock No.:
- 251-9281
- Distrelec Article No.:
- 135-23-958
- Mfr. Part No.:
- 649H/2
- Brand:
- APEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | APEM | |
Contact Configuration | DPST | |
Switch Operation | On-Off-On | |
Contact Current Rating | 10 A@ 24 V dc | |
Mounting Type | Panel Mount | |
Terminal Type | Tab | |
Actuator Length | 17.5mm | |
Actuator Material | Nickel Plated Brass | |
Contact Resistance | 0.01Ω | |
Contact Material | Silver Nickel Alloy | |
Minimum Operating Temperature | -20°C | |
Operating Temperature Range | -20 → +55°C | |
Maximum Operating Temperature | +55°C | |
Select all | ||
---|---|---|
Brand APEM | ||
Contact Configuration DPST | ||
Switch Operation On-Off-On | ||
Contact Current Rating 10 A@ 24 V dc | ||
Mounting Type Panel Mount | ||
Terminal Type Tab | ||
Actuator Length 17.5mm | ||
Actuator Material Nickel Plated Brass | ||
Contact Resistance 0.01Ω | ||
Contact Material Silver Nickel Alloy | ||
Minimum Operating Temperature -20°C | ||
Operating Temperature Range -20 → +55°C | ||
Maximum Operating Temperature +55°C | ||
- COO (Country of Origin):
- FR
Toggle Switches, Std, 15A Metal Lever
Single and double pole switches with a choice of flat insulated or nickel plated brass levers.
12mm mounting bush
250 ( 1/4 in.) terminals
Brass actuator and Melamine/Polyester case
Silver/Nickel Alloy contacts
12mm mounting bush
250 ( 1/4 in.) terminals
Brass actuator and Melamine/Polyester case
Silver/Nickel Alloy contacts
Note
For biased switches (on) refers to momentary (on) position
Approvals
UL; CSA
