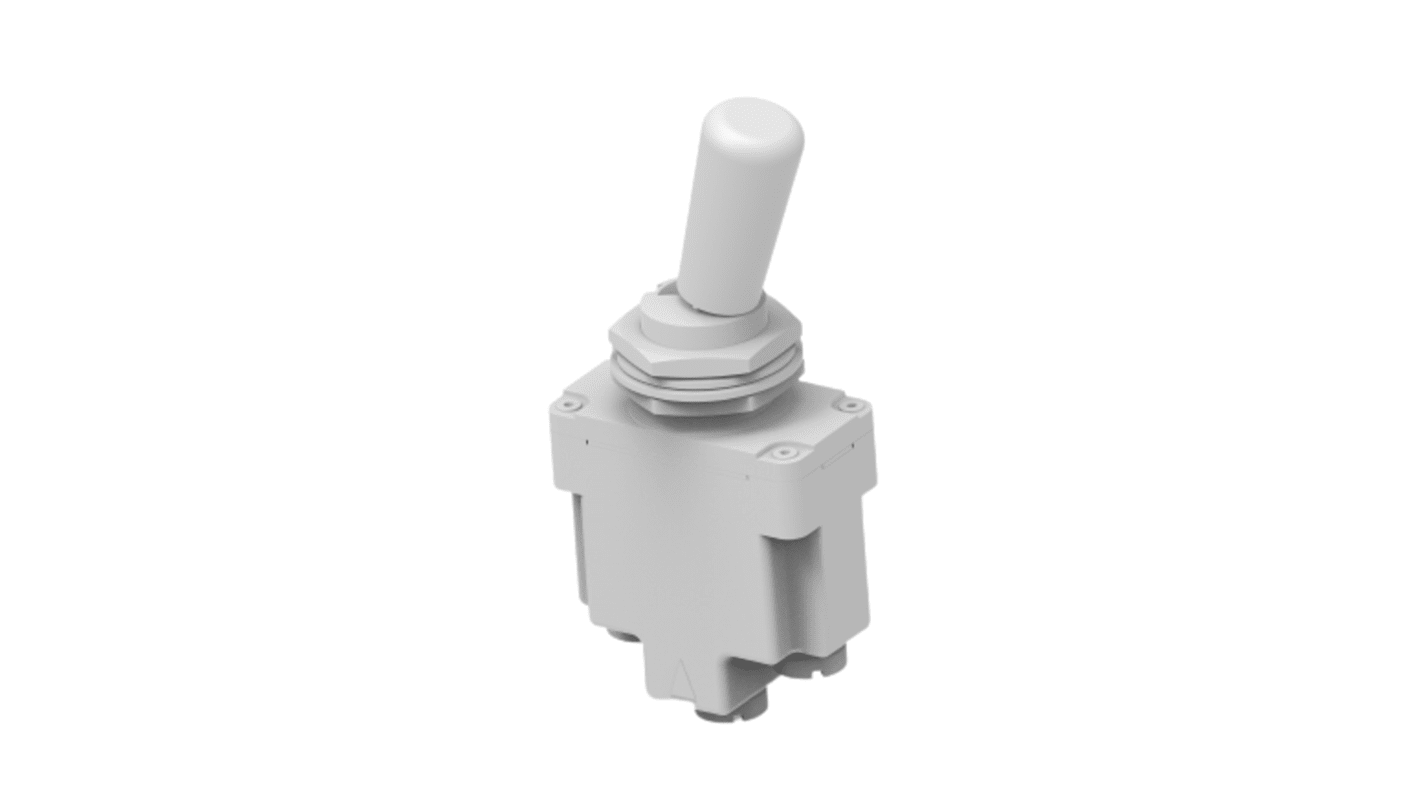

TE Connectivity Toggle Switch, Through Hole Mount, On-On, SPDT, Screw Terminal, 28 V dc, 115 V ac
- RS Stock No.:
- 223-8090
- Mfr. Part No.:
- 08-1-1-14
- Brand:
- TE Connectivity
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 223-8090
- Mfr. Part No.:
- 08-1-1-14
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Contact Configuration | SPDT | |
| Product Type | Toggle Switch | |
| Switch Operation | On-On | |
| Switch Contact Current | 15 A | |
| Mount Type | Through Hole | |
| Terminal Type | Screw | |
| IP Rating | IP68 | |
| Illuminated | No | |
| Minimum Operating Temperature | -55°C | |
| Contact DC Voltage | 28V dc | |
| Contact AC Voltage | 115V ac | |
| Actuator Material | Thermoplastic | |
| Maximum Operating Temperature | 85°C | |
| Switch Configuration | On-On | |
| Series | 08 | |
| Standards/Approvals | RoHS | |
| Length | 29mm | |
| Height | 30mm | |
| Width | 16 mm | |
| Mechanical Life | 100.000Cycles | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Contact Configuration SPDT | ||
Product Type Toggle Switch | ||
Switch Operation On-On | ||
Switch Contact Current 15 A | ||
Mount Type Through Hole | ||
Terminal Type Screw | ||
IP Rating IP68 | ||
Illuminated No | ||
Minimum Operating Temperature -55°C | ||
Contact DC Voltage 28V dc | ||
Contact AC Voltage 115V ac | ||
Actuator Material Thermoplastic | ||
Maximum Operating Temperature 85°C | ||
Switch Configuration On-On | ||
Series 08 | ||
Standards/Approvals RoHS | ||
Length 29mm | ||
Height 30mm | ||
Width 16 mm | ||
Mechanical Life 100.000Cycles | ||
The TE Connectivity toggle switch is mainly used as robust, industrial and durable switches in military vehicles. It is equipped with a safe switching mechanism, which is provided by an additional internal contact protection. It has 15 ampere current rating.
Military grade robustness VG 95 318
High quality silver alloy or gold plated contacts
Sealing technology meets IP68/IP6K8
Locking options for individual needs
-55° C to 85° C operating temperature range
