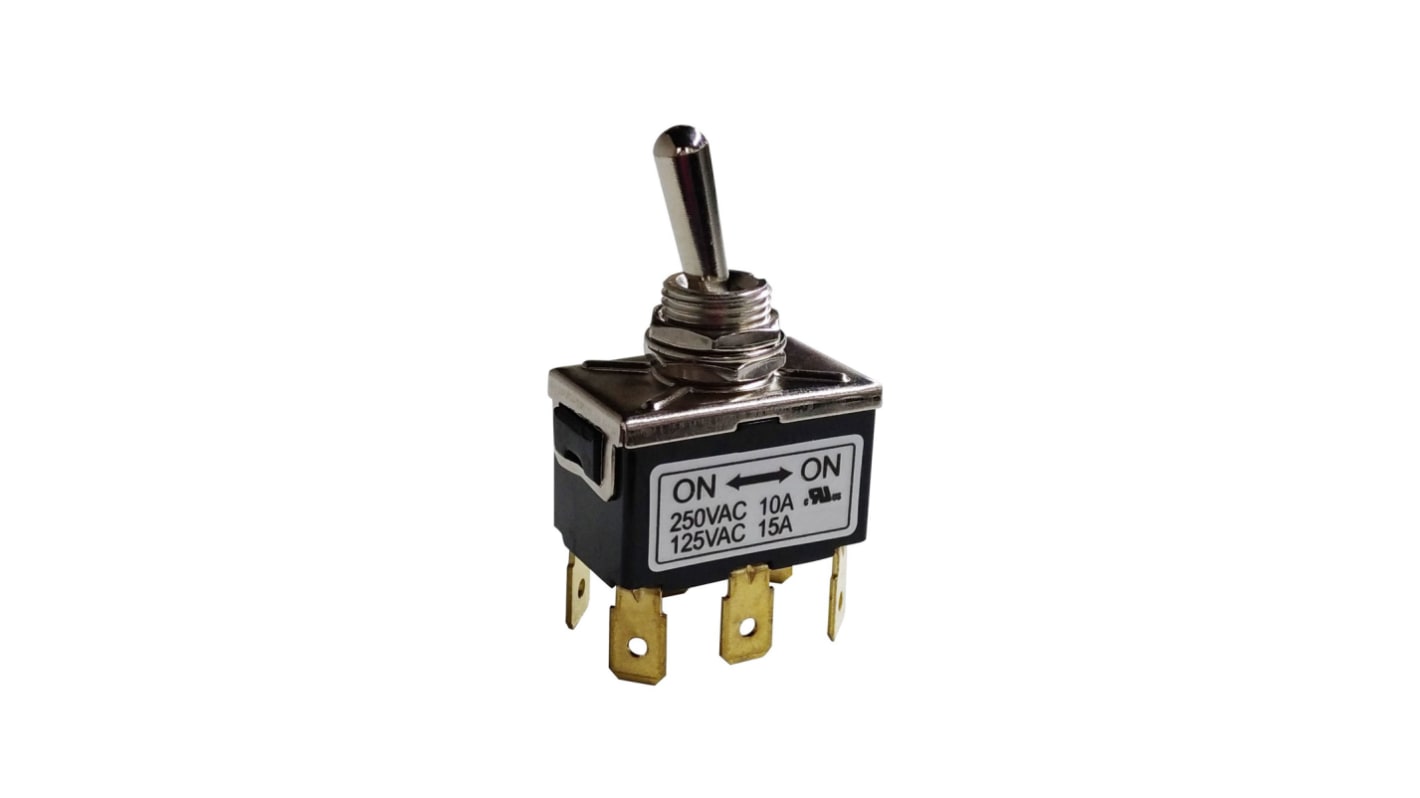

RS PRO Toggle Switch, PCB Mount, On-On, DPDT, Solder Terminal
- RS Stock No.:
- 206-6983
- Brand:
- RS PRO
11 In stock - FREE next working day delivery available
Added
Price Each
£7.24
(exc. VAT)
£8.69
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £7.24 |
| 10 - 49 | £6.68 |
| 50 - 99 | £5.85 |
| 100 + | £4.99 |
- RS Stock No.:
- 206-6983
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
RS PRO DPDT Toggle Switches
Introducing a range of DPDT toggle switches from RS PRO. These high-quality toggle switches offer a double pole double throw contact configuration that has two inputs and four outputs, 10A or 12A contact current ratings, and an operating temperature of -30°C to +85°C. RS PRO DPDT toggle switches are designed with screw or solder tab termination for PCB applications.
Why would you need a DPDT type toggle switch?
DPDT toggles are commonly used to control electric motors and electric linear actuators for example; giving you the capacity to reverse the polarity in the motor so it rotates in two different directions.
Handling & Storage
Prevent terminal oxidization on the switches by storing products in an environment that is dry and cool with relative humidity less than 90%.
Note: Prior to mounting products onto circuit board as well as for unused units, it is recommended to keep them within the sealed bag.
Material Characteristics
• Actuator: Brass
• Bushing: Aluminium die-casting alloy
• O ring: Silicone gasket
• Contact: Silver alloy
• Body: Nylon 66
• Terminals: Brass with tin plating
• Hardware: Steel with trivalent zinc plating
Features and Benefits
• Sealed electrical toggle switch
• Double pole double throw contact
• IP40/ IP68 front panel protection
• Brass actuator
• Operating temperature -30°C to +85°C
• UL & CUL & ENEC15 approved
10A Switch Operations
• On-On; RS stock no: 206-6982
• On-On; RS stock no: 206-6983
• On-Off-On; RS stock no: 206-6984
• On-Off-On; RS stock no: 206-6985
• (On)-Off-(On); RS stock no: 206-6986
• (On)-Off-(On); RS stock no: 206-6987
• (On)-On; RS stock no: 206-6988
• (On)-On; RS stock no: 206-6990
• (On)-Off-On; RS stock no: 206-6991
12A Switch Operations
• Momentary-Off-Momentary; RS stock no: 206-6977
• On-None-(On); RS stock no: 206-6975
• On-Off-On; RS stock no: 206-6976
• On-Off-On; RS stock no: 206-6978
Applications
Telecommunications
Aerospace
Automotive
Instrumentation control
Industrial Control Solutions
Material Handling
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | DPDT |
| Switch Operation | On-On |
| Contact Current Rating | 10 A |
| Mounting Type | PCB |
| Terminal Type | Solder |
| IP Rating | IP40 |
| Illuminated | No |
| Actuator Material | Brass |
