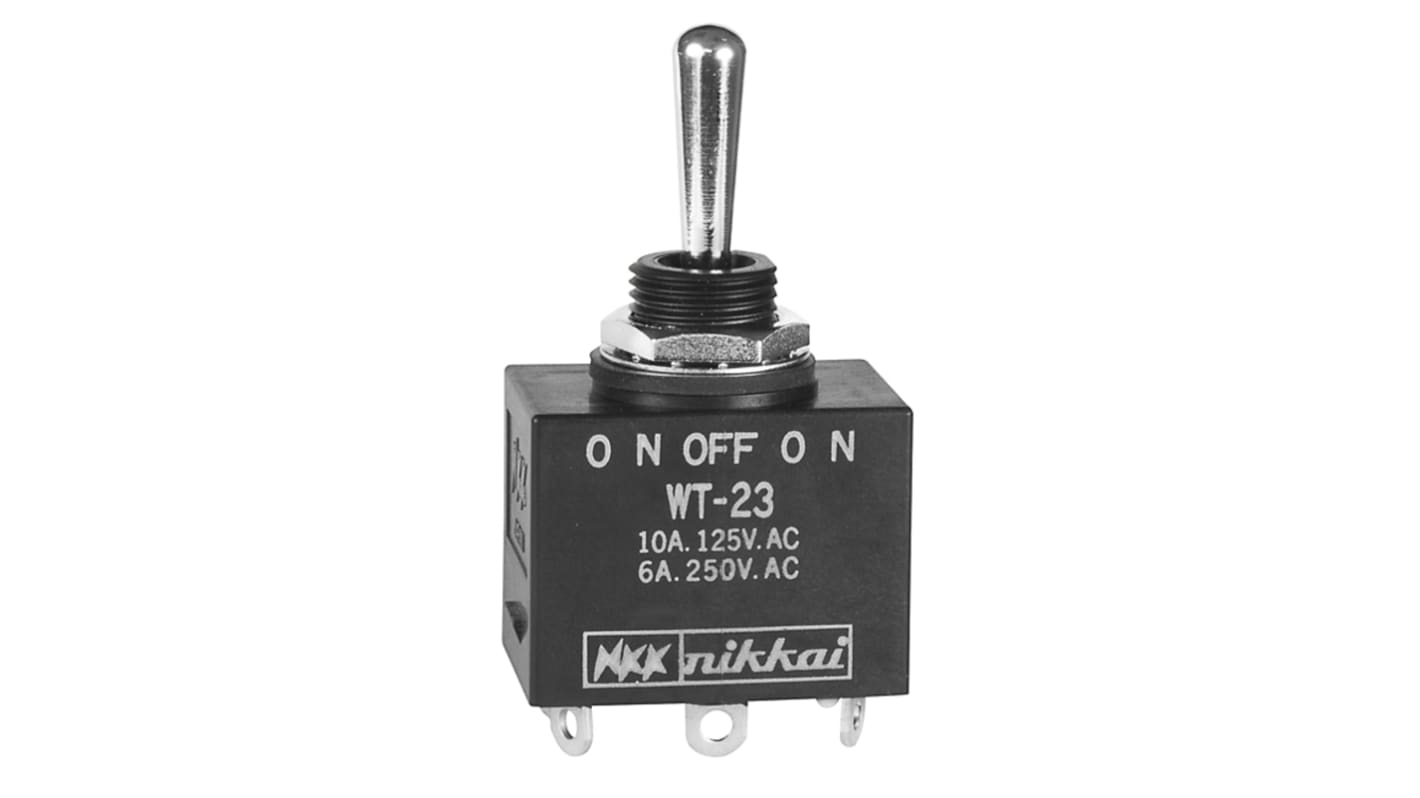

NKK Switches Toggle Switch, Panel Mount, On-Off-On, DPDT, Solder Terminal, 30 V dc, 125 V ac

View all Toggle Switches
Temporarily out of stock
RS Stock No.:
181-3679
Mfr. Part No.:
WT23S
Brand:
NKK Switches
Find similar products by selecting one or more attributes.
Select all

Brand

NKK Switches

Product Type

Toggle Switch

Contact Configuration

DPDT

Switch Operation

On-Off-On

Switch Contact Current

10 A (AC)

Mount Type

Panel

Terminal Type

Solder

IP Rating

IP60, IP67

Illuminated

No

Panel Cutout Size

12.5 mm

Actuator Length

17.5mm

Minimum Operating Temperature

-30°C

Contact DC Voltage

30V dc

Contact AC Voltage

125V ac

Actuator Material

Brass with Chrome Plated

Maximum Operating Temperature

70°C

Switch Configuration

On-Off-On

Standards/Approvals

CSA, UL

Series

WT

Mechanical Life

50000Operations

COO (Country of Origin):
CN
NKK's full line of toggles features both PC board and panel mounting options available with a full array of actuator options and terminations to meet virtually any application. Subminiature and ultra-miniature to dual seal waterproof and high-capacity toggle switches are offered. Matching indicators are available. Designed to perform and withstand extreme environments for critical applications such as construction equipment, transportation, and medical equipment. Our waterproof toggle switch is great for marine applications.

WT Series Environmentally Sealed Toggle Switches

10A Power Level, Bushing Mount, Environmentally Sealed, Optional Wire Leads

Available in 10A toggles, 6A push buttons and in 15A rockers.

Anti-jamming design on toggle switches protects contacts from damage caused by excessive downward force on the actuator.

Sealed construction allows for use in outdoor or harsh applications.
