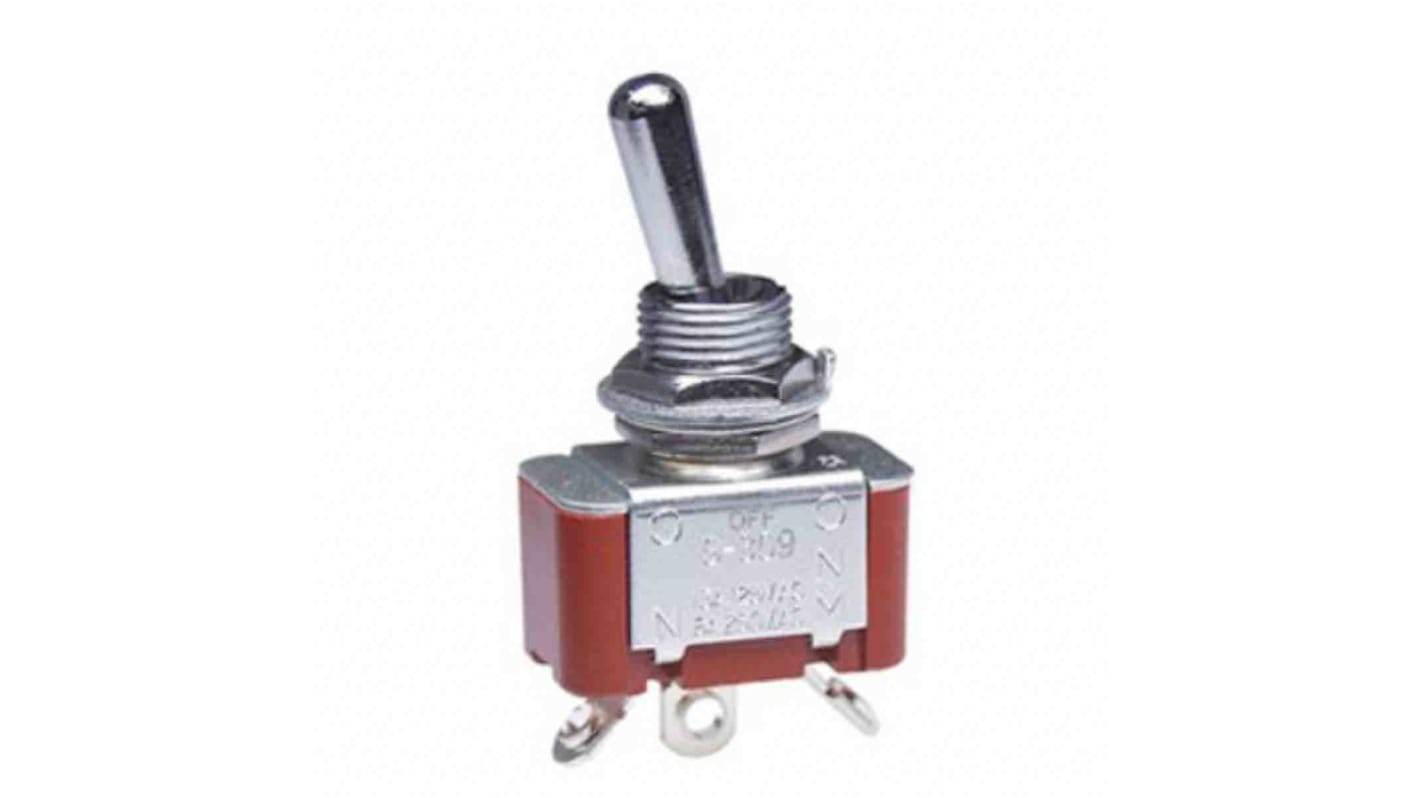

NKK Switches Toggle Switch, Panel Mount, Momentary-Off-On, SPDT, Solder Terminal, 30 V dc, 125 V ac

View all Toggle Switches

Subtotal (1 unit)*

£8.99

(exc. VAT)

£10.79

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£8.99

*price indicative

RS Stock No.:
195-9267
Mfr. Part No.:
S309
Brand:
NKK Switches
Find similar products by selecting one or more attributes.
Select all

Brand

NKK Switches

Contact Configuration

SPDT

Product Type

Toggle Switch

Switch Operation

Momentary-Off-On

Switch Contact Current

20 A

Mount Type

Panel

Terminal Type

Solder

Illuminated

No

Panel Cutout Size

12.5 mm

Contact DC Voltage

30V dc

Actuator Length

17.5mm

Minimum Operating Temperature

-10°C

Contact AC Voltage

125V ac

Maximum Operating Temperature

70°C

Actuator Material

Chrome Plated Brass

Switch Configuration

On-Off-On

Series

S

Standards/Approvals

UL, CSA

Length

28.5mm

Height

56.5mm

Mechanical Life

50000Operations

COO (Country of Origin):
PH
The NKK Switches toggle switch has SPDT contacts, and On-Off-Momentary circuit configuration. Terminals are made up brass with tin plating. Its operating temperature range is -10 to +70 °C. This product belongs to S series.

It is RoHS3 compliant

It has sturdy construction with high torque bushings

Medium/High capacity standard toggle switch
