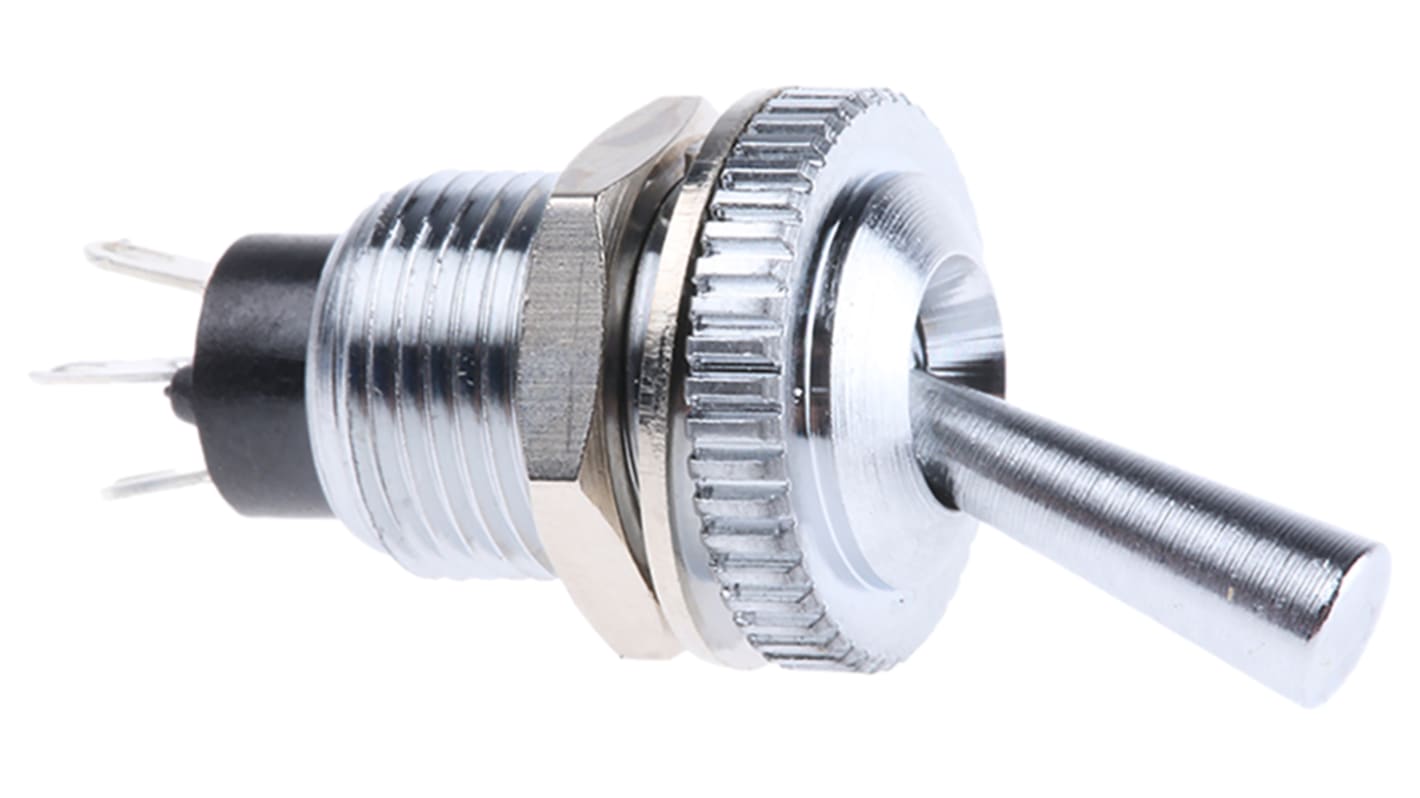

EOZ Toggle Switch, Panel Mount, On-On, SPDT, Solder Terminal, 48 V dc, 220 V ac
- RS Stock No.:
- 174-4155
- Mfr. Part No.:
- 01 17001 21
- Brand:
- EOZ
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£28.16
(exc. VAT)
£33.79
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 7 unit(s) shipping from 12 June 2026
- Plus 20 unit(s) shipping from 19 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £28.16 |
| 25 - 49 | £23.80 |
| 50 - 99 | £20.50 |
| 100 - 249 | £19.57 |
| 250 + | £18.92 |
*price indicative
- RS Stock No.:
- 174-4155
- Mfr. Part No.:
- 01 17001 21
- Brand:
- EOZ
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EOZ | |
| Product Type | Toggle Switch | |
| Contact Configuration | SPDT | |
| Switch Operation | On-On | |
| Switch Contact Current | 4.5A | |
| Mount Type | Panel | |
| Terminal Type | Solder | |
| IP Rating | IP67, IP65 | |
| Illuminated | No | |
| Panel Cutout Size | 10.2 mm | |
| Actuator Length | 10.9mm | |
| Contact DC Voltage | 48V dc | |
| Contact AC Voltage | 220V ac | |
| Minimum Operating Temperature | -40°C | |
| Switch Configuration | On-On | |
| Maximum Operating Temperature | 85°C | |
| Height | 35.2mm | |
| Standards/Approvals | LNZ, IEC, CECC, RoHS, OTAN, NFC, MIL | |
| Series | DJET | |
| Mechanical Life | 100000Operations | |
| Select all | ||
|---|---|---|
Brand EOZ | ||
Product Type Toggle Switch | ||
Contact Configuration SPDT | ||
Switch Operation On-On | ||
Switch Contact Current 4.5A | ||
Mount Type Panel | ||
Terminal Type Solder | ||
IP Rating IP67, IP65 | ||
Illuminated No | ||
Panel Cutout Size 10.2 mm | ||
Actuator Length 10.9mm | ||
Contact DC Voltage 48V dc | ||
Contact AC Voltage 220V ac | ||
Minimum Operating Temperature -40°C | ||
Switch Configuration On-On | ||
Maximum Operating Temperature 85°C | ||
Height 35.2mm | ||
Standards/Approvals LNZ, IEC, CECC, RoHS, OTAN, NFC, MIL | ||
Series DJET | ||
Mechanical Life 100000Operations | ||
- COO (Country of Origin):
- FR
DJET miniature switches
Range of lever switches offered in standard and watertight versions.
Quick-breaking (ON-ON) single-pole change-over switch function.
Can be used with peak current.
Excellent resistance to vibrations, shocks and jarring.
Highly stable contact resistance.
Approvals: CECC, NFC, MIL, OTAN, LNZ etc. for the tropical version
