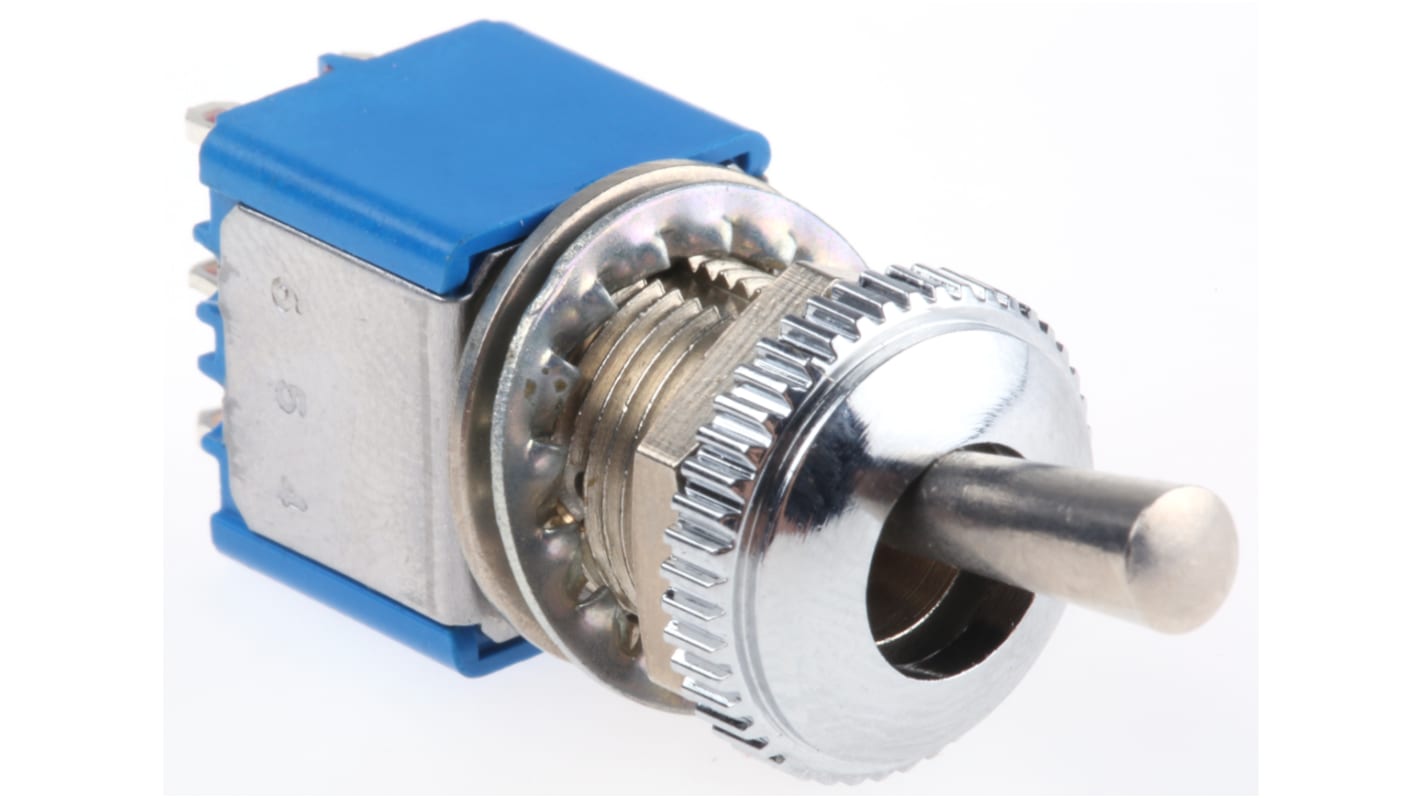

APEM Toggle Switch, Panel Mount, On-On, DPDT, Solder Terminal, 24 V dc, 220 V ac
- RS Stock No.:
- 236-9266
- Mfr. Part No.:
- 106462103
- Brand:
- APEM
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£17.26
(exc. VAT)
£20.71
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 152 unit(s) ready to ship
- Plus 11 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £17.26 |
| 25 - 49 | £14.16 |
| 50 - 99 | £12.95 |
| 100 - 249 | £12.08 |
| 250 + | £11.07 |
*price indicative
- RS Stock No.:
- 236-9266
- Mfr. Part No.:
- 106462103
- Brand:
- APEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Contact Configuration | DPDT | |
| Product Type | Toggle Switch | |
| Switch Operation | On-On | |
| Switch Contact Current | 3A | |
| Mount Type | Panel | |
| Terminal Type | Solder | |
| Illuminated | No | |
| Panel Cutout Size | 10.2 mm | |
| Contact AC Voltage | 220V ac | |
| Minimum Operating Temperature | -40°C | |
| Actuator Length | 11mm | |
| Contact DC Voltage | 24V dc | |
| Maximum Operating Temperature | 85°C | |
| Switch Configuration | 2,3 Position | |
| Actuator Material | Brass | |
| Series | 10600 | |
| Height | 38.2mm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand APEM | ||
Contact Configuration DPDT | ||
Product Type Toggle Switch | ||
Switch Operation On-On | ||
Switch Contact Current 3A | ||
Mount Type Panel | ||
Terminal Type Solder | ||
Illuminated No | ||
Panel Cutout Size 10.2 mm | ||
Contact AC Voltage 220V ac | ||
Minimum Operating Temperature -40°C | ||
Actuator Length 11mm | ||
Contact DC Voltage 24V dc | ||
Maximum Operating Temperature 85°C | ||
Switch Configuration 2,3 Position | ||
Actuator Material Brass | ||
Series 10600 | ||
Height 38.2mm | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- FR
Switches series 10600
Range of switches with threaded barrel Ø 10 mm.
Standard lever version.
Terminations sealed with epoxy resin.
