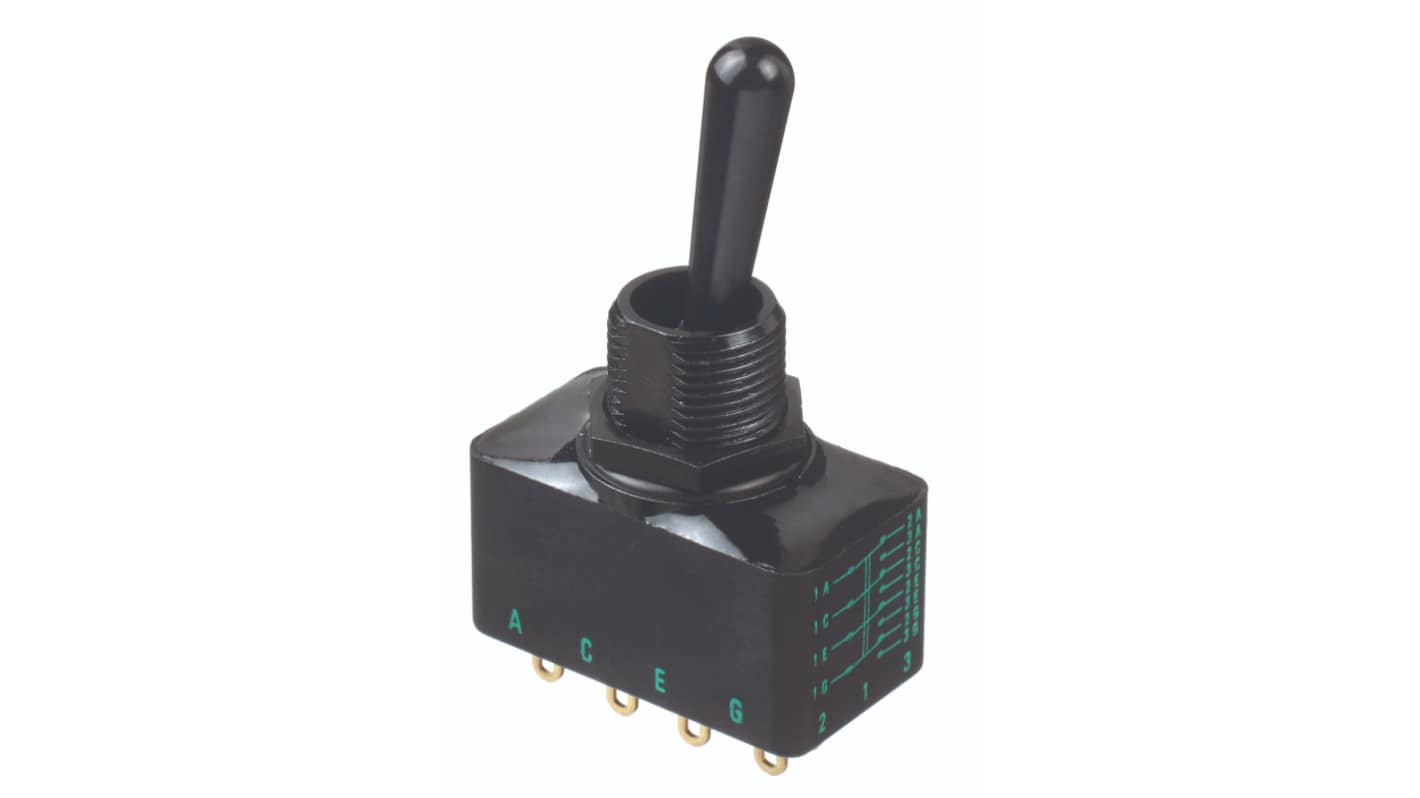

APEM Toggle Switch, Panel Mount, On-(On), DPST, Solder Lug Terminal, 30V dc

View all Toggle Switches

Subtotal (1 unit)*

£154.46

(exc. VAT)

£185.35

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 100 unit(s) shipping from 21 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£154.46

*price indicative

RS Stock No.:
562-158
Mfr. Part No.:
12166X778
Brand:
APEM
Find similar products by selecting one or more attributes.
Select all

Brand

APEM

Contact Configuration

DPST

Switch Operation

On-(On)

Contact Current Rating

4A

Mounting Type

Panel Mount

Terminal Type

Solder Lug

Voltage Rating

30V dc

COO (Country of Origin):
FR
The APEM Toggle Switch is designed for durability and reliable performance, with a maximum torque of 1.50 Nm (1.10 ft.lb) applied between the two nuts. It supports a standard panel thickness of 4.5 mm and operates in temperatures ranging from -40 °C to +85 °C. The case is made of diallylphthalate (DAP), while the actuator is chrome-plated brass. Both the bushing and housing are nickel-plated brass. It offers high insulation resistance of at least 1,000 MΩ at 500 VDC. With its sleek design and efficient functionality, this switch is perfect for various applications.

Several front panel sealing options
Several locking lever options
CECC approved
Robust construction
