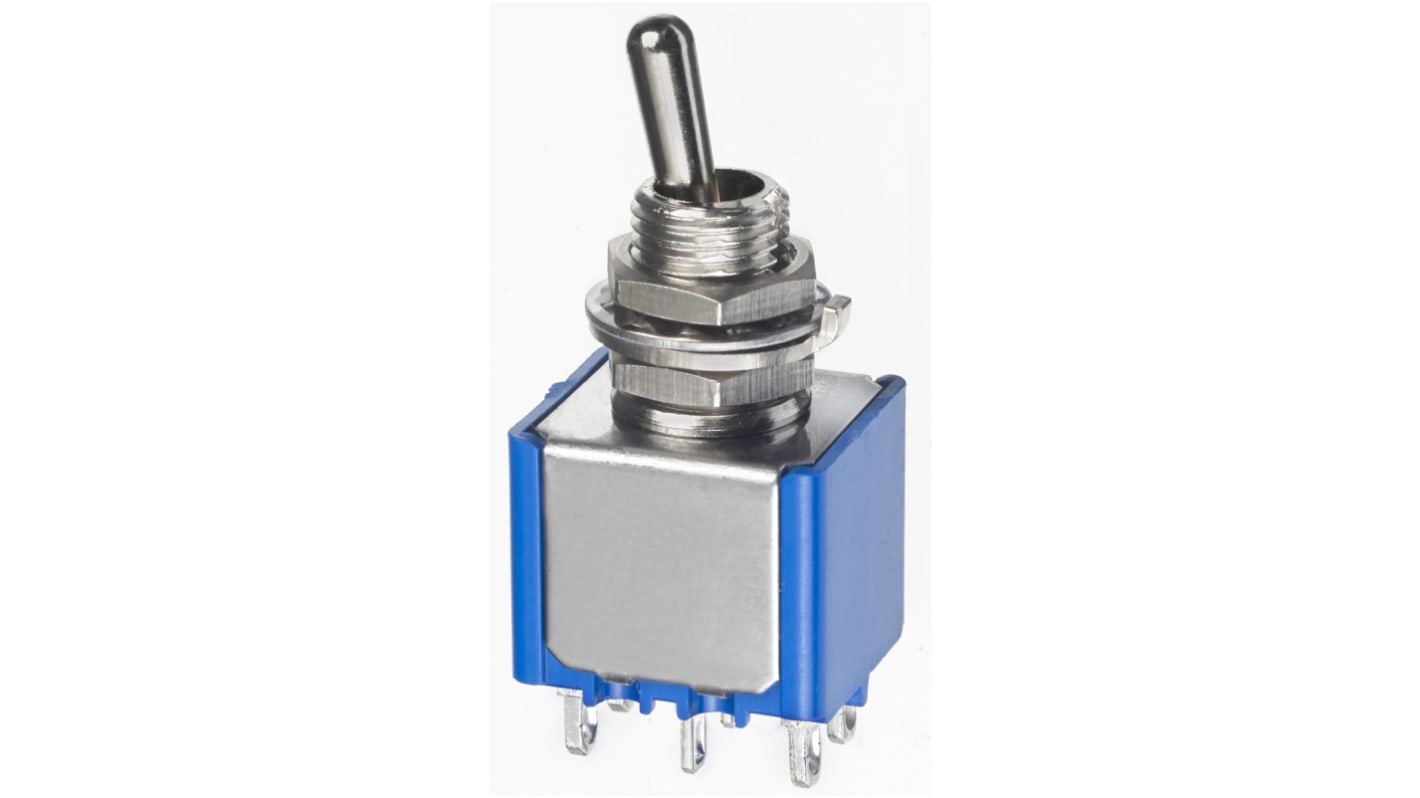

APEM Toggle Switch, Panel Mount, (On)-Off-(On), DPDT, Solder Lug Terminal, 30V dc
- RS Stock No.:
- 123-2417
- Mfr. Part No.:
- 5647A17
- Brand:
- APEM
Bulk discount available
Subtotal (1 unit)*
£10.30
(exc. VAT)
£12.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 31 unit(s) ready to ship
- Plus 14 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £10.30 |
| 25 - 49 | £8.45 |
| 50 - 99 | £7.73 |
| 100 - 249 | £7.21 |
| 250 + | £6.58 |
*price indicative
- RS Stock No.:
- 123-2417
- Mfr. Part No.:
- 5647A17
- Brand:
- APEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Contact Configuration | DPDT | |
| Switch Operation | (On)-Off-(On) | |
| Contact Current Rating | 4 A | |
| Mounting Type | Panel Mount | |
| Terminal Type | Solder Lug | |
| Illuminated | No | |
| Panel Cut Out Diameter | 6.5mm | |
| Actuator Length | 7mm | |
| Actuator Material | Brass | |
| Voltage Rating | 30V dc | |
| Contact Resistance | 10mΩ | |
| Panel Cut Out Size | 6.5 (Dia.)mm | |
| Contact Material | Silver | |
| Standards Met | CECC 96201-007, CSA, UL, UL Recognised, VDE | |
| Minimum Operating Temperature | -40°C | |
| Operating Temperature Range | -40 → +85°C | |
| Maximum Operating Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand APEM | ||
Contact Configuration DPDT | ||
Switch Operation (On)-Off-(On) | ||
Contact Current Rating 4 A | ||
Mounting Type Panel Mount | ||
Terminal Type Solder Lug | ||
Illuminated No | ||
Panel Cut Out Diameter 6.5mm | ||
Actuator Length 7mm | ||
Actuator Material Brass | ||
Voltage Rating 30V dc | ||
Contact Resistance 10mΩ | ||
Panel Cut Out Size 6.5 (Dia.)mm | ||
Contact Material Silver | ||
Standards Met CECC 96201-007, CSA, UL, UL Recognised, VDE | ||
Minimum Operating Temperature -40°C | ||
Operating Temperature Range -40 → +85°C | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- FR
Apem 5000 Series Short Lever Toggle Switch
Apem 5000 series of short lever toggle switches provide a reliable & robust solution to a wide variety of applications. Contacts on the toggle switches are gold plated, offering unrivaled connectivity and arcing resistance. Thanks to an IP67 rating, the 5000 series can be used within both internal & external applications.
Features and Benefits
Offered in 1 to 4 pole variants.
Various terminal options to ensure your application is covered.
Momentary and latching options available.
Suitable for use within both internal & external applications thanks to an IP67 rating.
Offered in 1 to 4 pole variants.
Various terminal options to ensure your application is covered.
Momentary and latching options available.
Suitable for use within both internal & external applications thanks to an IP67 rating.
