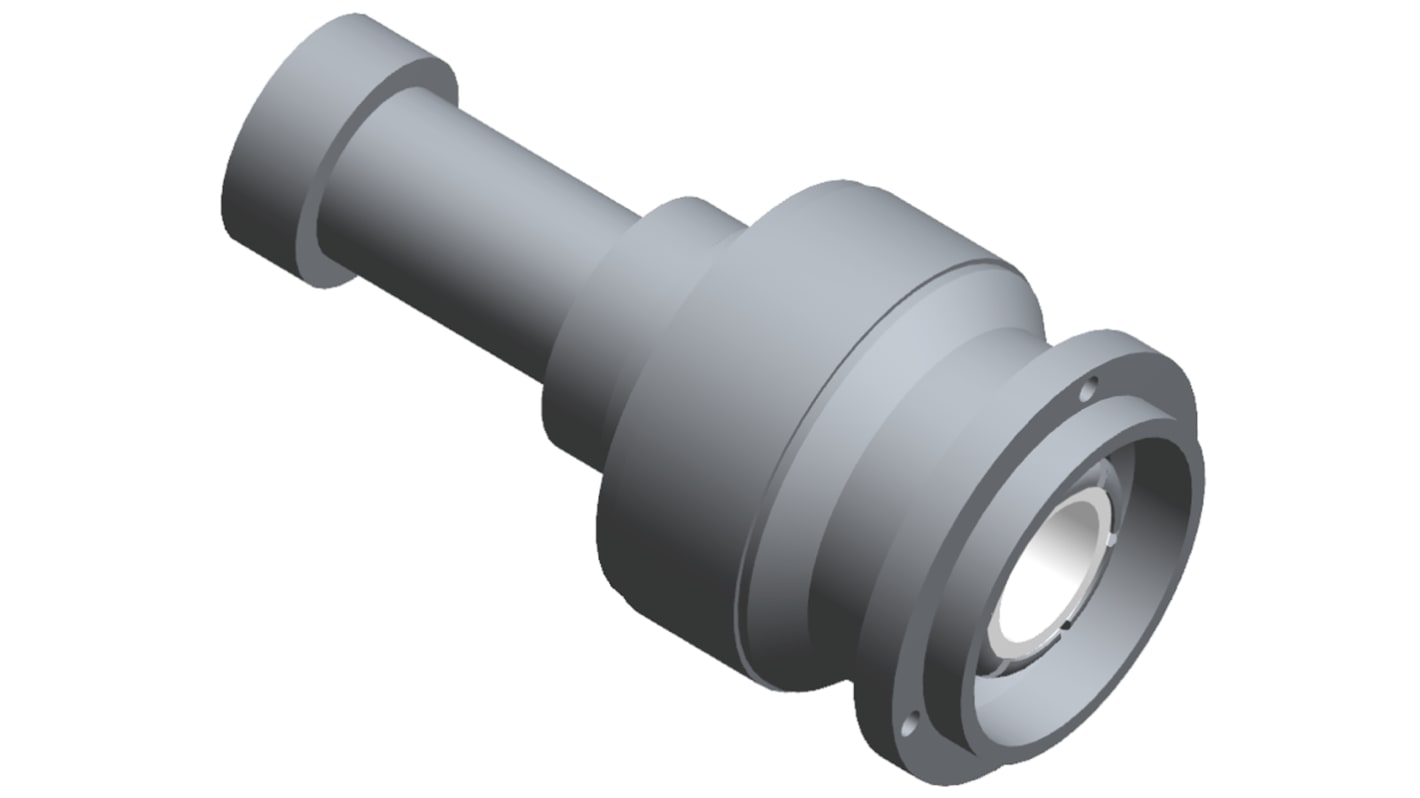

TE Connectivity, Plug Cable Mount, 50Ω, Crimp Termination, Straight Body
- RS Stock No.:
- 821-8795
- Mfr. Part No.:
- 225555-6
- Brand:
- TE Connectivity
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£1.36
(exc. VAT)
£1.63
(inc. VAT)
- RS Stock No.:
- 821-8795
- Mfr. Part No.:
- 225555-6
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Gender | Male | |
| Mounting Type | Cable Mount | |
| Impedance | 50Ω | |
| Termination Method | Crimp | |
| Body Orientation | Straight | |
| Cable Type | Coaxial | |
| Size | Standard | |
| Operating Frequency | 0 → 11GHz | |
| Body Plating | Nickel | |
| Polarity | Normal | |
| Contact Plating | Gold | |
| Priced to Clear | Yes | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Gender Male | ||
Mounting Type Cable Mount | ||
Impedance 50Ω | ||
Termination Method Crimp | ||
Body Orientation Straight | ||
Cable Type Coaxial | ||
Size Standard | ||
Operating Frequency 0 → 11GHz | ||
Body Plating Nickel | ||
Polarity Normal | ||
Contact Plating Gold | ||
Priced to Clear Yes | ||
Non Compliant
- COO (Country of Origin):
- MX
TE Connectivity 50 Ohm RF Coaxial Military Grade TNC Cable Mount Plug Connectors
A range of 50 Ohm RF coaxial TNC series weatherproof military cable mount plug connectors with a dual crimp termination, nickel plated body (apart from stock number 821-8880 which has a silver plated body) and gold centre contact. These 50 Ohm RF coax TNC connectors are available as straight or right angle mount and are for use with a variety of RF coaxial cables.
Stock numbers 782-7732, 821-8795 and 821-8880 are for use with RG-142/U, RG-142 A/U, RG-142 B/U coaxial cable
Stock number 820-7694 is for use with RG-8/U, RG-8 A/U and RG-213/U coaxial cable
Stock numbers 782-7732, 821-8795 and 821-8880 are for use with RG-142/U, RG-142 A/U, RG-142 B/U coaxial cable
Stock number 820-7694 is for use with RG-8/U, RG-8 A/U and RG-213/U coaxial cable
TE Connectivity - TNC Range
