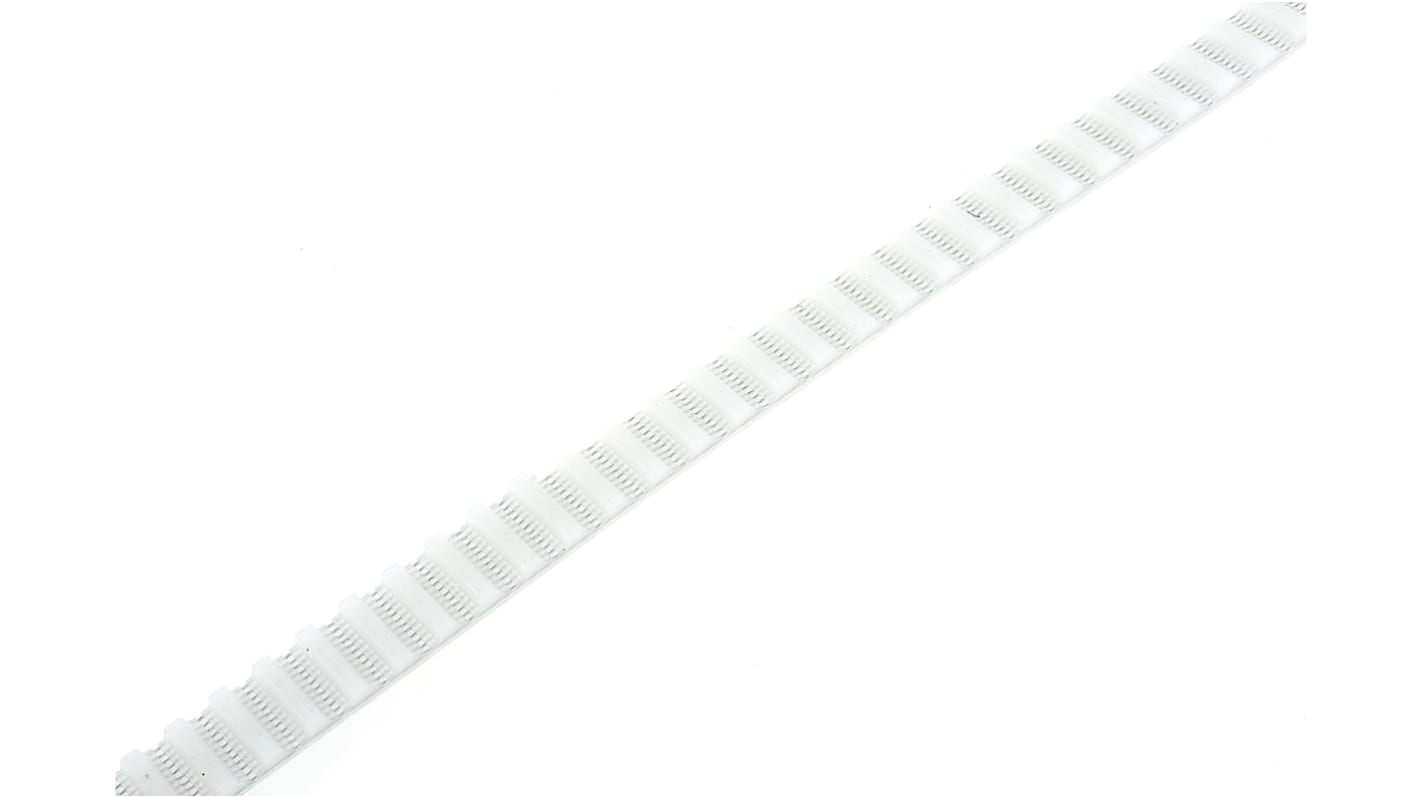

Contitech 10 / T5 / 700 SS Timing Belt, 140 Teeth, 700mm Length, 10mm Width
- RS Stock No.:
- 474-5707
- Mfr. Part No.:
- 10 / T5 / 700 SS
- Brand:
- Contitech
Bulk discount available
Subtotal (1 unit)*
£15.07
(exc. VAT)
£18.08
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 32 unit(s) shipping from 02 October 2025
- Plus 9 unit(s) shipping from 02 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £15.07 |
| 5 - 9 | £14.50 |
| 10 - 24 | £14.19 |
| 25 + | £13.85 |
*price indicative
- RS Stock No.:
- 474-5707
- Mfr. Part No.:
- 10 / T5 / 700 SS
- Brand:
- Contitech
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Contitech | |
| Length | 700mm | |
| Width | 10mm | |
| Pitch | 5mm | |
| Number of Teeth | 140 | |
| Material | Polyurethane | |
| Maximum Speed | 80m/s | |
| Tooth Height | 1.2mm | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +80°C | |
| Profile | T5 | |
Select all | ||
|---|---|---|
Brand Contitech | ||
Length 700mm | ||
Width 10mm | ||
Pitch 5mm | ||
Number of Teeth 140 | ||
Material Polyurethane | ||
Maximum Speed 80m/s | ||
Tooth Height 1.2mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +80°C | ||
Profile T5 | ||
- COO (Country of Origin):
- DE
Metric Pitch Timing Belts – Contitech Syncroflex®
Wear-resistant polyurethane contilan belt with high grade wire tension members. Resulting bond gives high flank load capacity combined with low elastic elongation. Suitable for all kinds of drives because of flexibility of belt material and high flexural strength of the steel tension members.
Belt speed up to 80m/s
Up to 40000rpm
Temperature range -30°C to +80°C
Efficient up to 98%
Maintenance-free
Resistant to oils, grease and petrol
Power rating 0.5kW (2.5mm pitch)
Power rating 5.0kW (5mm pitch)
Up to 40000rpm
Temperature range -30°C to +80°C
Efficient up to 98%
Maintenance-free
Resistant to oils, grease and petrol
Power rating 0.5kW (2.5mm pitch)
Power rating 5.0kW (5mm pitch)
