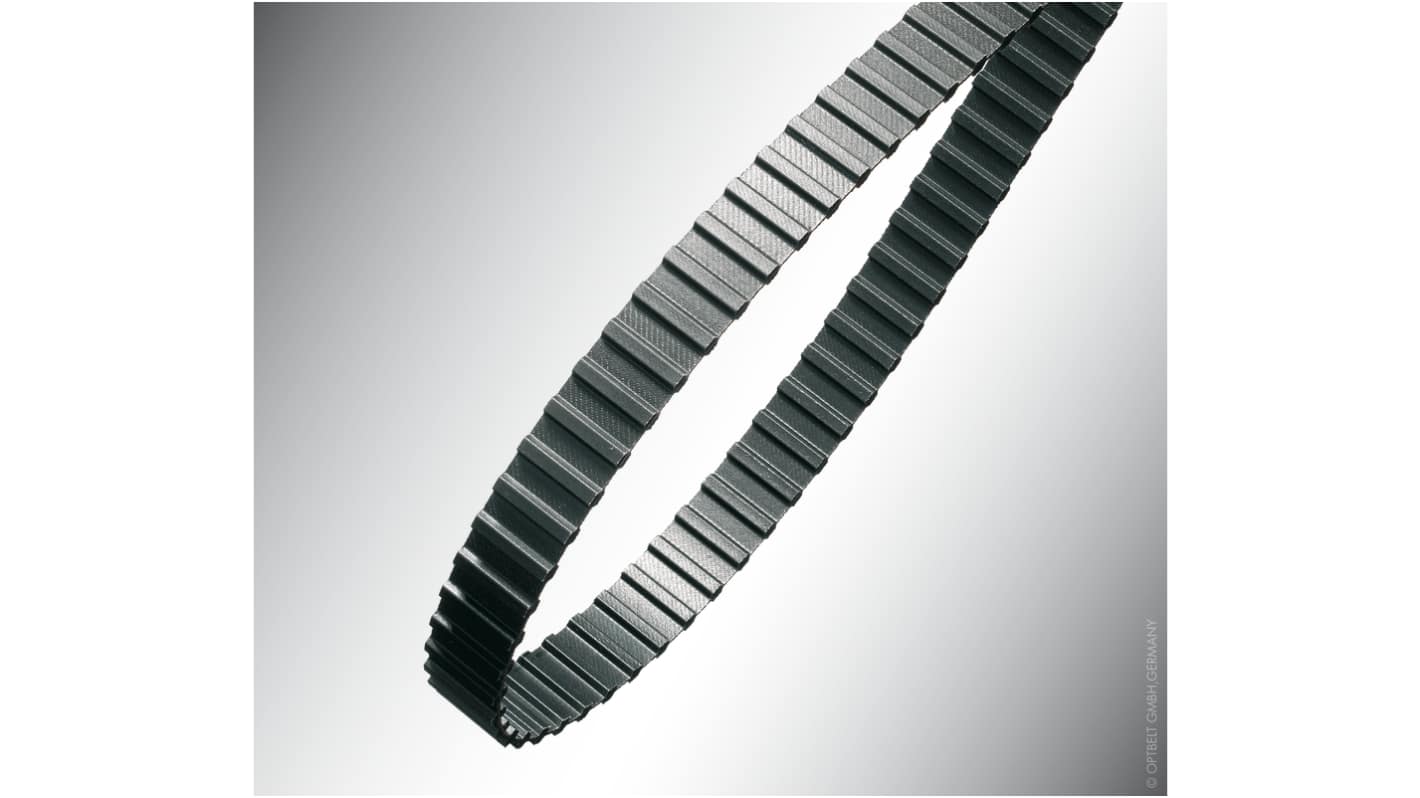

OPTIBELT 420 DL 075 Double Sided Timing Belt, 112 Teeth, 1066.8mm Length, 19.1mm Width
- RS Stock No.:
- 217-1613
- Mfr. Part No.:
- 420 DL 075
- Brand:
- OPTIBELT
Save 6% when you buy 25 units
Subtotal (1 unit)*
£68.44
(exc. VAT)
£82.13
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £68.44 |
| 5 - 9 | £67.06 |
| 10 - 24 | £65.70 |
| 25 + | £64.33 |
*price indicative
- RS Stock No.:
- 217-1613
- Mfr. Part No.:
- 420 DL 075
- Brand:
- OPTIBELT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OPTIBELT | |
| Length | 1066.8mm | |
| Width | 19.1mm | |
| Pitch | 9.5mm | |
| Number of Teeth | 112 | |
| Profile | DL | |
| Material | Rubber | |
| Series | ZR D | |
| Tooth Height | 1.9mm | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +100°C | |
Select all | ||
|---|---|---|
Brand OPTIBELT | ||
Length 1066.8mm | ||
Width 19.1mm | ||
Pitch 9.5mm | ||
Number of Teeth 112 | ||
Profile DL | ||
Material Rubber | ||
Series ZR D | ||
Tooth Height 1.9mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +100°C | ||
The OPTIBELT ZR series of DL profile double sided timing belts top layer consists of a flexible high quality chloroprene compound, the extremely flexible tension cords made of glass fibre and the abrasion-resistant protective fabric. The teeth are made of a shear and wear resistant rubber compound vulcanised to form a unit with the belt back. A certain level of oil, heat and cold resistance are standard features of ZR timing belts.
Broad performance range
Low bearing loading
High level of flexibility
Temperature range from -30°C to +100°C
Low bearing loading
High level of flexibility
Temperature range from -30°C to +100°C
