OPTIBELT 318 3MHP 9 Timing Belt, 106 Teeth, 318mm Length, 9mm Width
- RS Stock No.:
- 217-1399
- Mfr. Part No.:
- 318 3MHP 9
- Brand:
- OPTIBELT
Bulk discount available
Subtotal (1 unit)*
£6.24
(exc. VAT)
£7.49
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 5 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £6.24 |
| 5 - 9 | £6.12 |
| 10 - 24 | £6.00 |
| 25 + | £5.86 |
*price indicative
- RS Stock No.:
- 217-1399
- Mfr. Part No.:
- 318 3MHP 9
- Brand:
- OPTIBELT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OPTIBELT | |
| Length | 318mm | |
| Width | 9mm | |
| Pitch | 3mm | |
| Number of Teeth | 106 | |
| Profile | 3MHP | |
| Material | Rubber | |
| Series | OMEGA HP | |
| Tooth Height | 1.1mm | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +100°C | |
Select all | ||
|---|---|---|
Brand OPTIBELT | ||
Length 318mm | ||
Width 9mm | ||
Pitch 3mm | ||
Number of Teeth 106 | ||
Profile 3MHP | ||
Material Rubber | ||
Series OMEGA HP | ||
Tooth Height 1.1mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +100°C | ||

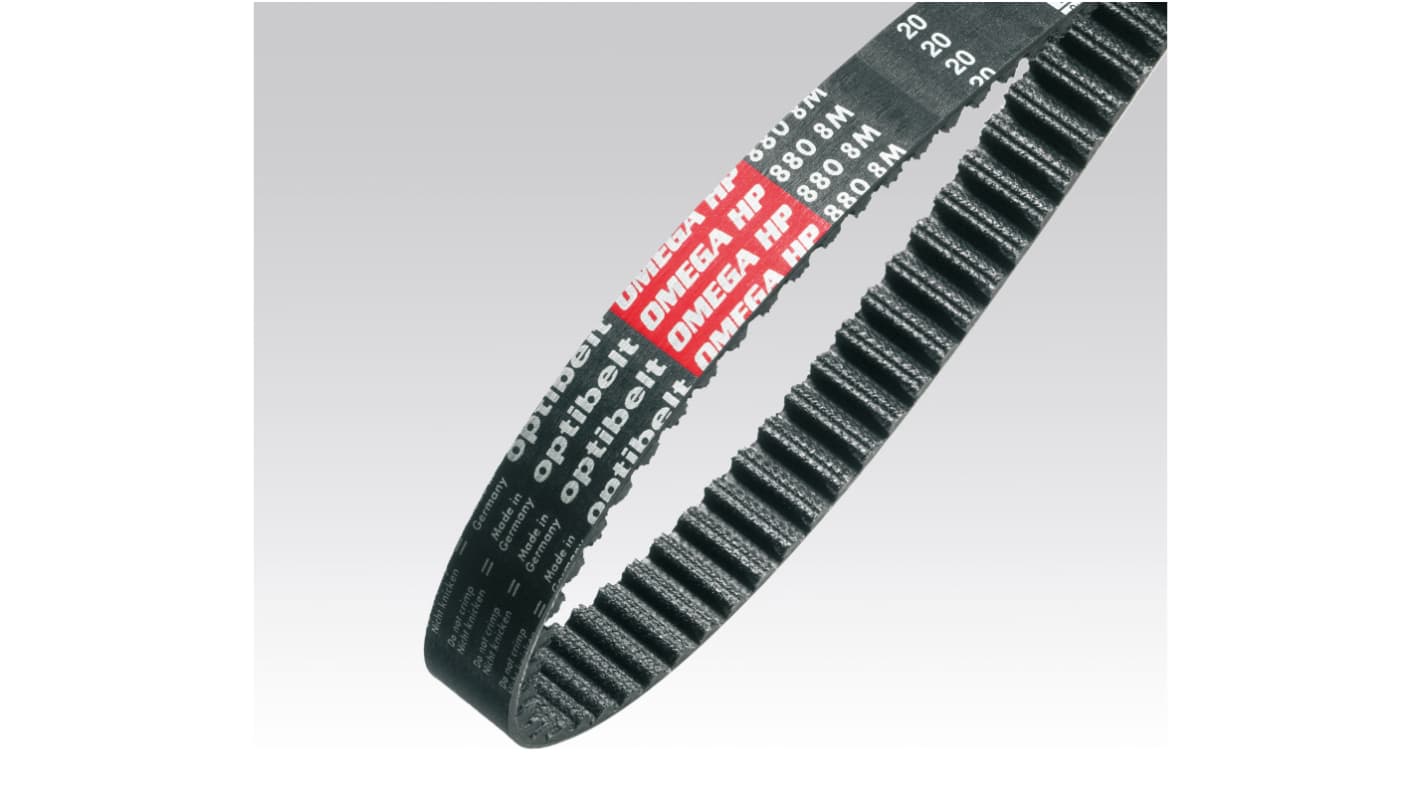

The OPTIBELT OMEGA HP high performance timing belt was especially developed for heavily loaded, high speed drive. Improved materials and highly developed process engineering are the basis for this very high performance level. The tension cords are reinforced pairs of counter twisted glass fibres.
High precision
Improved low-noise characteristics through OMEGA tooth form
Abrasion resistant fabric with low friction and shear resistant teeth
Up to two times the power transmission capability of standard OMEGA
For high loads at various speed
Improved low-noise characteristics through OMEGA tooth form
Abrasion resistant fabric with low friction and shear resistant teeth
Up to two times the power transmission capability of standard OMEGA
For high loads at various speed
