RS PRO Timing Belt, 100 Teeth, 500mm Length, 25mm Width

View all Timing Belts
Bulk discount available

Subtotal (1 unit)*

£12.77

(exc. VAT)

£15.32

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 18 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£12.77
5 - 9£12.52
10 - 24£12.26
25 +£12.01

*price indicative

RS Stock No.:
205-6041
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Length

500mm

Width

25mm

Pitch

5mm

Number of Teeth

100

Profile

5M

Material

Rubber

RoHS Status: Not Applicable

COO (Country of Origin):
CN

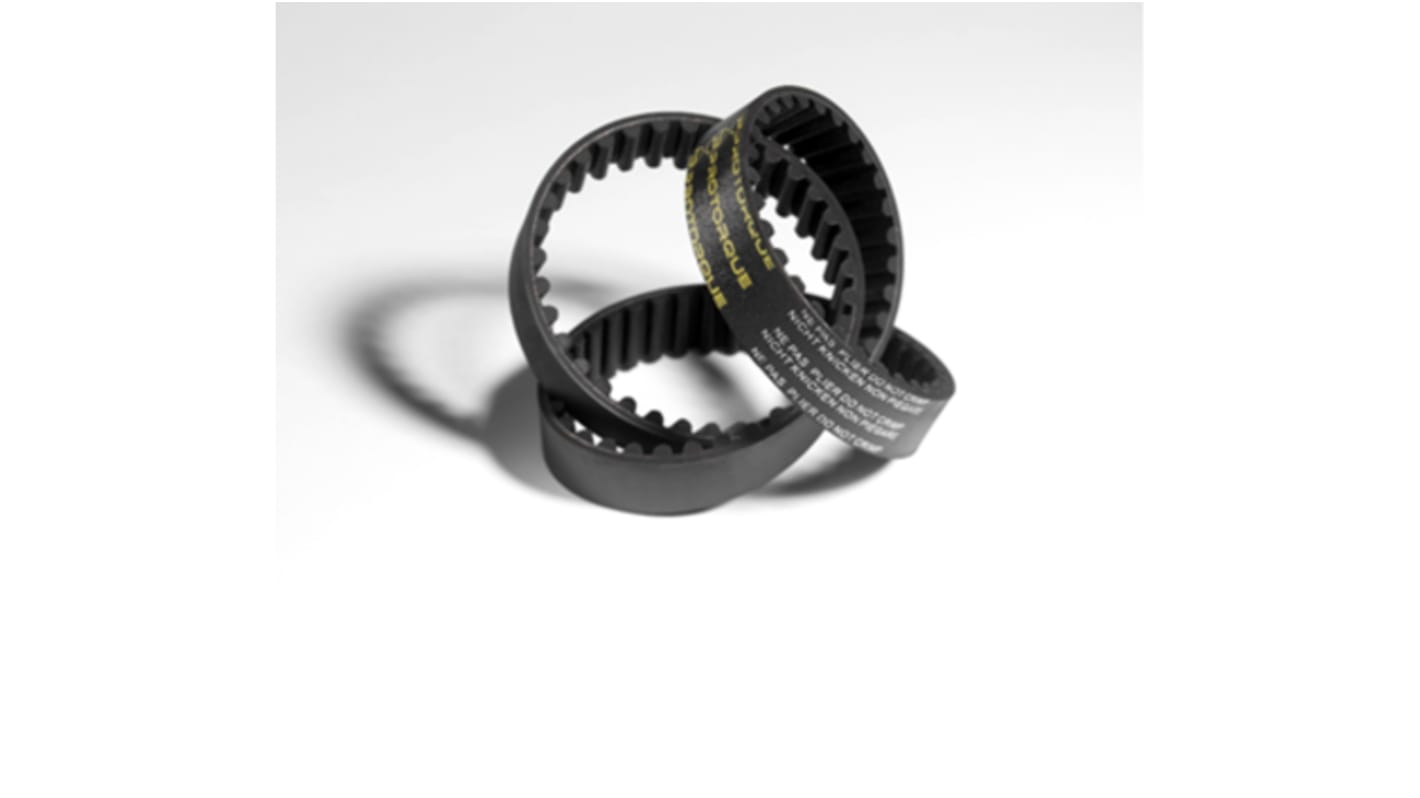

RS PRO Timing Belt


RS PRO introduces the HTD Timing Belt. RS PRO designed this rubber timing belt for use in a wide range of drive systems with their unique tooth geometry helping to guarantee a higher power transmission even in challenging low speed, high torque applications. Engineered with curvilinear HTD teeth this timing belt eliminates the high load stress at the tooth roots which is the most common weakness in traditional trapezoidal profile belts, allowing the RS PRO belt to operate much more smoothly and precisely.

Features and Benefits


  • Efficiently and reliably deliver high and consistent torque over a longer life in a smooth compact design with quieter operation

  • Curvilinear tooth profile improves load distribution and shear resistance giving higher torque and power transmission capabilities

  • Wide speed range and increased load-carrying capacity helps to provide constant driven speeds

  • High operating efficiency in comparison to other drive systems

  • No need for lubrication

  • Reduced belt tensioning and maintenance of constant lengths

  • Superior abrasion resistance and positive non-slip pulley engagement

  • Engineered from reinforced black rubber to ensure a long life span and durability

  • Timing belt length of 500mm with 100 teeth

Applications


HTD belts provide a high-performance drive system for many industries where durability and low maintenance are required. The curvilinear profile allows the belts to have a much larger contact area with the pulley, which improves performance. Made from reinforced rubber this timing belt is up to 99% efficient compared with the timing chains 91-98% efficiency. RS PRO has designed this HTD timing belt to be tough, durable and able to perform in many different environments including
Gardening equipment
Machine tools
Textile equipment
Packaging
Vending machines
Conveyor systems
