RS PRO Timing Belt, 59 Teeth, 295mm Length, 10mm Width
- RS Stock No.:
- 205-6037
- Brand:
- RS PRO
26 In stock - FREE next working day delivery available
10 available from Europe for delivery within 1 working day(s).
Total Price (1 Units)
£2.30
(exc. VAT)
£2.76
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £2.30 |
| 5 - 9 | £2.25 |
| 10 - 24 | £2.19 |
| 25 + | £2.15 |
- RS Stock No.:
- 205-6037
- Brand:
- RS PRO
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN

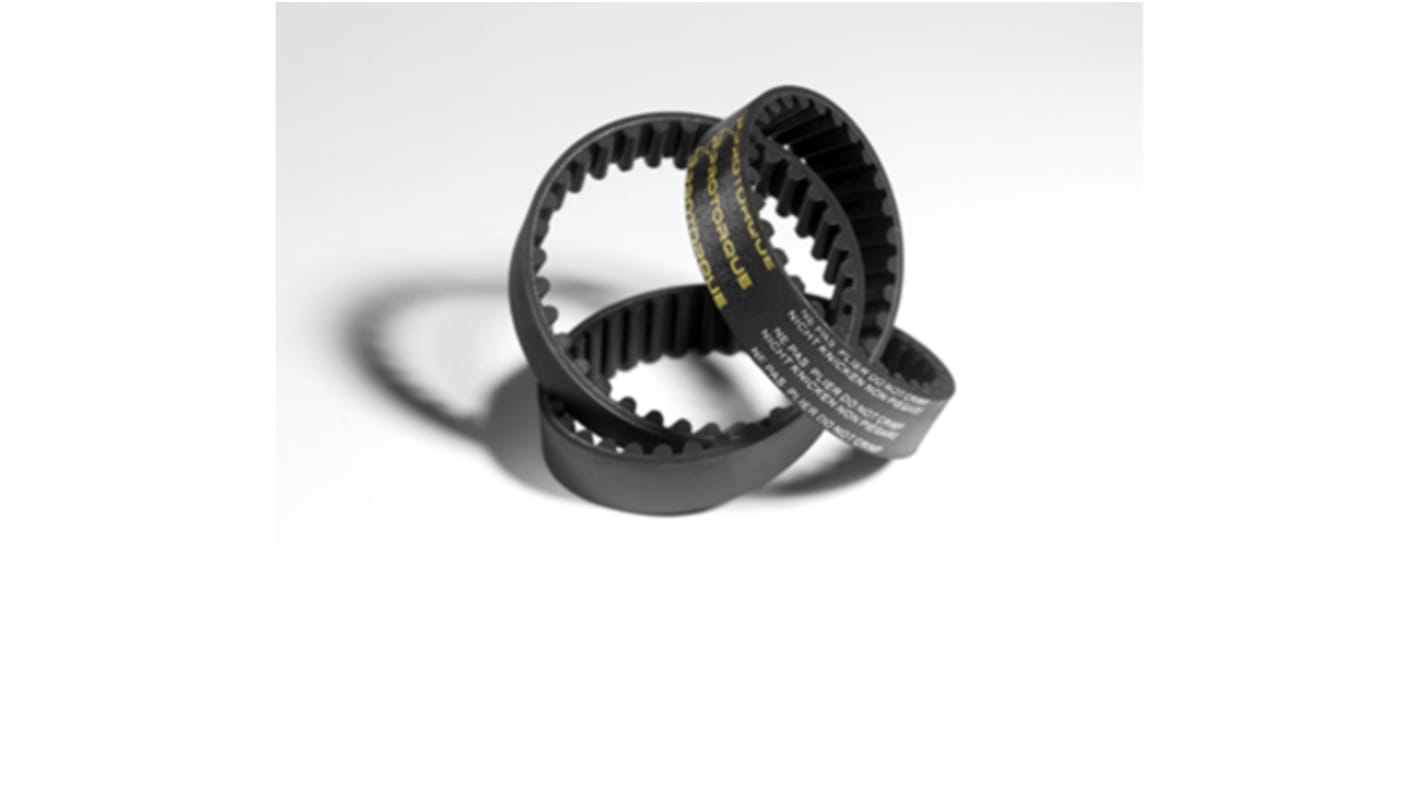

RS PRO Timing Belt
RS PRO introduces the HTD Timing Belt. RS PRO designed this rubber timing belt for use in a wide range of drive systems with their unique tooth geometry helping to guarantee a higher power transmission even in challenging low speed, high torque applications. Engineered with curvilinear HTD teeth this timing belt eliminates the high load stress at the tooth roots which is the most common weakness in traditional trapezoidal profile belts, allowing the RS PRO belt to operate much more smoothly and precisely.
Features and Benefits
- Efficiently and reliably deliver high and consistent torque over a longer life in a smooth compact design with quieter operation
- Curvilinear tooth profile improves load distribution and shear resistance giving higher torque and power transmission capabilities
- Wide speed range and increased load-carrying capacity helps to provide constant driven speeds
- High operating efficiency in comparison to other drive systems
- No need for lubrication
- Reduced belt tensioning and maintenance of constant lengths
- Superior abrasion resistance and positive non-slip pulley engagement
- Engineered from reinforced black rubber to ensure a long life span and durability
- Timing belt length of 295mm with 59 teeth
Applications
HTD belts provide a high-performance drive system for many industries where durability and low maintenance are required. The curvilinear profile allows the belts to have a much larger contact area with the pulley, which improves performance. Made from reinforced rubber this timing belt is up to 99% efficient compared with the timing chains 91-98% efficiency. RS PRO has designed this HTD timing belt to be tough, durable and able to perform in many different environments including
Gardening equipment
Machine tools
Textile equipment
Packaging
Vending machines
Conveyor systems
Gardening equipment
Machine tools
Textile equipment
Packaging
Vending machines
Conveyor systems
Why RS PRO?
RS Pro is our family brand to go-to and brings you a wide range of high-quality and high-value products to support your project. Trusted by engineers all over the world, every part of every RS PRO product is always rigorously tested against demanding industry standards. We are only giving the RS PRO seal of approval if we're confident of their exceptional quality, which means you can be convinced too.
Attribute | Value |
|---|---|
| Length | 295mm |
| Width | 10mm |
| Pitch | 5mm |
| Number of Teeth | 59 |
| Material | Rubber |
