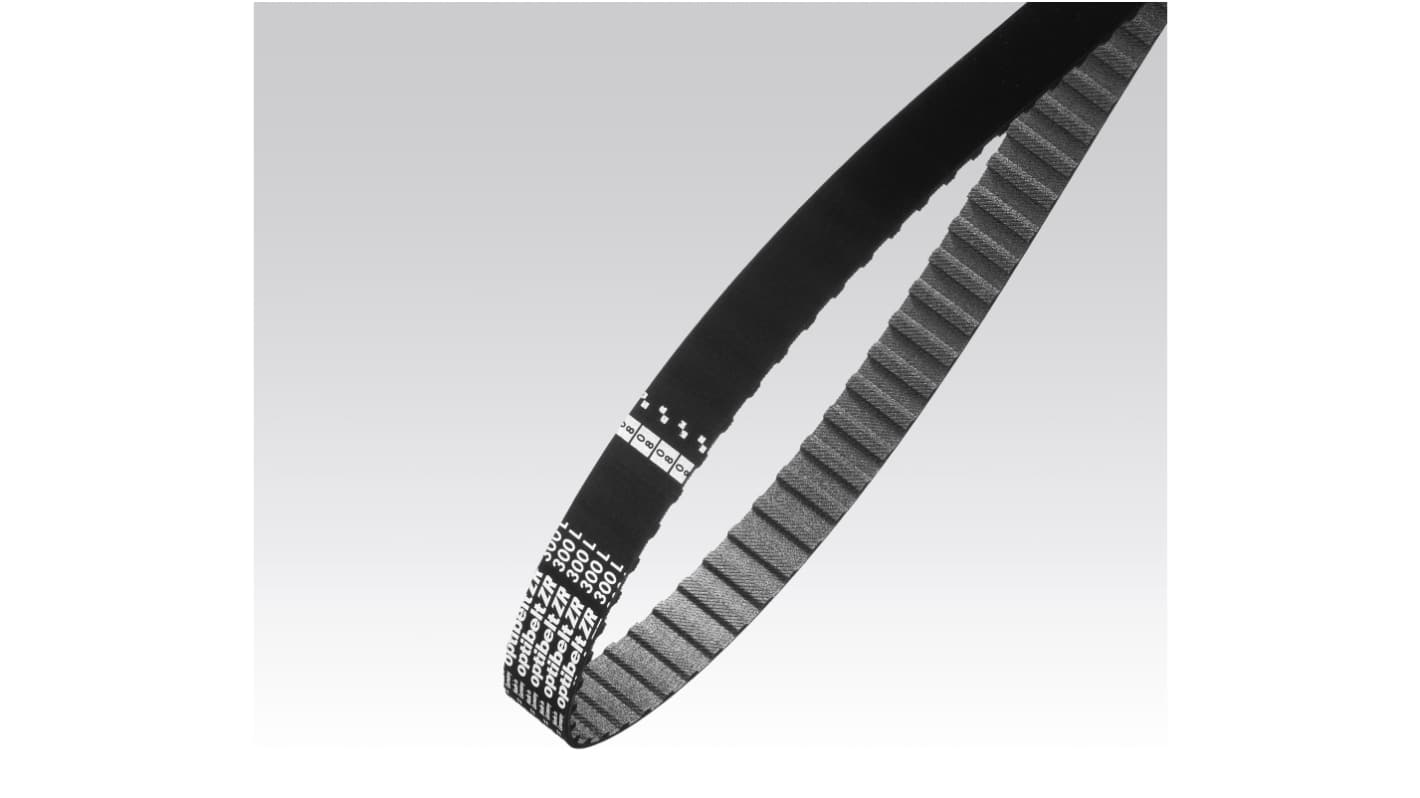

OPTIBELT 360 H 075 Timing Belt, 72 Teeth, 914.4mm Length, 19.1mm Width
- RS Stock No.:
- 204-3227
- Mfr. Part No.:
- 360 H 075
- Brand:
- OPTIBELT
Bulk discount available
Subtotal (1 unit)*
£17.73
(exc. VAT)
£21.28
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £17.73 |
| 5 - 9 | £17.02 |
| 10 - 24 | £16.68 |
| 25 + | £16.32 |
*price indicative
- RS Stock No.:
- 204-3227
- Mfr. Part No.:
- 360 H 075
- Brand:
- OPTIBELT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OPTIBELT | |
| Length | 914.4mm | |
| Width | 19.1mm | |
| Pitch | 12.7mm | |
| Number of Teeth | 72 | |
| Profile | H | |
| Material | Rubber | |
| Series | ZR | |
| Tooth Height | 2.3mm | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +100°C | |
| Select all | ||
|---|---|---|
Brand OPTIBELT | ||
Length 914.4mm | ||
Width 19.1mm | ||
Pitch 12.7mm | ||
Number of Teeth 72 | ||
Profile H | ||
Material Rubber | ||
Series ZR | ||
Tooth Height 2.3mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +100°C | ||
The Optibelt Timing Belt has 914mm pitch length. The linear belts with trapezoidal profile is manufactured from sleeves in a spiral cut method. This open-ended timing belts are reinforced with glass cord.
Pitch length 914mm
High level of tensile strength
Maximum angle misalignment of 0.67° (depending on width)
Maintenance-free
Established worldwide
For low levels of strain
Section standardised: ISO 5296 / ISO 5294
Standard roll length: 30 m
High level of tensile strength
Maximum angle misalignment of 0.67° (depending on width)
Maintenance-free
Established worldwide
For low levels of strain
Section standardised: ISO 5296 / ISO 5294
Standard roll length: 30 m
