OPTIBELT 570 H 150 Timing Belt, 114 Teeth, 1447.8mm Length, 38.1mm Width
- RS Stock No.:
- 204-2913
- Mfr. Part No.:
- 570 H 150
- Brand:
- OPTIBELT
Bulk discount available
Subtotal (1 unit)*
£45.97
(exc. VAT)
£55.16
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £45.97 |
| 5 - 9 | £44.13 |
| 10 - 24 | £43.22 |
| 25 + | £42.29 |
*price indicative
- RS Stock No.:
- 204-2913
- Mfr. Part No.:
- 570 H 150
- Brand:
- OPTIBELT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OPTIBELT | |
| Length | 1447.8mm | |
| Width | 38.1mm | |
| Pitch | 12.7mm | |
| Number of Teeth | 114 | |
| Profile | H | |
| Material | Rubber | |
| Series | ZR | |
| Tooth Height | 2.3mm | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +100°C | |
Select all | ||
|---|---|---|
Brand OPTIBELT | ||
Length 1447.8mm | ||
Width 38.1mm | ||
Pitch 12.7mm | ||
Number of Teeth 114 | ||
Profile H | ||
Material Rubber | ||
Series ZR | ||
Tooth Height 2.3mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +100°C | ||

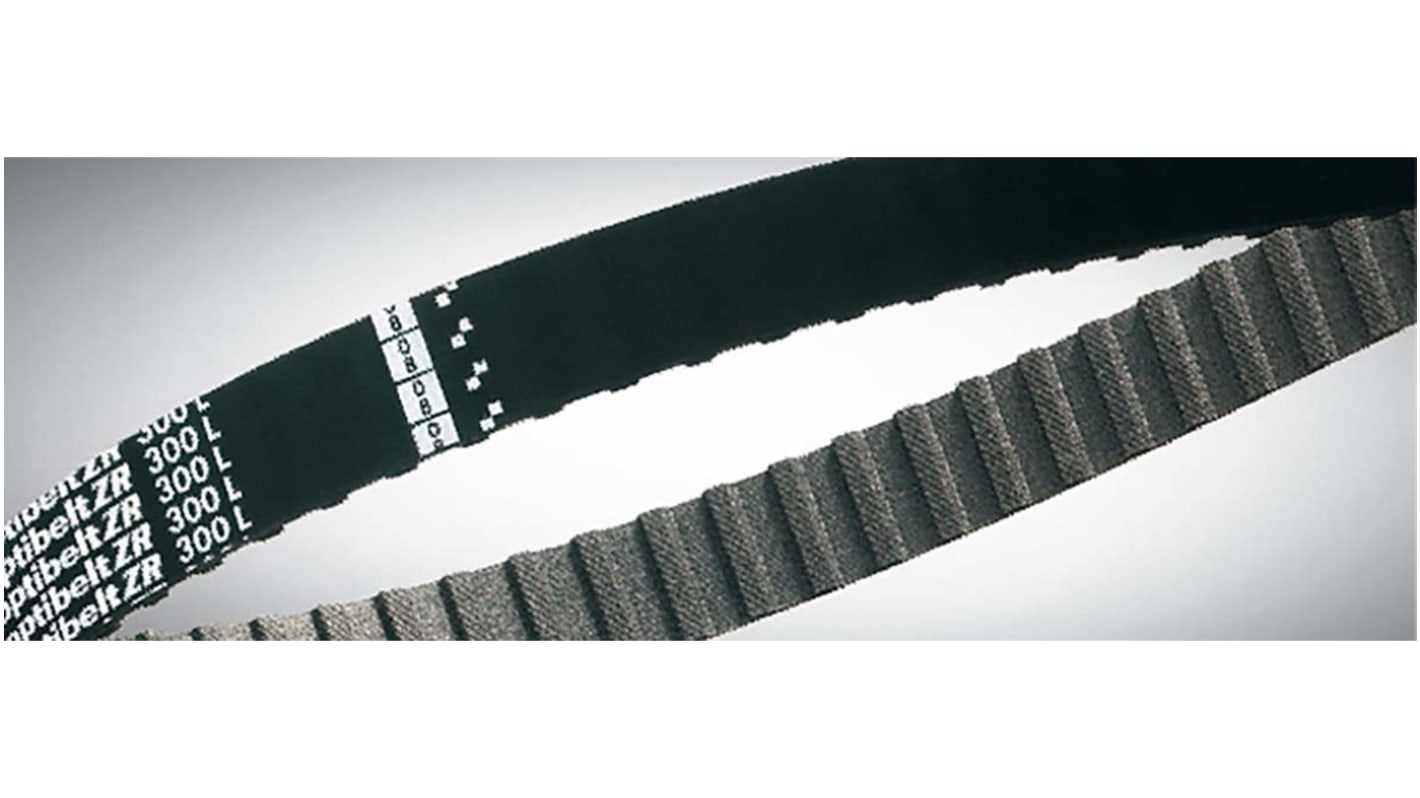

The Optibelt Timing Belt has 1447mm pitch length. The linear belts with trapezoidal profile is manufactured from sleeves in a spiral cut method. This open-ended timing belts are reinforced with glass cord.
Pitch length 1447mm
High level of tensile strength
Maximum angle misalignment of 0.67° (depending on width)
Maintenance-free
Established worldwide
For low levels of strain
Section standardised: ISO 5296 / ISO 5294
Standard roll length: 30 m
High level of tensile strength
Maximum angle misalignment of 0.67° (depending on width)
Maintenance-free
Established worldwide
For low levels of strain
Section standardised: ISO 5296 / ISO 5294
Standard roll length: 30 m
