OPTIBELT 450 5M 15 Timing Belt, 90 Teeth, 450mm Length, 15mm Width
- RS Stock No.:
- 204-2885
- Mfr. Part No.:
- 450 5M 15
- Brand:
- OPTIBELT
Bulk discount available
Subtotal (1 unit)*
£10.19
(exc. VAT)
£12.23
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
- Plus 4 unit(s) shipping from 13 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £10.19 |
5 - 9 | £9.77 |
10 - 24 | £9.59 |
25 + | £9.38 |
*price indicative
- RS Stock No.:
- 204-2885
- Mfr. Part No.:
- 450 5M 15
- Brand:
- OPTIBELT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | OPTIBELT | |
Length | 450mm | |
Width | 15mm | |
Pitch | 5mm | |
Number of Teeth | 90 | |
Profile | 5M | |
Material | Rubber | |
Series | OMEGA | |
Tooth Height | 1.9mm | |
Minimum Operating Temperature | -30°C | |
Maximum Operating Temperature | +100°C | |
Select all | ||
---|---|---|
Brand OPTIBELT | ||
Length 450mm | ||
Width 15mm | ||
Pitch 5mm | ||
Number of Teeth 90 | ||
Profile 5M | ||
Material Rubber | ||
Series OMEGA | ||
Tooth Height 1.9mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +100°C | ||

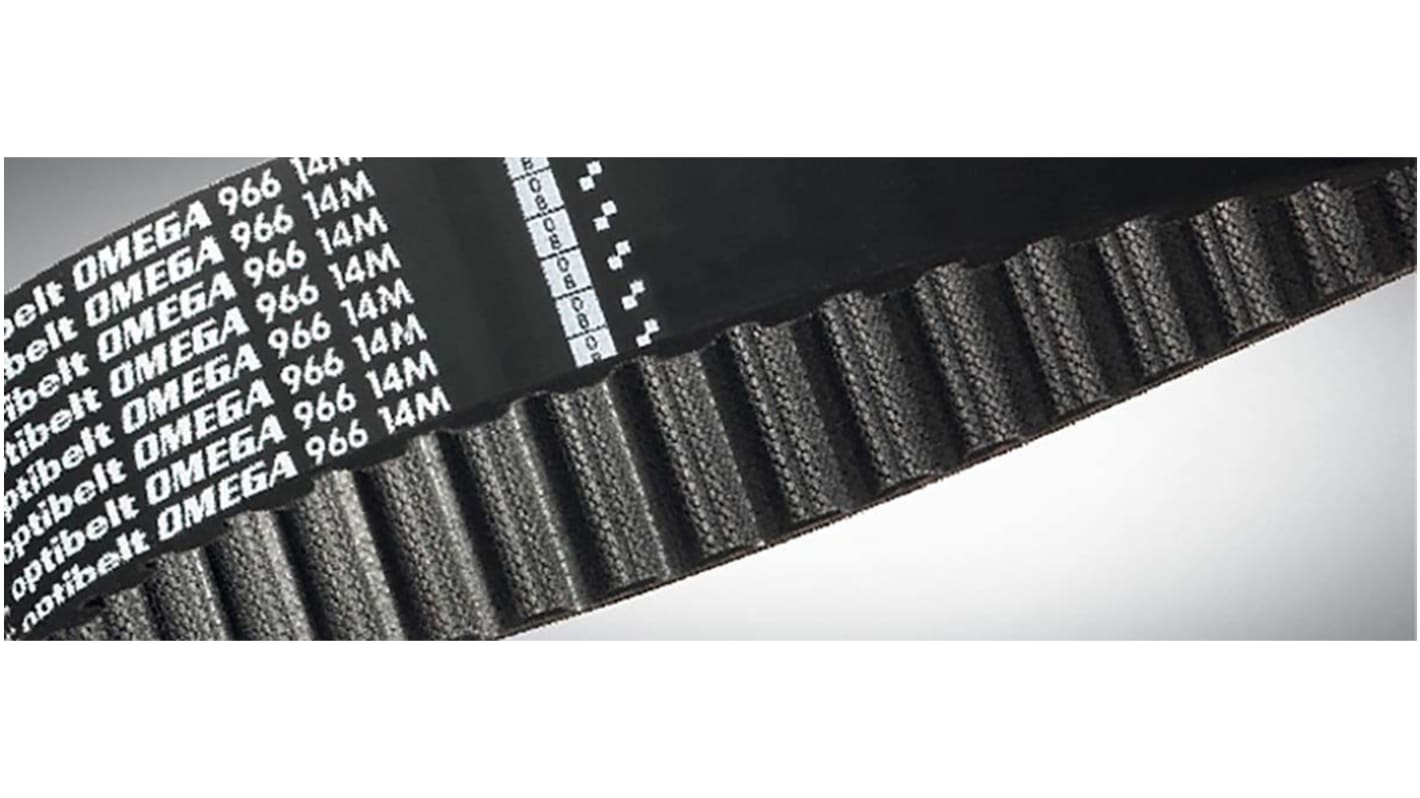

The Optibelt Timing Belt has 450mm pitch length. The linear belt is open-ended timing belts with glass cord manufactured from sleeves in a spiral cut method.
Pitch length 450mm
High level of tensile strength
Low stretch
High positioning accuracy
Lower noise level than opt belt HTD, opt belt ZR and polyurethane timing belts
Maximum angle misalignment of 0.67° (depending on width)
Maintenance-free
For medium and
High level of tensile strength
Low stretch
High positioning accuracy
Lower noise level than opt belt HTD, opt belt ZR and polyurethane timing belts
Maximum angle misalignment of 0.67° (depending on width)
Maintenance-free
For medium and
