- RS Stock No.:
- 182-1305
- Mfr. Part No.:
- HTD 276-3M-06
- Brand:
- Contitech
9 In stock - FREE next working day delivery available
Added
Price Each
£3.18
(exc. VAT)
£3.82
(inc. VAT)
Units | Per unit |
1 - 4 | £3.18 |
5 - 9 | £3.07 |
10 - 24 | £2.98 |
25 + | £2.93 |
- RS Stock No.:
- 182-1305
- Mfr. Part No.:
- HTD 276-3M-06
- Brand:
- Contitech
Technical Reference
Legislation and Compliance
Product Details

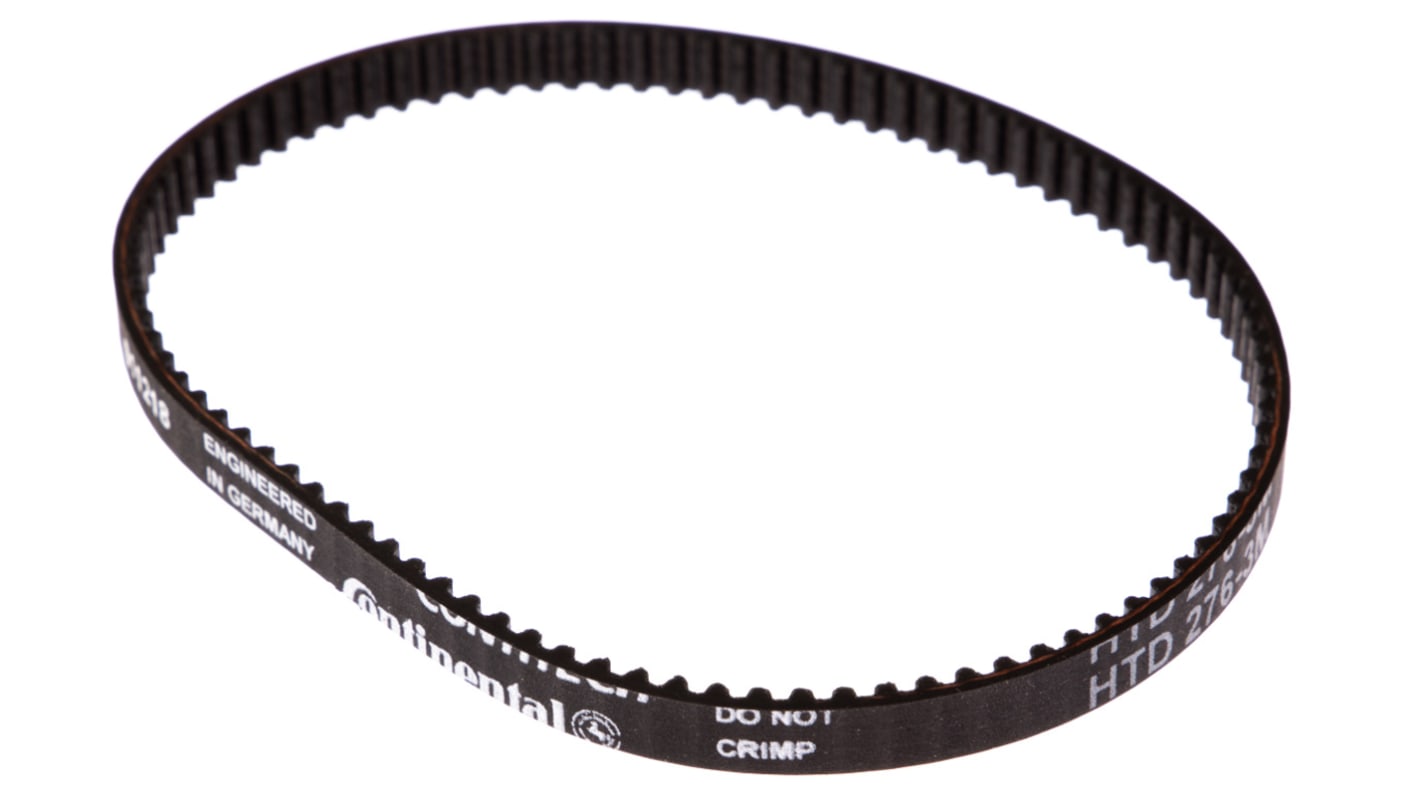

Contitech HTD Timing Belt
The Contitech HTP (High Torque Power) timing belt (synchronous) has a curved tooth profile, providing a positive drive by the meshing of belt teeth with the grooves of a relating timing belt pulley. The glass fibre tensile member provides high strength to transmit tensile forces and withstand shock loads with virtually no stretch. The abrasion resistant cover protects the teeth when in contact with the pulley and helps to reduce noise. The meshing of the teeth prevents belt slip and speed variations, thus ensuring perfect synchronisation and positive drive. The timing belt has a pitch of 3mm. The belt length is 276mm and the related width is 6mm. It has 92 teeth and the material used is rubber.
Features and Benefits
• Service temperature ranges between -20°C and 100°C depending on the application
• Conditionally resistant to oil
• Ozone resistant
• Suitable for tropical climates
• Resistant to aging
• Suitable for reverse flexing/reverse tensioning idlers
• Maintenance-free
• Conditionally resistant to oil
• Ozone resistant
• Suitable for tropical climates
• Resistant to aging
• Suitable for reverse flexing/reverse tensioning idlers
• Maintenance-free
Applications
• Typewriters
• Heavy industrial machinery
• Engine application
• Heavy industrial machinery
• Engine application
Specifications
Attribute | Value |
---|---|
Length | 276mm |
Width | 6mm |
Pitch | 3mm |
Number of Teeth | 92 |
Material | Rubber |
Maximum Speed | 50m/s |
Tooth Height | 1.1mm |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +100°C |
