SKF PHG 510-L-075 Timing Belt, 136 Teeth, 1295.4mm Length, 19.05mm Width
- RS Stock No.:
- 586-428
- Mfr. Part No.:
- PHG 510-L-075
- Brand:
- SKF
Subtotal (1 pack of 5 units)*
£57.93
(exc. VAT)
£69.52
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £57.93 | £11.586 |
*price indicative
- RS Stock No.:
- 586-428
- Mfr. Part No.:
- PHG 510-L-075
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Length | 1295.4mm | |
| Width | 19.05mm | |
| Pitch | 9.525mm | |
| Number of Teeth | 136 | |
| Profile | L | |
Select all | ||
|---|---|---|
Brand SKF | ||
Length 1295.4mm | ||
Width 19.05mm | ||
Pitch 9.525mm | ||
Number of Teeth 136 | ||
Profile L | ||
- COO (Country of Origin):
- CN

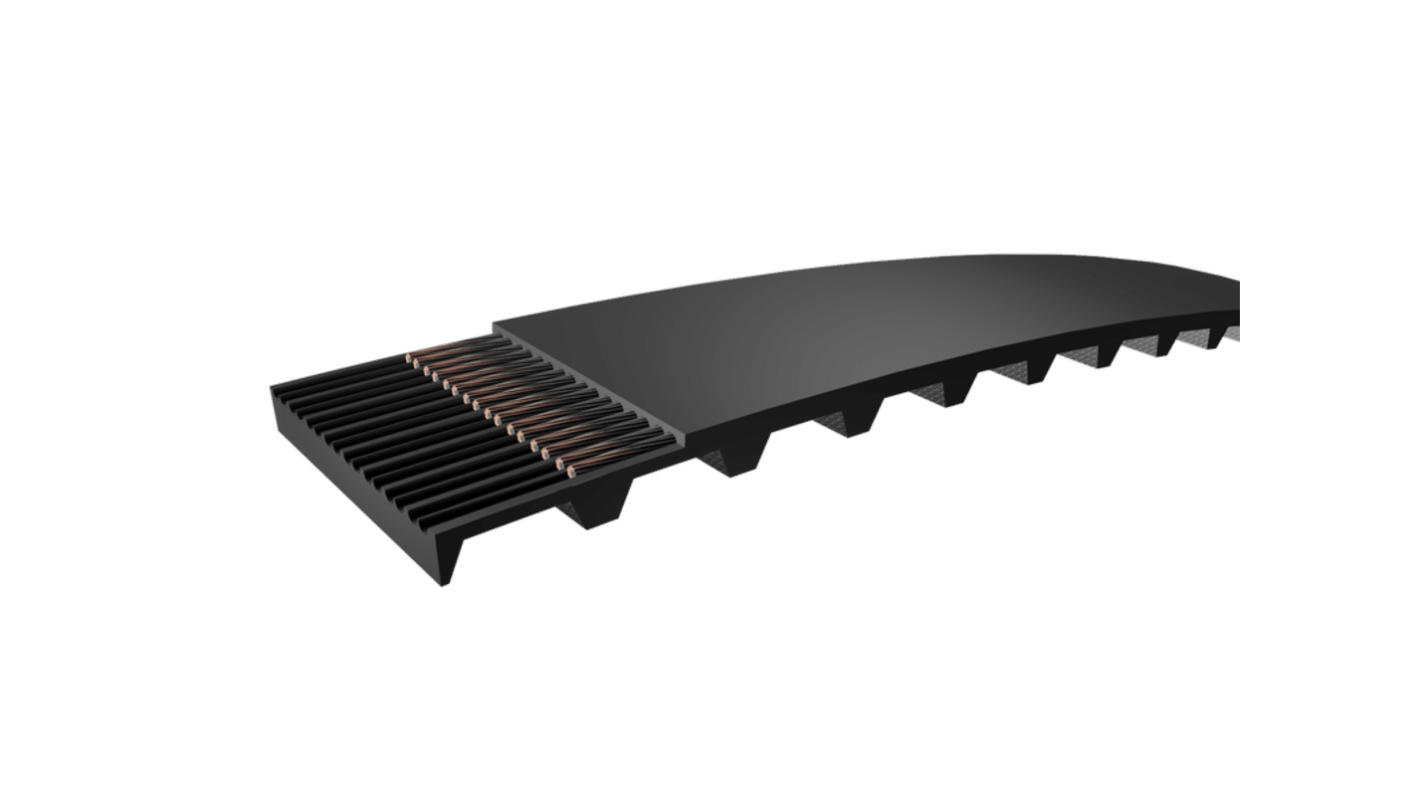

The SKF Classical timing belt provide a very efficient and cost-effective method for transmitting power from prime movers to driven machines. Classical timing belts have teeth that interlock with the corresponding grooves on the pulleys to ensure a constant speed ratio. The low stretch glass fibre tensile cords guarantee excellent dimensional stability. The oil and heat resistant neoprene rubber cushion provides high shear resistance.
Synchronous operation with no slippage
Excellent dimensional stability
Oil and ozone resistant
Heat resistant
Suitable for tropical climates
Reduced energy consumption and increased mean time between failures
Excellent dimensional stability
Oil and ozone resistant
Heat resistant
Suitable for tropical climates
Reduced energy consumption and increased mean time between failures
