OPTIBELT 325 5MHP 25 Timing Belt, 65 Teeth, 325mm Length, 25mm Width
- RS Stock No.:
- 212-949
- Mfr. Part No.:
- 325 5MHP 25
- Brand:
- OPTIBELT
Subtotal (1 unit)*
£13.97
(exc. VAT)
£16.76
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 7 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £13.97 |
*price indicative
- RS Stock No.:
- 212-949
- Mfr. Part No.:
- 325 5MHP 25
- Brand:
- OPTIBELT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OPTIBELT | |
| Length | 325mm | |
| Width | 25mm | |
| Pitch | 5mm | |
| Number of Teeth | 65 | |
| Profile | 5MHP | |
| Material | Rubber | |
| Series | OMEGA HP | |
| Tooth Height | 1.9mm | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +100°C | |
Select all | ||
|---|---|---|
Brand OPTIBELT | ||
Length 325mm | ||
Width 25mm | ||
Pitch 5mm | ||
Number of Teeth 65 | ||
Profile 5MHP | ||
Material Rubber | ||
Series OMEGA HP | ||
Tooth Height 1.9mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +100°C | ||
- COO (Country of Origin):
- DE

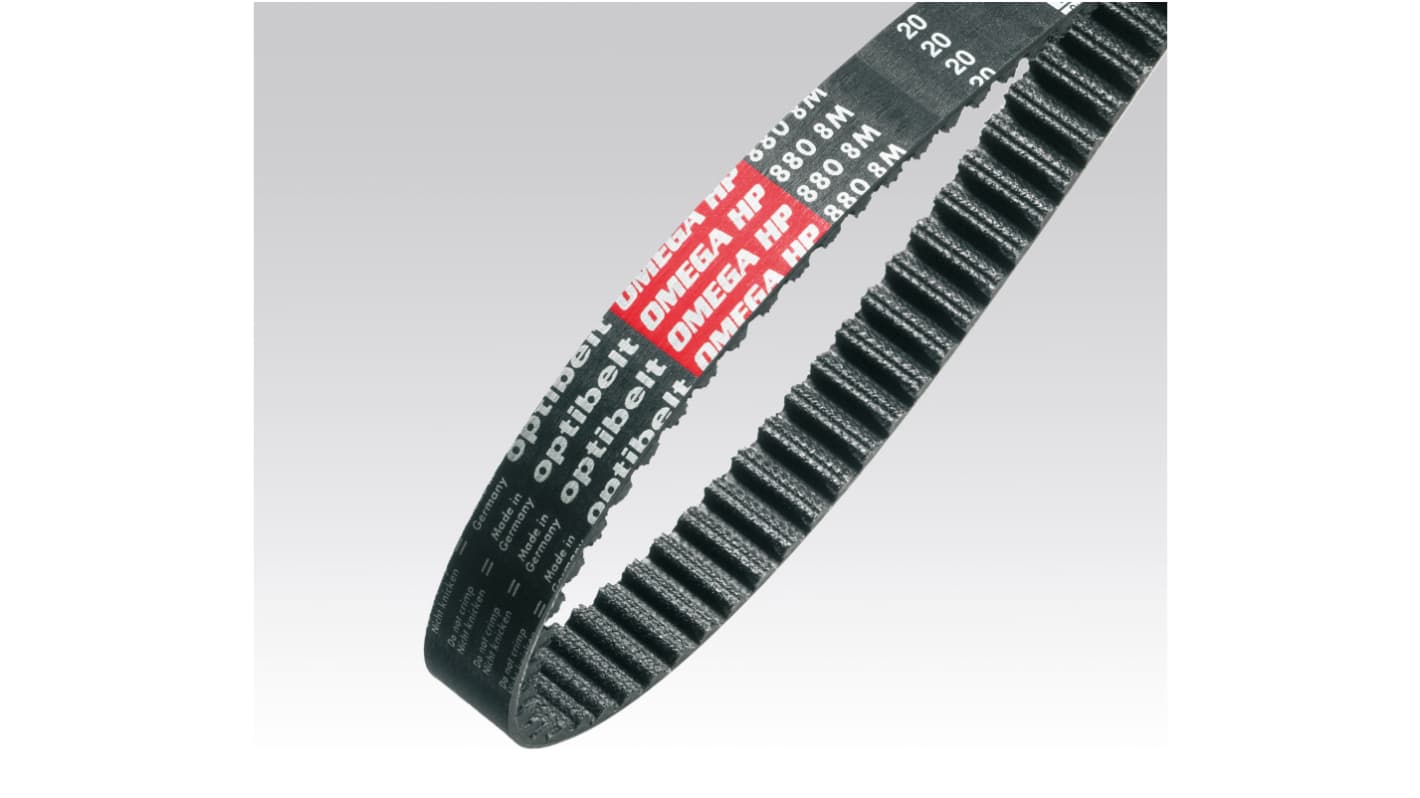

The optibelt OMEGA HP high performance timing belt was especially developed for heavily loaded, high speed drives. Improved materials and highly developed process engineering are the basis for this very high performance level. Faster, stronger, more compact that's how the new optibelt OMEGA HP presents itself. A timing belt to meet the highest demands.
High precision
For HTD and RPP pulleys
Profiles 8MHP and 14MHP and are electrically conductive
Up to two times the power transmission capability of standard OMEGA
Abrasion resistant fabric with low friction and shear resistant teeth
Fiberglass cord
For HTD and RPP pulleys
Profiles 8MHP and 14MHP and are electrically conductive
Up to two times the power transmission capability of standard OMEGA
Abrasion resistant fabric with low friction and shear resistant teeth
Fiberglass cord
