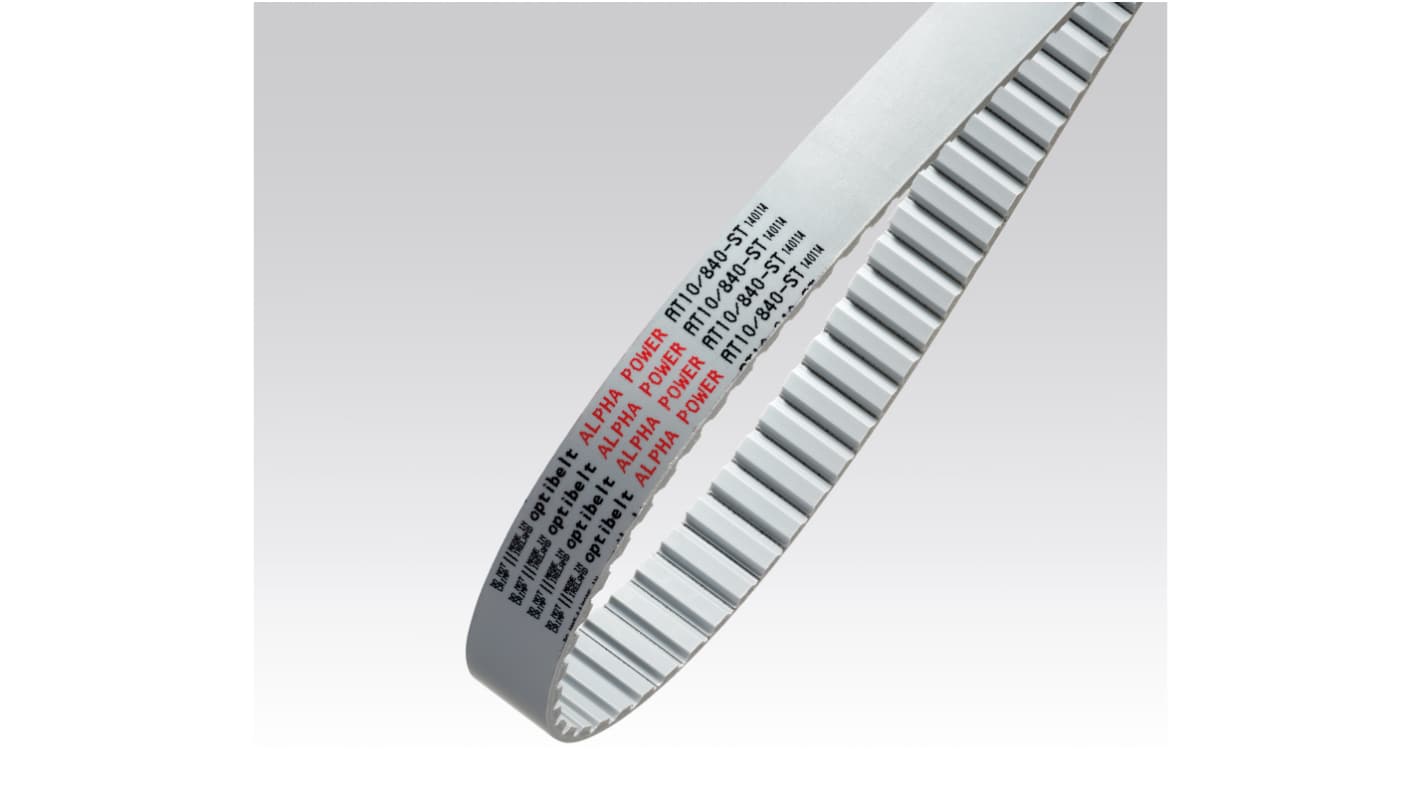

OPTIBELT Timing Belt, 75 Teeth, 375mm Length, 12mm Width
- RS Stock No.:
- 178-906
- Mfr. Part No.:
- 12 T5 / 375 AP
- Brand:
- OPTIBELT
Subtotal (1 unit)*
£13.00
(exc. VAT)
£15.60
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £13.00 |
*price indicative
- RS Stock No.:
- 178-906
- Mfr. Part No.:
- 12 T5 / 375 AP
- Brand:
- OPTIBELT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OPTIBELT | |
| Length | 375mm | |
| Width | 12mm | |
| Pitch | 5mm | |
| Number of Teeth | 75 | |
| Profile | T5 | |
| Material | Polyurethane | |
| Series | ALPHA POWER | |
| Tooth Height | 1.2mm | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +80°C | |
Select all | ||
|---|---|---|
Brand OPTIBELT | ||
Length 375mm | ||
Width 12mm | ||
Pitch 5mm | ||
Number of Teeth 75 | ||
Profile T5 | ||
Material Polyurethane | ||
Series ALPHA POWER | ||
Tooth Height 1.2mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- IE
The Optibelt powerful ALPHA POWER timing belts are the result of consistent further development. The extensive experience gained with the ALPHA TORQUE timing belt was brought to bear on this belt generation. The optimised interplay of the polyurethane, with a hardness of 88 Shore A, and the steel cord ensures that the optibelt ALPHA POWER offers an extremely economical solution for a particularly wide range of applications.
Maintenance free
By enabling a more compact drive design the optibelt ALPHA POWER cuts costs
High performance
Casted and endless
Permits more compact drive solutions
Up to 30% higher power ratings compared with ALPHA TORQUE
By enabling a more compact drive design the optibelt ALPHA POWER cuts costs
High performance
Casted and endless
Permits more compact drive solutions
Up to 30% higher power ratings compared with ALPHA TORQUE
