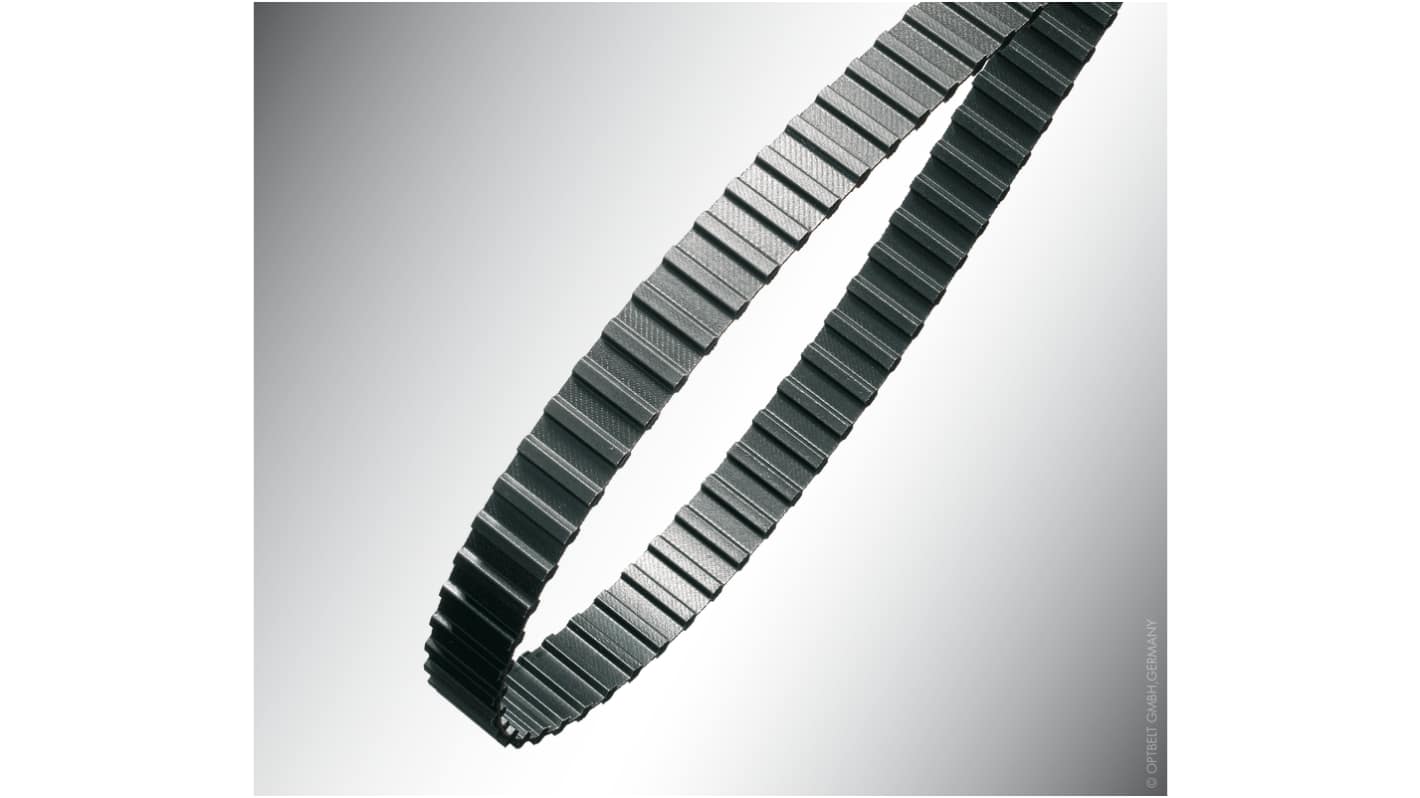

OPTIBELT 322 DL 100 Double Sided Timing Belt, 86 Teeth, 819.2mm Length, 25.4mm Width
- RS Stock No.:
- 176-935
- Mfr. Part No.:
- 322 DL 100
- Brand:
- OPTIBELT
Subtotal (1 unit)*
£64.79
(exc. VAT)
£77.75
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 19 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £64.79 |
*price indicative
- RS Stock No.:
- 176-935
- Mfr. Part No.:
- 322 DL 100
- Brand:
- OPTIBELT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OPTIBELT | |
| Length | 819.2mm | |
| Width | 25.4mm | |
| Pitch | 0.375in | |
| Number of Teeth | 86 | |
| Profile | DL | |
| Material | Rubber | |
| Series | ZR D | |
| Tooth Height | 1.9mm | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +100°C | |
Select all | ||
|---|---|---|
Brand OPTIBELT | ||
Length 819.2mm | ||
Width 25.4mm | ||
Pitch 0.375in | ||
Number of Teeth 86 | ||
Profile DL | ||
Material Rubber | ||
Series ZR D | ||
Tooth Height 1.9mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +100°C | ||
- COO (Country of Origin):
- DE
The Optibelt ZR rubber double timing belts has most salient features that they have high quality neoprene compounds, the extremely flexible tension cords made of glass fibre and the abrasion-resistant protective fabric.
A certain level of oil and heat resistance
Cold resistance
Wear resistant fabric
Manufactured according to ISO 5296
Cold resistance
Wear resistant fabric
Manufactured according to ISO 5296
