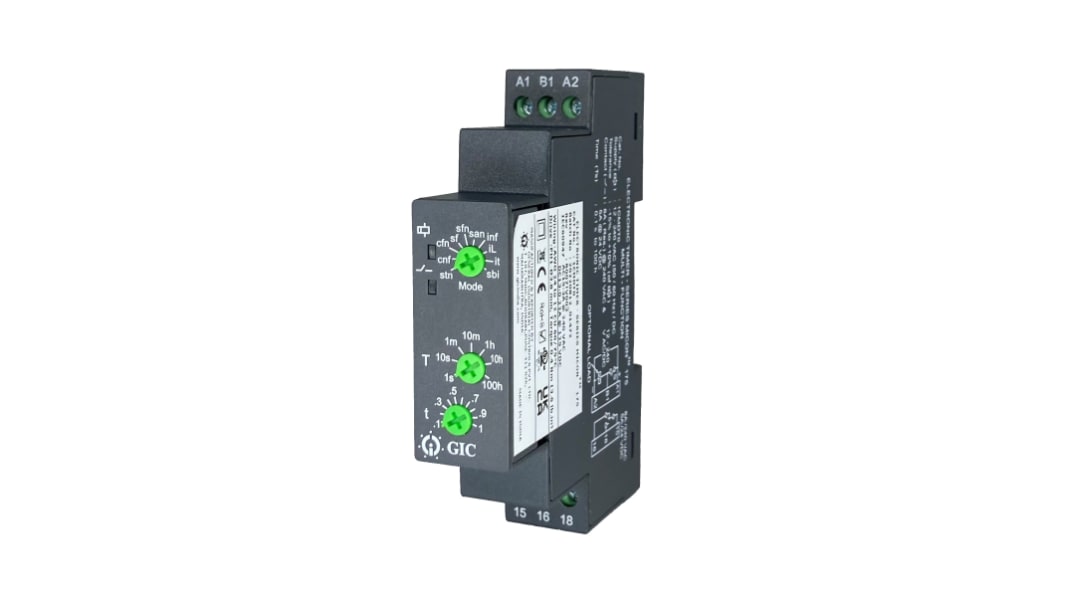

GIC 1CJ Series DIN Rail Timer Relay, 1-Contact, 240 V dc 12 V ac, 240 V ac, 0.1 s to 100 h, Multifunction-Function, SPDT

RS Stock No.:: 818-4563
Mfr. Part No.:: 1CMDT0
Brand:: GIC

GIC 1CJ Series DIN Rail Timer Relay, 1-Contact, 240 V dc 12 V ac, 240 V ac, 0.1 s to 100 h, Multifunction-Function, SPDT

View all Timer Relays

Bulk discount available

Subtotal (1 unit)*

£34.02

(exc. VAT)

£40.82

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

174 unit(s) ready to ship
Plus 9 unit(s) ready to ship from another location
Plus 192 unit(s) shipping from 18 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£34.02
5 - 9	£32.99
10 +	£32.28

*price indicative

RS Stock No.:: 818-4563
Mfr. Part No.:: 1CMDT0
Brand:: GIC

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	GIC
	Product Type	Timer Relay
	Function	Multifunction
	Mount Type	DIN Rail
	Time Range	0.1 s to 100 h
	Number of Contacts	1
	Number of Timer Functions	Multifunction
	Contact Configuration	SPDT
	IP Rating	IP40
	Supply DC Voltage	240 V dc
	Contact Current	6A
	Minimum Operating Temperature	-10°C
	Timing Adjustment	Screwdriver Slot
	Supply AC Voltage	12 V ac, 240 V ac
	Maximum Operating Temperature	60°C
	Terminal Type	Screw
	Width	18 mm
	Height	65mm
	Standards/Approvals	RoHS, CE
	Length	85mm
	Series	1CJ

	Select all
	Brand GIC
	Product Type Timer Relay
	Function Multifunction
	Mount Type DIN Rail
	Time Range 0.1 s to 100 h
	Number of Contacts 1
	Number of Timer Functions Multifunction
	Contact Configuration SPDT
	IP Rating IP40
	Supply DC Voltage 240 V dc
	Contact Current 6A
	Minimum Operating Temperature -10°C
	Timing Adjustment Screwdriver Slot
	Supply AC Voltage 12 V ac, 240 V ac
	Maximum Operating Temperature 60°C
	Terminal Type Screw
	Width 18 mm
	Height 65mm
	Standards/Approvals RoHS, CE
	Length 85mm
	Series 1CJ

COO (Country of Origin):: IN

GIC Multi-function Timer Relay

The GIC multi-function timer relay is solid-state, compact equipment with high precision. It performs different delay functions like accumulative delay on signal, cyclic off/ on, impulse on/ off, leading-edge bi-stable, leading-edge impulse, signal off/ on, signal on/ OFF delay, and trailing edge impulse off in the range of 0.1 seconds to 100 hours. This relay has a wide range of programming features that provide the user with a comprehensive range of timing functions to suit a wide variety of applications. Due to the highly versatile voltage range, this timer relay can be installed into new and existing applications in an extremely hassle free way. Its affordability and high performance make it ideal for a wide range of applications in process control environments.

Features and Benefits

Fine adjustment of the selected time range

1C/O SPDT contact configuration with relay output 8A

Multi-voltage range is 12VAC to 240VAC and 12VDC to 240VDC

Covers a wide AC and DC voltage range for added installation flexibility

Time delay is reset of 200ms

10 different functions available

LED Indications for power and relay status

ON time and OFF time settings can be independently set for further customisation for your application

Low power consumption helps to keep running costs down

Applications

Textiles

Chemical industries

Mining

Irrigation

Raw material handling

Food and beverages

Industrial process control

Certifications

UL approved

IP20 rated

CE certified

cULus approved

IEC 61000-3-2

ESD IEC 61000-4-2

IEC 61000-4-3

IEC 61000-4-4

IEC 61000-4-5

IEC 61000-4-6

IEC 61000-4-11

IEC 61000-4-29

CISPR 14-1

IEC 60068-2-1

IEC 60068-2-2

IEC 60068-2-6

IEC 60068-2-27
